1-21
IM MW100-01E
Explanation of Functions
1
Saving Data to the CF Card
Save Location
Measured/computed data, thinned data, recording logs, alarm summaries, and settings
can be saved on the CF card.

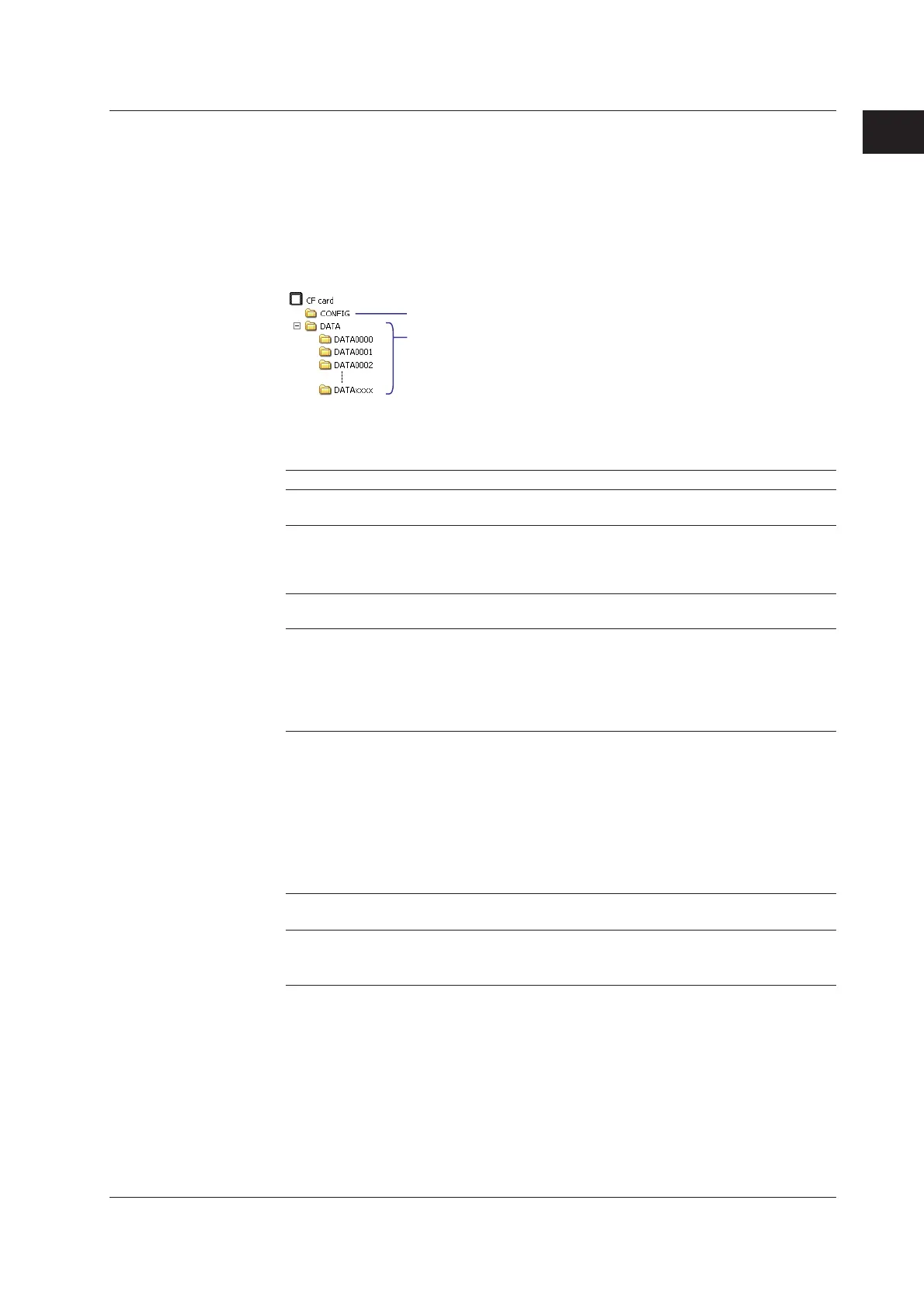

• Folder Structure
The structure of the data save folder is as shown below.
Settings folder
Save folders for measured, computed, and thinned data
The DATA folder includes all folders up to DATAxxxx
Folders are created each time recording starts from DATA0000 to DATAxxxx.
"xxxx" is automatically generated from 0000 to 9999
* When the data save folder is set to Auto
• Setting the folder
You can select the method of creating the data save folder from the following:
Type Folder Name Display Example
Auto DATA+4-digit serial number DATA0000 to DATA9999. The serial number is auto
numbered.
Partial 4 arbitrary characters + ABCD0000 to ABCD9999. Arbitrary alphanumeric
4-digit serial number characters (1 to 4 characters) and serial number.
You can arbitrarily set the start number of the sequence.
The serial number is automatically updated.
Free 8 arbitrary characters ABCDEFGH, arbitrary alphanumeric characters (1 to 8
characters)
Date Date/time + 93012540: Created at 12 O'clock 54 minutes on September
1-digit serial number 30th. The serial number is auto numbered.
Consists of the month*, day, hour, minute, and serial
number.
* October, November, and December are denoted as X, Y,
and Z, respectively.
Saving Measured Data and Computed Data
Files can be created for every measurement group. An individual file is created for
computed data. For each measurement group, you can select whether or not to perform
the save operation.
The table below shows the approximate interval over which data can be saved to the CF
card when one measurement interval is used.
Save Channel Measurement Interval Capacity of the CF Card
128 MB 512 MB
10 ch 10 ms 8.8 hours 35.3 hours
100 ms 3.7 days 14.8 days
1 s 37 days 148 days
Saving Thinned Data
Data is saved at a specified thinning interval. Thinning time:
4, 5, 10, 20, or 30 seconds, or 1, 2, 3, 4, 5, 10, 20, or 30 minutes, or 1 hour.
Select a thinning time from the above choices.
1.3 Functions of the Main Module
To Next Page
