YOKOGAWA MW100 User Manual

3-39
IM MW100-01E
Setting and Data acquisiton
3
Meas. Mode

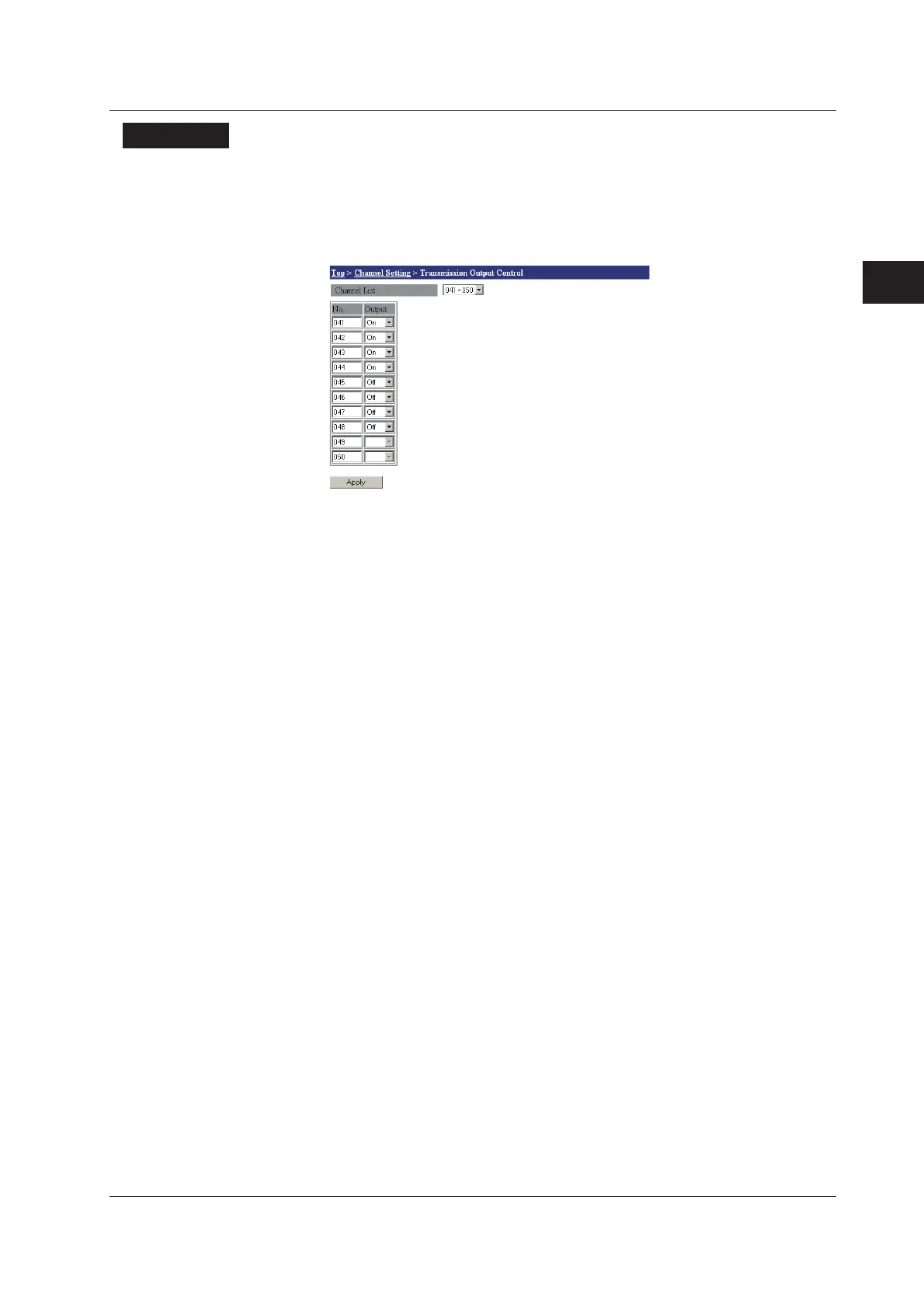

Transmission Output Control
Turning Transmission Output On and Off for Analog Output/PWM Output
This is set if Trans is selected for the output action in the output range settings.
1.
From the top screen, click Channel Setting > Transmission Output Control.
2.
Select the channel group you wish to set from the Channel List list.
3.
Select On or Off in the Output list of the channel number you wish to set.
4.
Click the Apply button. Starts transmission output on channels set to On.
3.9 Analog/PWM Output Settings
