YOKOGAWA MW100 User Manual

3-23
IM MW100-01E
Setting and Data acquisiton
3
3.5 Setting Measurement Conditions
( Measurement Channel Settings)
Setting Mode
Measurement Channel Settings
You can set the input type, range, span, and computation (linear scaling and differential
computation between channels).
The selectable input type, range, and other settings can differ depending on the module.
For details, see the explanation of the functions of individual modules in chapter 1,
“Explanation of Functions,” or chapter 5, “Specifications.”
Setting the Input Range
1.

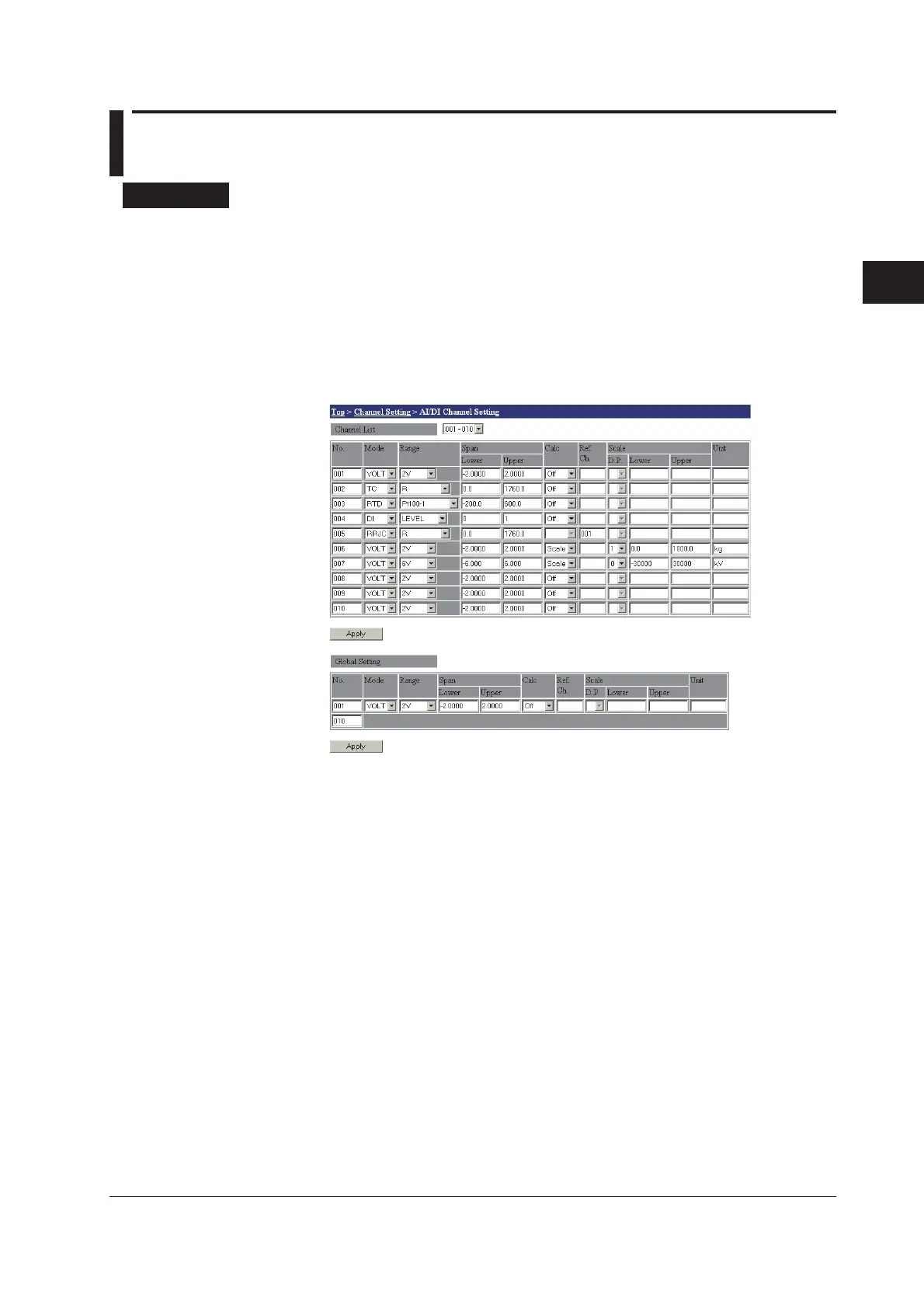

From the top screen, click Channel Setting > AI/DI Channel Setting.
2.
Select the channel group you wish to set from the Channel List list.
Setting the Input Mode
3.
Select the input type from the Mode list.
Setting the Measurement Range
4.
Select the measurement range from the Range list.
Setting the Measurement Span
Determines the actual measurement range from the measurable range.
5.
Enter the lower and upper limit of Span in the Lower or Upper boxes under Span.
Remote RJC (RRJC) Reference Channel Setting
This is required when RRJC is selected for the input type.
6.
Enter the remote RJC reference channel number in the Ref. Ch. box.
7.
Click the Apply button. The setting changes take effect.
