YOKOGAWA MW100 User Manual

1-35
IM MW100-01E
Explanation of Functions
1

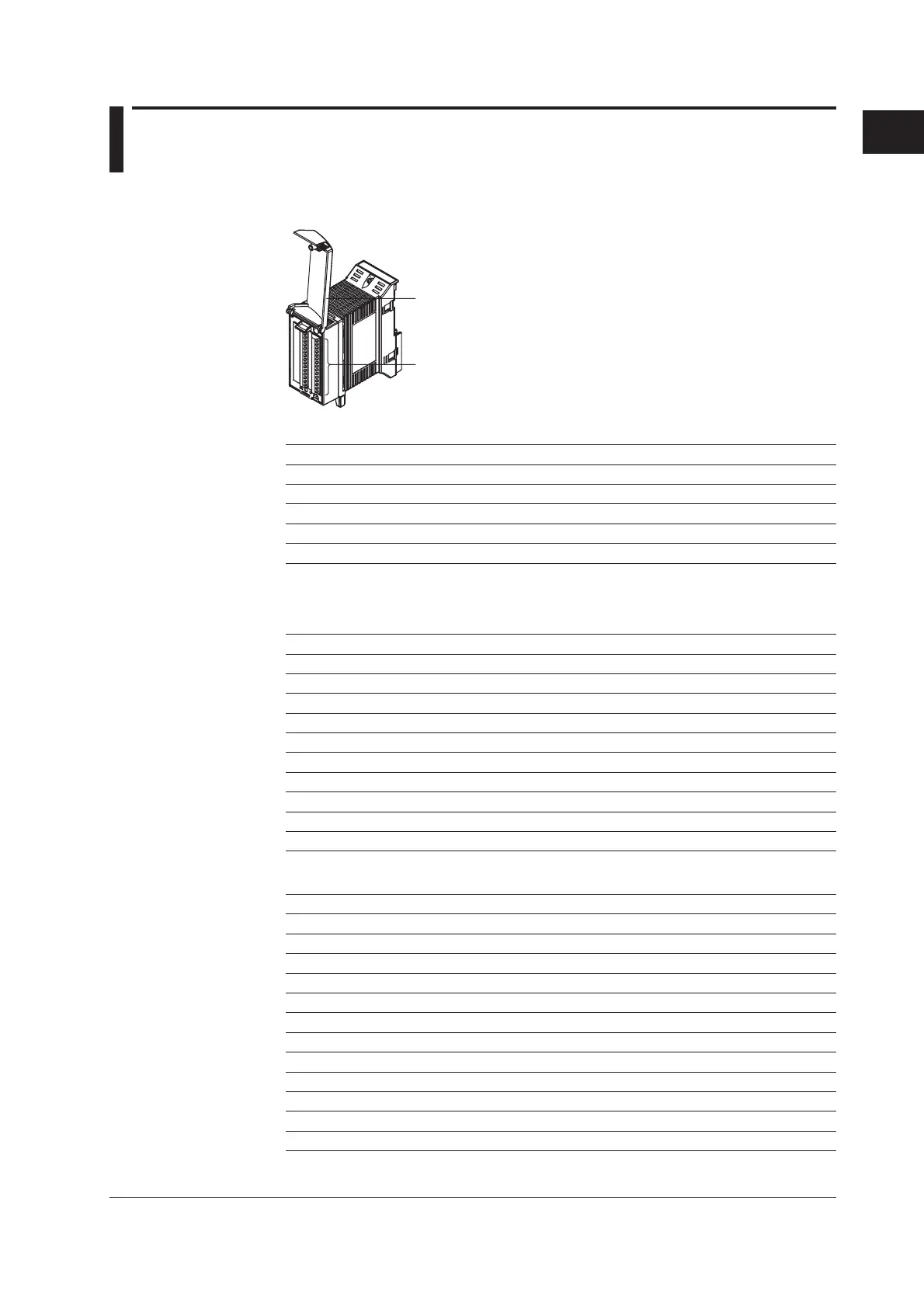

1.6 Functions of the 6-CH, Medium-Speed
Four-Wire RTD Resistance Input Module
This module allows up to six inputs of DC voltage, thermocouple, 4-wire RTD, 4-wire
resistance, and digital input (DI) at a minimum measurement interval of 100 ms.
Input terminal (clamp terminal)
Terminal cover
Measurement Input Types
Measurement Input Type Notation
No measurement SKIP
DC voltage VOLT
Resistance temperature detector RTD
Resistance OHM
DI DI
Measurement Range
DC Voltage
Measurement Range Notation Rated Measurement Range
20 mV 20 mV –20.000 to 20.000 mV
60 mV 60 mV –60.00 to 60.00 mV
200 mV 200 mV –200.00 to 200.00 mV
2 V 2 V –2.0000 to 2.0000 V
6 V 6 V –6.000 to 6.000 V
20 V 20 V –20.000 to 20.000 V
100 V 100 V –100.00 to 100.00 V
60 mV (high resolution) 60 mVH 0.000 to 60.000 mV
1 V 1 V –1.0000 to 1.0000 V
6 V (high resolution) 6 VH 0.0000 to 6.0000 V
Resistance Temperature Detector (1 mA)
Measurement Range Notation Rated Measurement Range
Pt100 Pt100-1 –200.0 to 600.0°C
JPt100 JPt100-1 –200.0 to 550.0°C
Pt100 (high resolution) Pt100-1H –140.00 to 150.00°C
JPt100 (high resolution) JPt100-1H –140.00 to 150.00°C
Ni100 SAMA Ni100SAMA –200.0 to 250.0°C
Ni100 DIN Ni100DIN –60.0 to 180.0°C
Ni120 Ni120 –70.0 to 200.0°C
Pt50 Pt50 –200.0 to 550.0°C
Cu10 GE Cu10GE –200.0 to 300.0°C
Cu10 L&N Cu10LN –200.0 to 300.0°C
Cu10 WEED Cu10WEED –200.0 to 300.0°C
Cu10 BAILEY Cu10BAILEY –200.0 to 300.0°C
