5.12 10-CH, Medium-Speed Digital Output Module
Specifications
Style number: S1
Number of outputs: 10
Contact mode: A contact (SPST)
Update interval: 100 ms minimum (not synchronized to the measurement interval)
Contact capacity: 250 VDC/0.1 A, 250 VAC/2 A, or 30 VDC/2A (resistance load)
Contact life*: 100,000 times at rated load (typical)
20,000,000 times at no load (typical)
* The contact life varies depending on the load conditions and the
environment in which it is used.
Insulation resistance: Between output terminals and earth terminal: 20 MΩ or more (500
VDC)
Between output terminals: 20 MΩ or more (500 VDC)
Withstand voltage: 2300 VAC (50/60 Hz) for one minute between the output terminal
and earth
2300 VAC (50/60 Hz) for one minute between output terminals
Maximum common-mode voltage:
250 VACrms (50/60 Hz)
Power consumption: Approx. 2 W (when all relays are turned ON)
Terminal type: Clamp, attached and removed in units of 5 channels
Applicable wire size: 0.08 to 2.5 mm
2
(AWG28 to 12)
External dimensions: Approx. 57 (W) × 131 (H) × 151 (D) mm (including the terminal
cover)
Weight: Approx. 0.5kg.
General Specifications
Operating temperature range: –20 to 50°C
Operating humidity range: 20 to 80% RH for –20 to 40 °C
10 to 50% RH for 40 to 50 °C

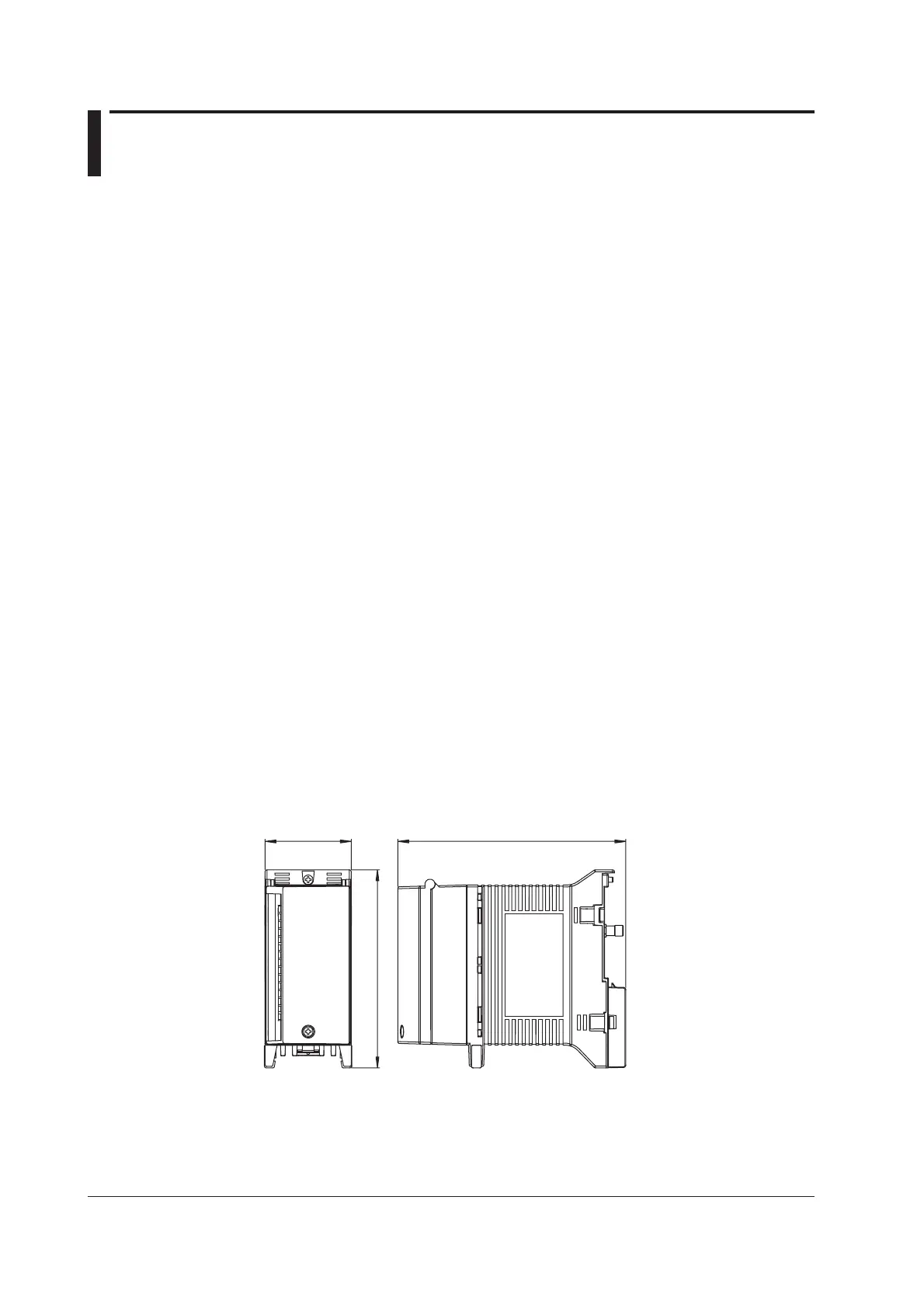

External Dimensions
Units: mm
57
131
150.8
If not specified, the tolerance is ±3%. However, in cases of less than 10 mm, the
tolerance is ±0.3 mm.
