3-19
IM MW100-01E
Setting and Data acquisiton
3
3.4 Setting Acquisition Conditions for Measured/Computed Data
Computation Operation Settings

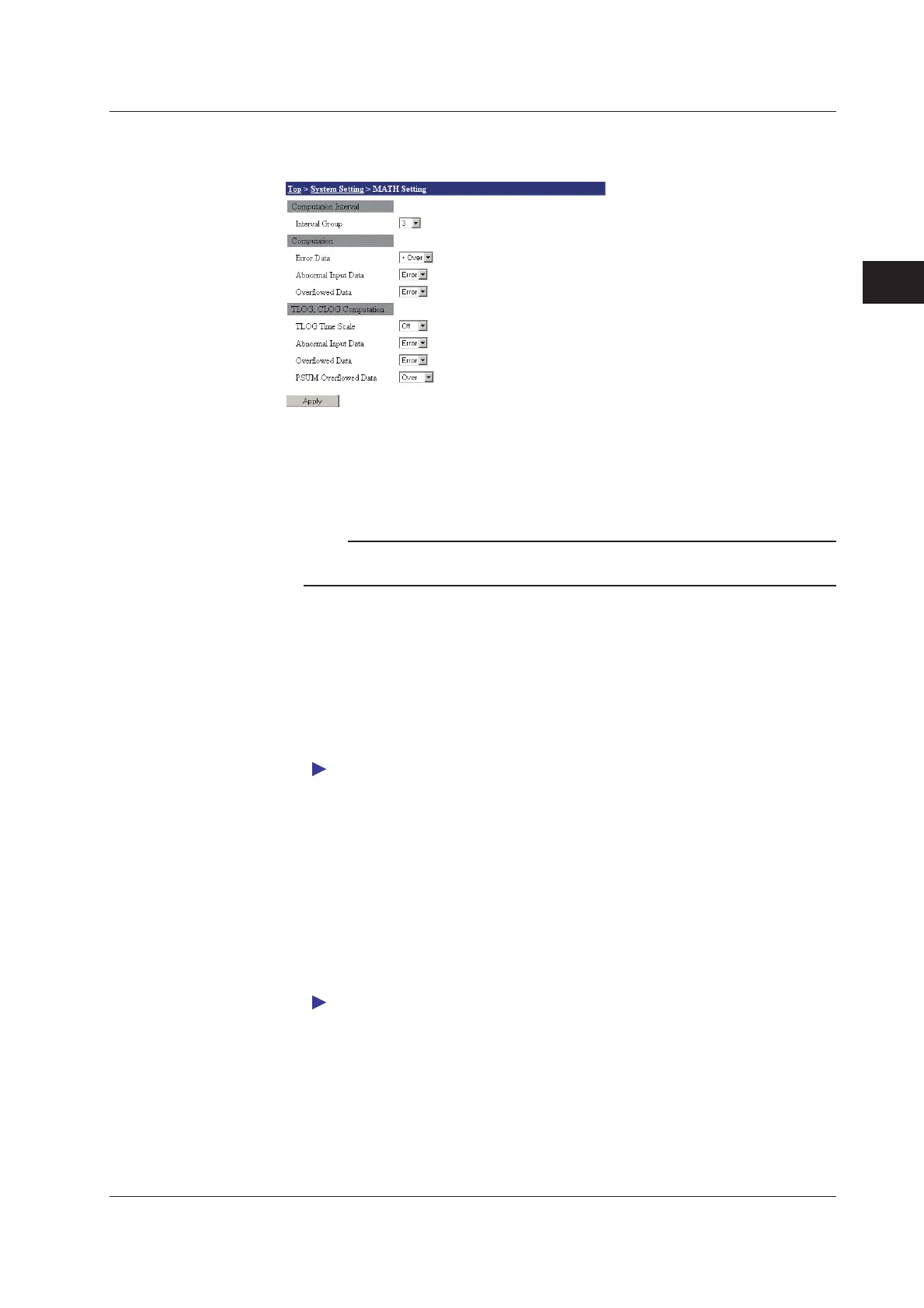

From the top screen, click System Setting > MATH Setting.
MATH Interval Settings
1.
In the Interval Group list, select the interval group number. The measurement
interval is set to the interval assigned to the selected group number.
2.
Click the Apply button. The setting changes take effect.
Note
If multiple interval groups are specifying the same measurement interval, specify the largest
number for the interval group number that you select.
MATH Settings
In step 1, set the operation upon computation error, and in steps 2 and 3, set the
measurement input other than for TLOG/CLOG computation.
1.
Select +Over or –Over in the Computation Error Data list.
2.
Select Error (computation error) or SKIP in the Abnormal Input Data list.
3.
Select Error (Overflow value), Skip, or Limit in the Overflowed Data list.
4.
Click the Apply button. The setting changes take effect.
For a description of the data processing for computation errors, see “MATH Error Data
Processing” in section 1.13.
TLOG and CLOG Computation
Sets the operation for TLOG and CLOG computation.
1.
Select the units of integration in the TLOG Time Scale list.
2.
Select Error (computation error) or Skip in the Abnormal Input Data list.
3.
Select Error (computation error), Skip, or Limit in the Overflowed Data list.
4.
Select Over (computation stop) or Rotate in the PSUM Overflowed Data list.
5.
Click the Apply button. The setting changes take effect.
For a description of the data processing for computation errors, see “MATH Error Data
Processing” in section 1.13.
