Program Channel Settings
1.

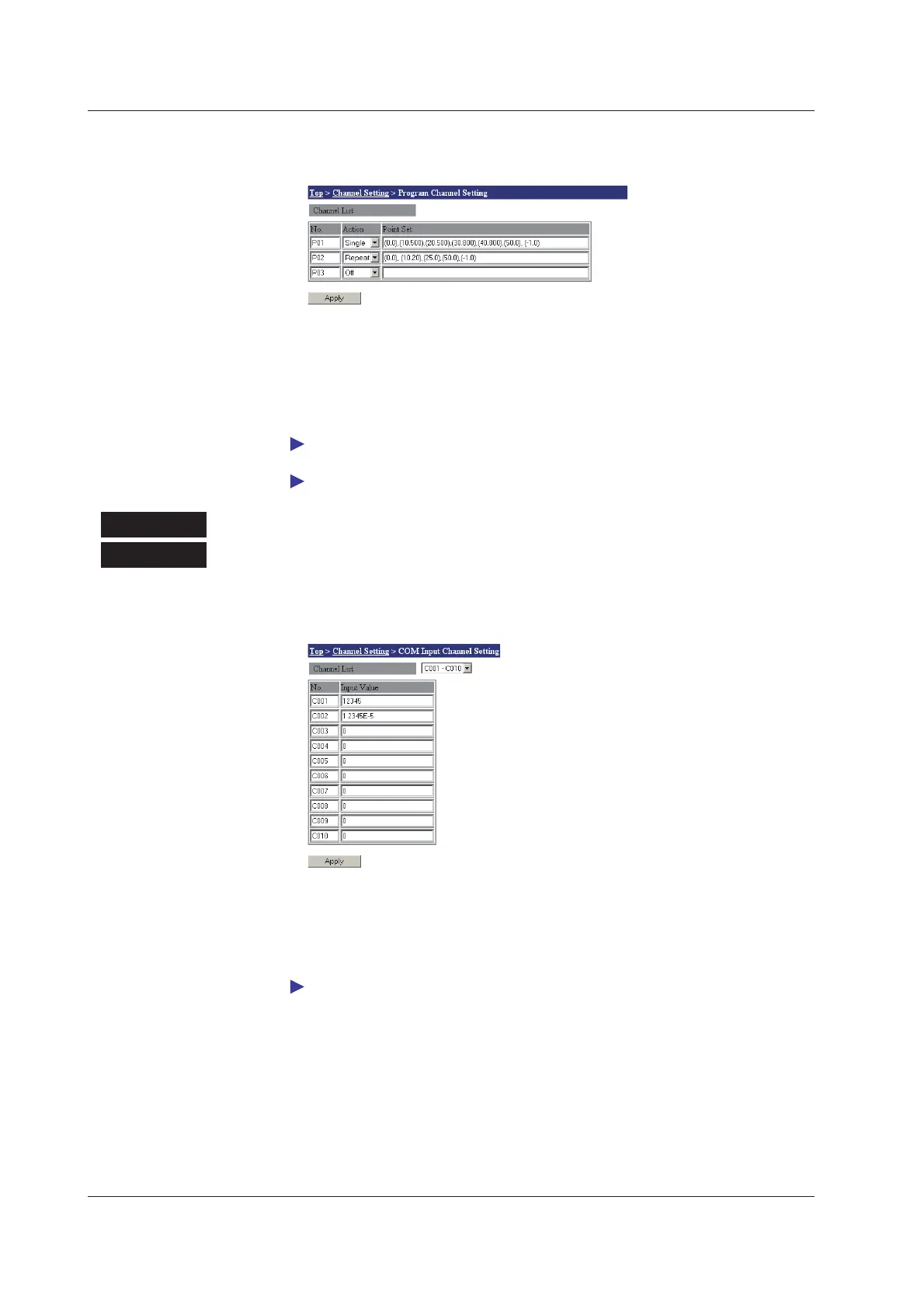

From the top screen, click Channel Setting > Program Channel Setting.
2.
Select Single or Repeat in the Action box for the program channel number you
wish to use.
3.
Enter the elapsed time and setting value in the Point Set box. For information
about formats, see section 1.13, “MATH Functions (/M1 Option).”
4.
Click the Apply button. The setting changes take effect.
For a description of the syntax of broken line data, see “MATH Reference Channels” in
section 1.13.
For a description of the broken line data, see appendix 7, “Using the Broken Line Data.”
Setting Mode
Meas. Mode
Communication Input Data Settings
1.
From the top screen, click Channel Settings > COM Input Channel Setting.
2.
Select the channel group you wish to set from the Channel List list.
3.
Enter the communication input data value in the Input Value box. For the range
of available communication input values, see chapter 5, “Specifications.”
4.
Click the Apply button. The setting changes take effect.
For the range of communication input data values, see “MATH Function Specifications (/M1
Option)” in section 5.2.
3.6 MATH Settings (MATH Channel Settings and the /M1 Option)
