YOKOGAWA MW100 User Manual

5-47
IM MW100-01E
Specification
5

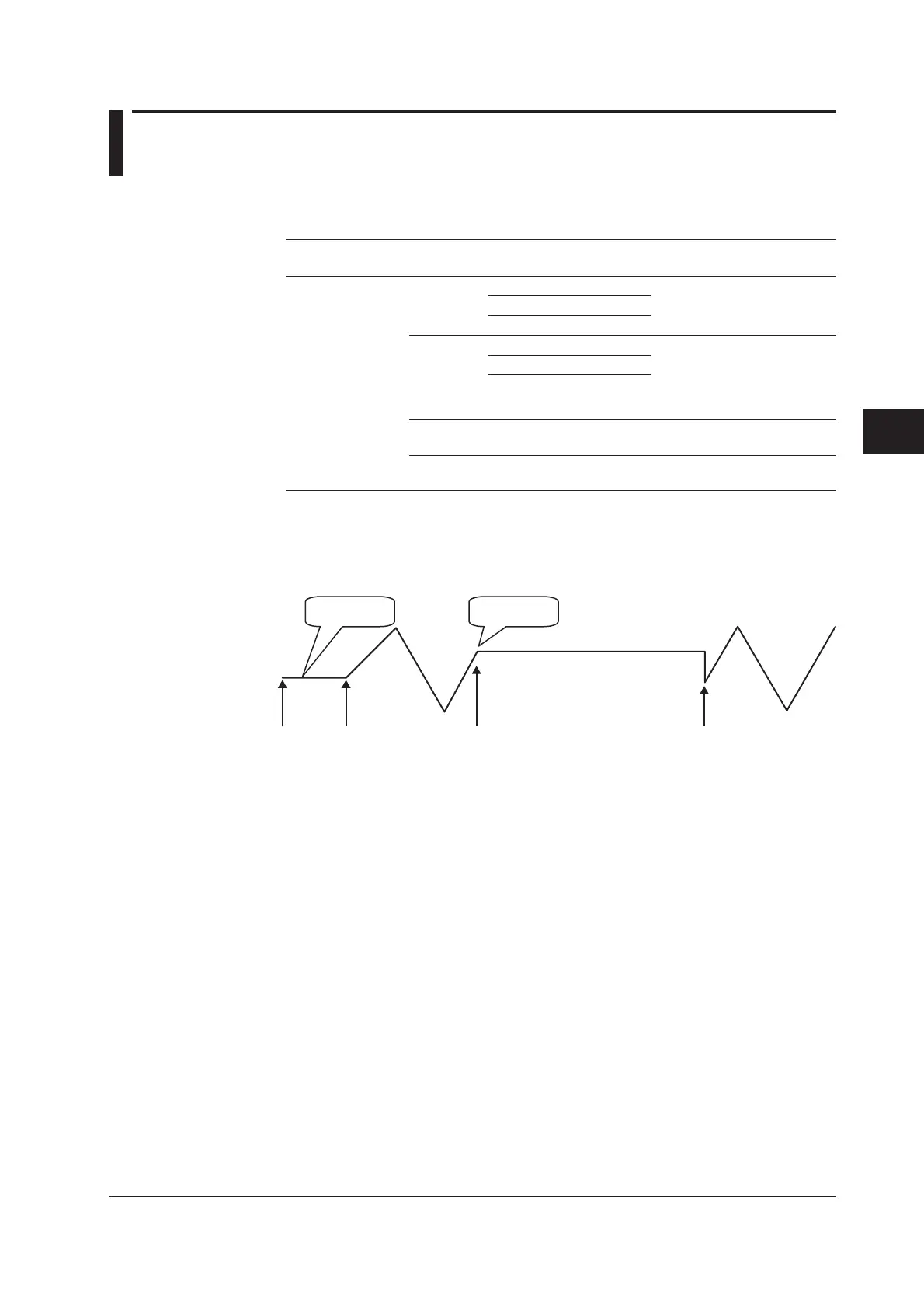

5.11 Operations Common to the 8-CH Medium-
Speed Analog Output Module and the 8-CH
Medium Speed PWM Output Module
Settings Related Specifications (by Module)
Setting channel Setting Contents Settings Remarks
(Module)
Output Channel Span AO(V) –10.000 to 10.000V — —
(AO, PWM) Setting range
AO(mA) 0.000 to -20.000 mA
PWM 0.000 to 100.000%
Preset value AO(V) –11.000 to 11.000V — Command output
Setting range
AO(mA) 0.000 to 22.000 mA
specification
PWM 0.000 to 100.000%
Max value also
same as
range on left
Setting span (minimum and maximum) Yes —
specified in reverse
Setting span (minimum, maximum) No —
same value specification
Overview of Output Operation When Setting Holding of Previous Value of
Transmission Output
Measurement
start
Measurement
stop
(or Transmission output
execute disabled)
Measurement
restarts
(or Transmission output
execute enabled)
Previous value
(held)
Previous value
Power ON
Output value
Value held
