3-40
IM MW100-01E

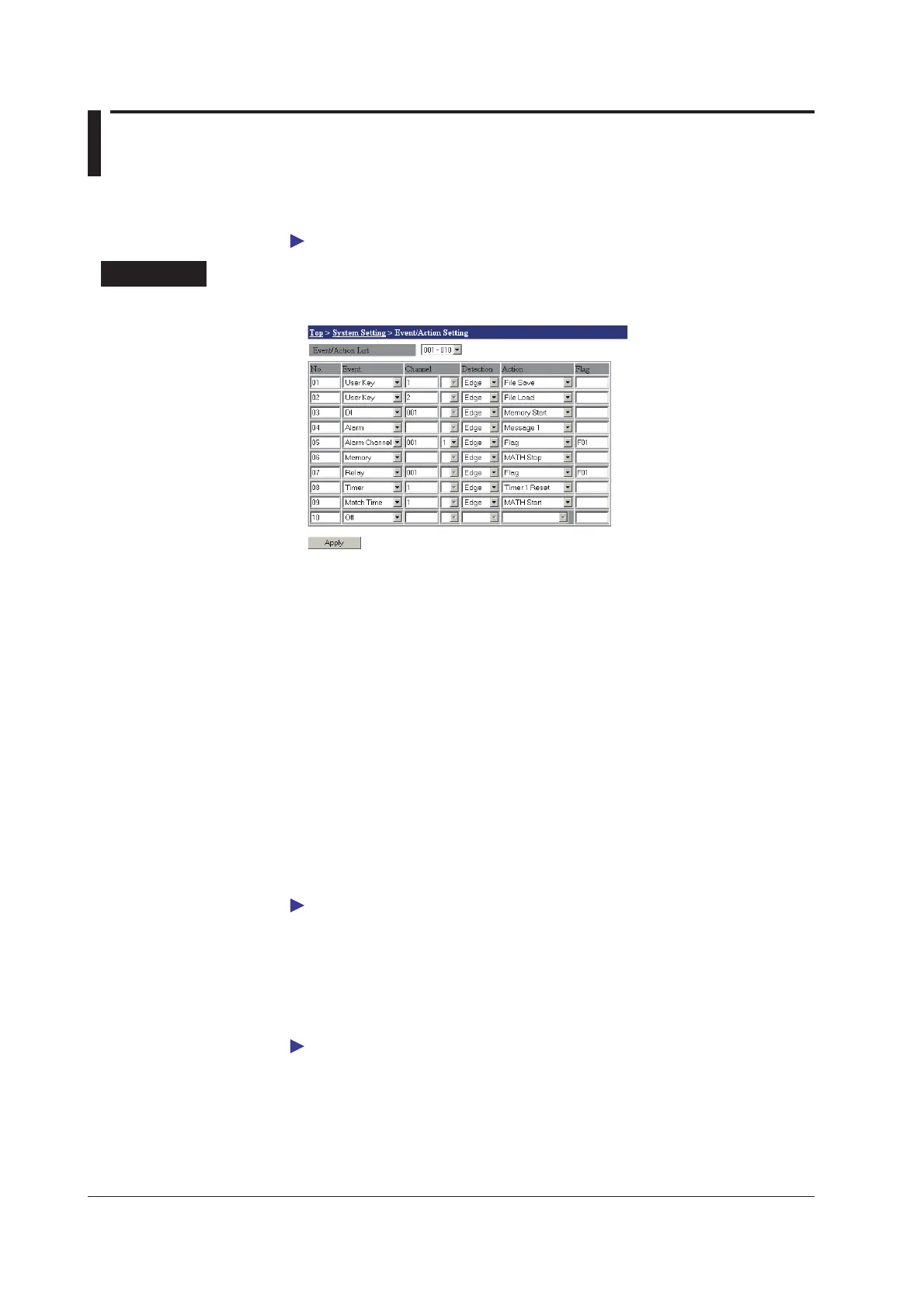

3.10 Event/Action Settings
By linking the Event function and Action function, you can control the operations of the
MW100.
For setting examples of event action, see appendix 3, “Using the Event Action.”
Setting Mode
1.
From the top screen, click System Setting > Event/Action Setting.
2.
Select the number group of the Event / Action you wish to set from the list.
Selecting the Event Type
3.
Select the event (event function) type in the Event list of the number you wish to
set. Depending on this setting, the Channel box may become enabled, meaning
that the settings in steps 2 and 3 are required.
4.
In the Channel box, enter the number (channel number, relay number, etc.) for
the event selected in the event type selection in step 1.
5.
If the event type is Alarm Channel, select the alarm level number for the event in
the Channel box.
Selecting the Event Detection Method
6.
Select the event detection method from the Detection list. The action (action
function) that can be selected varies depending on the item selected for the
detection method.
For the event types, see “Event Action Function” in section 1.3.
Selecting the Action Type
7.
Select the action (Action function) type from the Action list. If Flag is selected for
the action, the Flag box is enabled, meaning that the setting in step 8 is required.
8.
Enter a flag number in the Flag box.
For the action types, see “Event Action Function” in section 1.3.
9.
Click the Apply button. The setting changes take effect.
