YOKOGAWA MW100 User Manual

1-20
IM MW100-01E

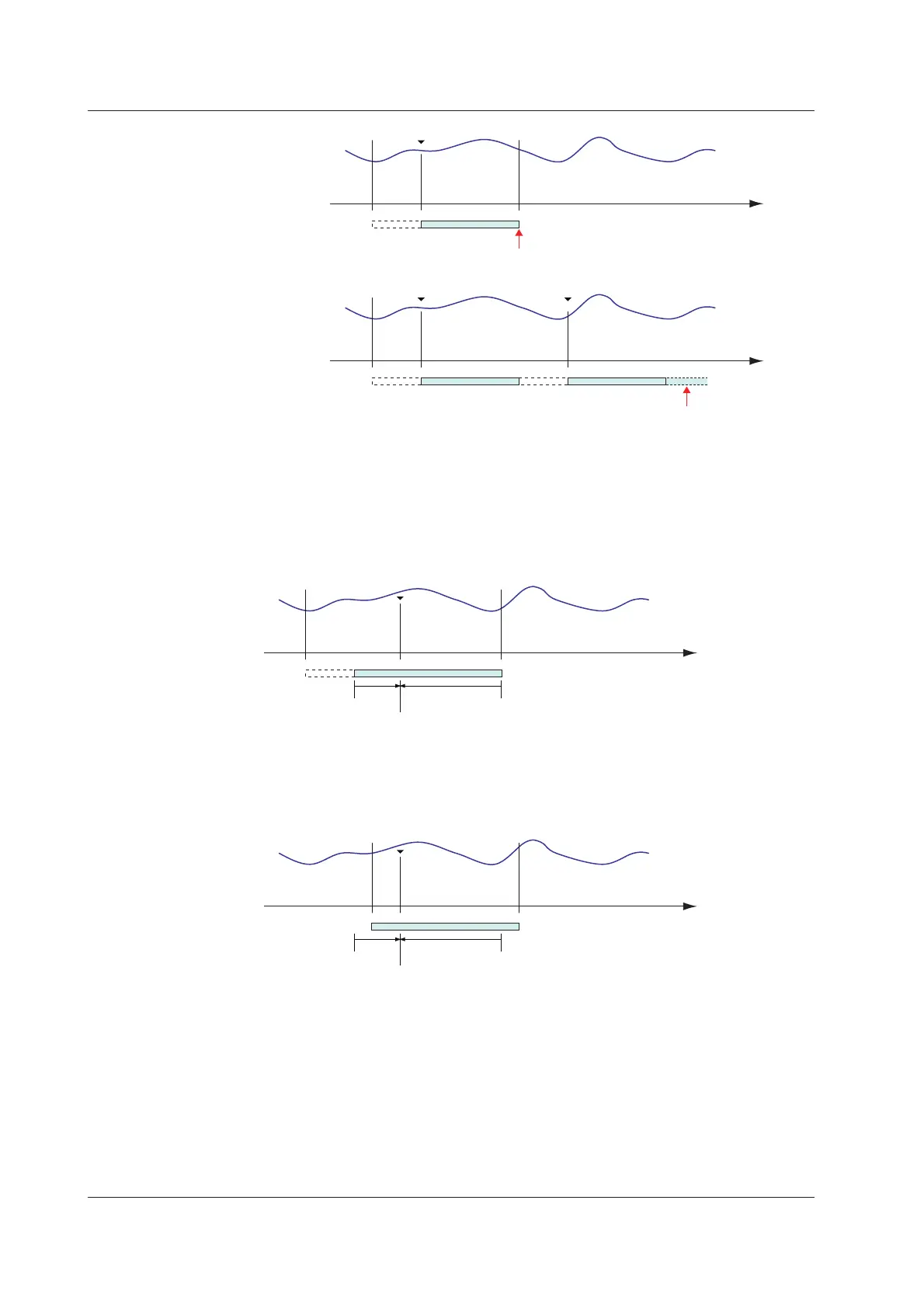

Stop recording after creating a single file
Single
Fullstop*
Rotate*
Time (s)
Start
File File
Time (s)
Start Trigger condition met Stop
File
Trigger-wait status
Trigger condition met Trigger condition met
* The condition for stopping the recording when set to Fullstop and the condition for deleting the file
when set to Rotate is the same as the condition when the recording start action is set to Direct.
Pretrigger Function
When selecting Trigger, a pre-trigger can be set in units of ten percent of the data length.
Writing starts simultaneously with recording, and after a trigger event occurs, the data
remaining after removal of the pretrigger data is written.
Time (s)
Start Trigger condition met
Trigger point
Stop
File
70% after the trigger30% before the trigger
* When the pretrigger is set to 30% and
the recording stop action is Single
If the time from when recording is started until the trigger condition is met is shorter than
the pretrigger length, data is written until the data length is reached after the trigger
condition is met.
Trigger point
70% after the trigger30% before the trigger
Time (s)
Start Trigger condition met Stop
* When the pretrigger is set
to 30% and the recording
stop action is Single
File
1.3 Functions of the Main Module
