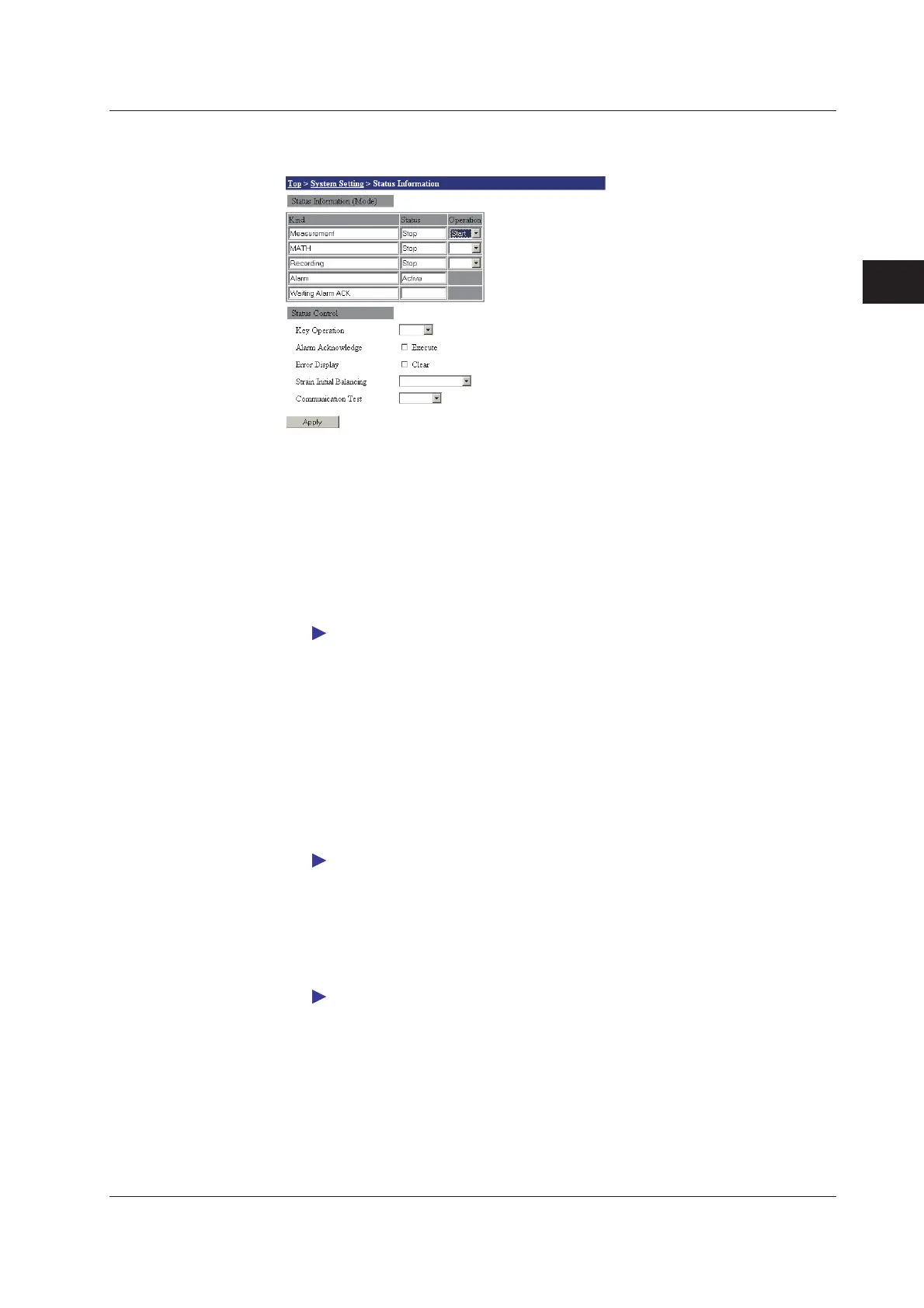

From the top screen, click System Setting > Status Information.
• Operating Main Unit Keys
1.
Select the main unit key you wish to operate from the Key Operation list.
2.
Click the Apply button. The same operation takes place as if you had pressed the
main unit key.
• Checking the Alarm Status
1.
Select the Alarm Acknowledge check box.
2.
Click the Apply button. Alarm ACK is executed.
For a description of alarm ACK, see “Alarms” in section 1.3.
• Clearing the Error Display
1.
Select the Error Display check box.
2.
Click the Apply button. Clears the error number displayed in the 7-segment LED.
• Executing Strain Initial Balancing
1.
Select the initial balance execution method from the Strain Initial Balancing list.
2.
Click the Apply button. Initial balancing is executed on the channel selected in the
strain input settings in the channel settings.
For a description of the settings of the channels on which to execute the initial balancing of
the strain input, see “Setting Up and Executing Strain Input Initial Balancing” in section 3.5.
• Execute Communication Test
1.
Select the item you wish to test from the Communication Test list.
2.
Click the Apply button. The test is executed.
For a description of the execution of the communication test, see “Communication Test” in
section 5.2.
