Explanation of Functions
1
One-to-N Connection with the PC

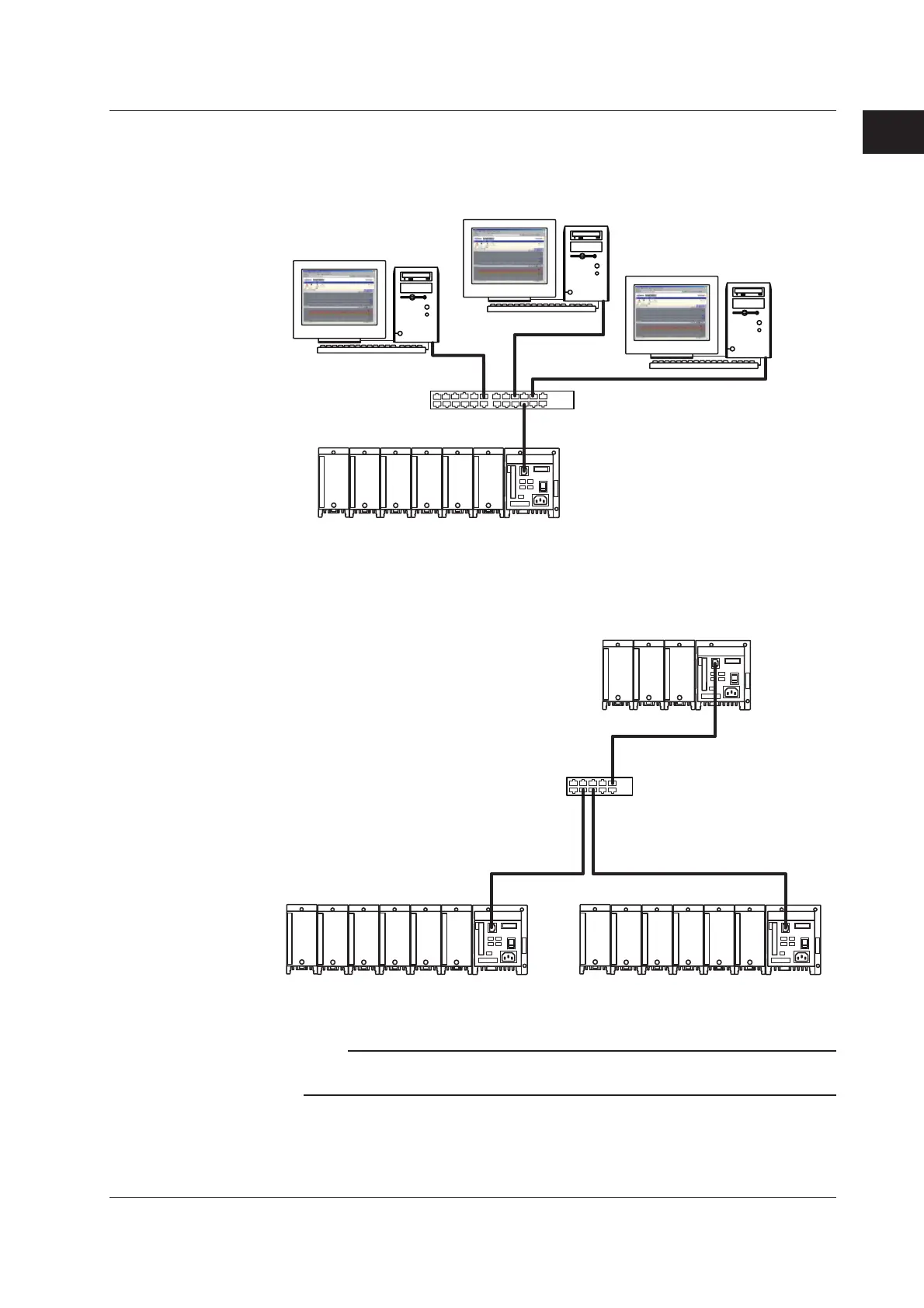

This is an example in which multiple PCs are connected to the MW100 for performing
data monitoring.
MW100
Hub
MW100 Data Acquisition Unit
PC
PC
PC
Connecting to Modbus Devices
This is an example of configuration of a system with connections to Modbus devices.
Hub
Modbus machine (server)
Modbus machine (server)
MW100 Data Acquisition Unit
(client)
MW100MW100
MW100
Note
Using the Web monitor or other communciation functions while using the Modbus function may
affect the Modbus communication response.
