Explanation of Functions
1

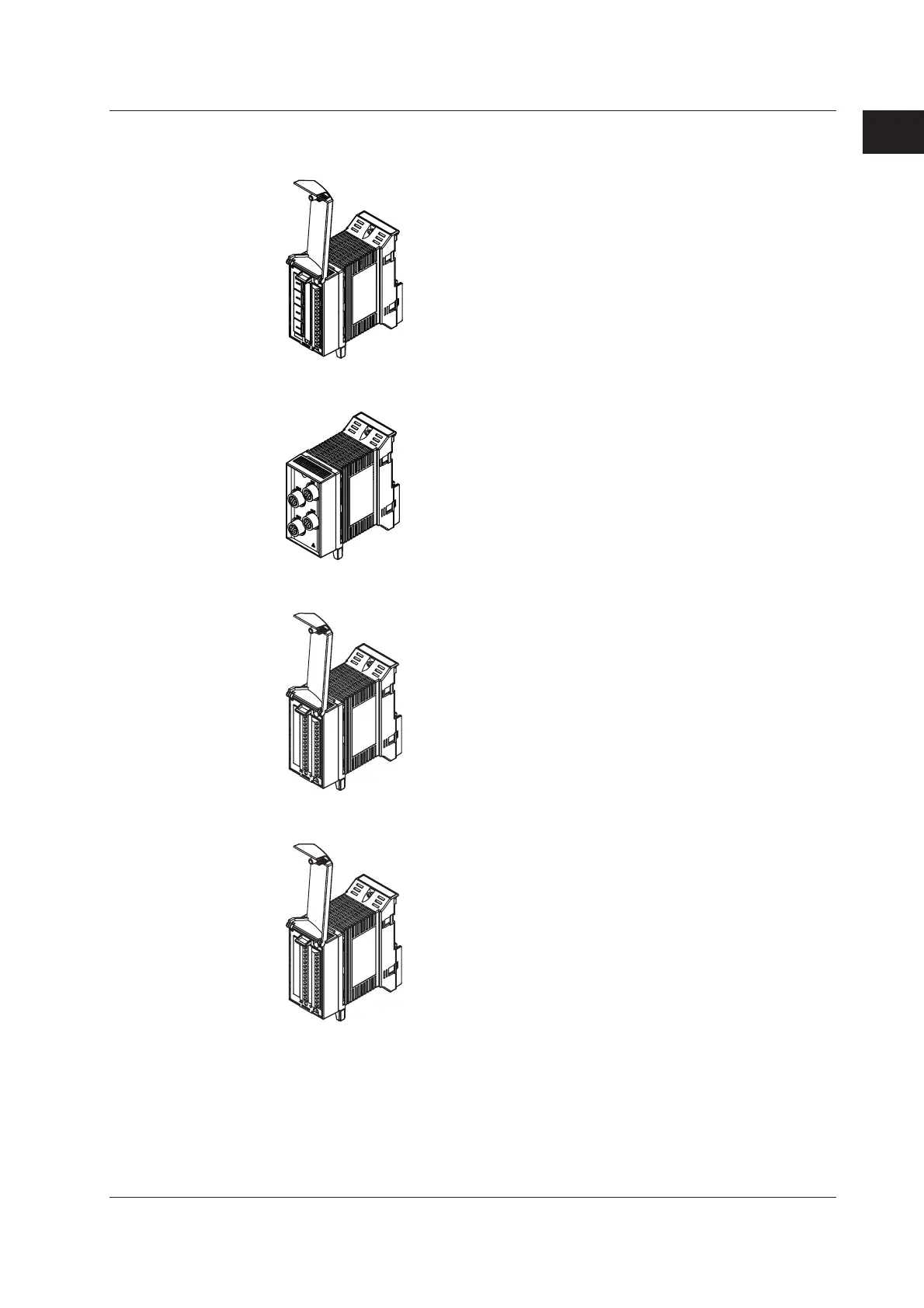

4-CH, Medium-Speed Strain Input Module (MX112-B12-M04 and MX112-
B35-M04)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 4 inputs
• Input system: floating balanced input (isolation between
channels)
4-CH, Medium-Speed Strain Input Module (MX112-NDI-M04)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 4 inputs
• Input system: floating balanced input
(non-isolation between channels)
10-CH, High-Speed Digital Input Module (MX115-D05-H10)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 10 inputs
• Input types: DI (non-voltage contact, open collector, 5-V logic)
10-CH, High-Speed Digital Input Module (MX115-D24-H10)
• Minimum measurement interval: 10 ms
• Maximum number of inputs: 10 inputs
• Input types: DI (24-V logic)
