YOKOGAWA MW100 User Manual

2-3
IM MW100-01E
Installation and Wiring
2

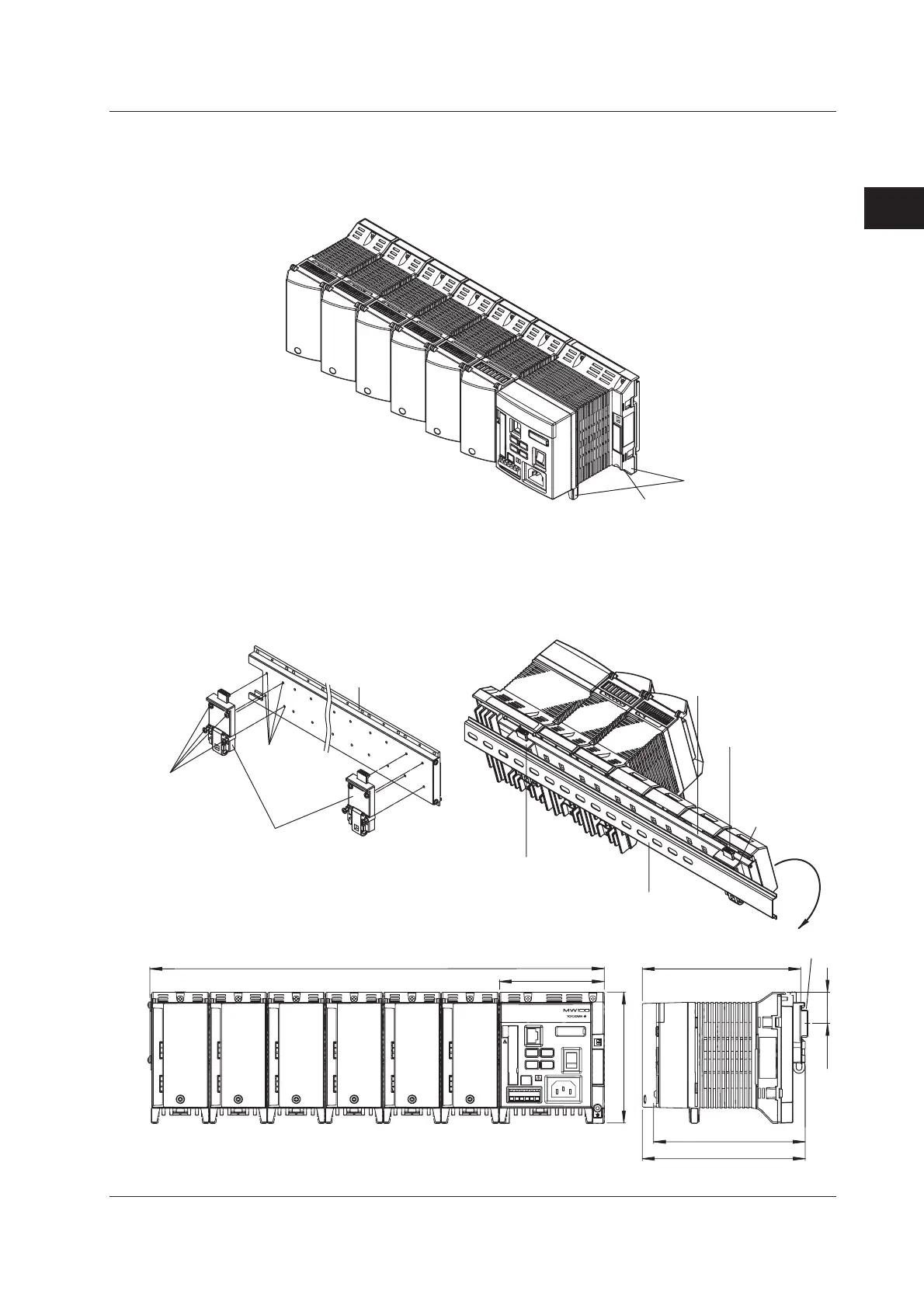

2.2 Installation
Placing on a Desktop or on the Floor
Since each module has feet you can attach the necessary modules to the base plate
allowing the unit to be placed vertically. For the procedure for attaching the modules, see
the next page.
Feet
Functional ground
terminal screw
Attaching to DIN Rails
By attaching DIN rail mounting brackets to the base plate as in the figure below, you can
rack-mount or panel-mount the MW100 Data Acquisition Unit.
Base plate
DIN rail mount
bracket
Attachment
screws (M3)
Screw holes
DIN rail*
Base plate
Latch lever
(press to release
from the DIN rail)
• Attachment of the base plate to the DIN rail
• Attachment of the DIN rail mount bracket to
the base plate
DIN rail mount
bracket
DIN rail mount
bracket
* To prevent slacks in the DIN rail,
fix at least three locations of the DIN rail.
DATA ACQUISITION UNIT
151.1
(31)
105
158.6
163
131
455 (1 main module, for connecting six input/output modules)
• Dimensions when mounted on a DIN rail
DIN rail
Unit: mm
