Zebra ZD620 User Manual

165
Setup

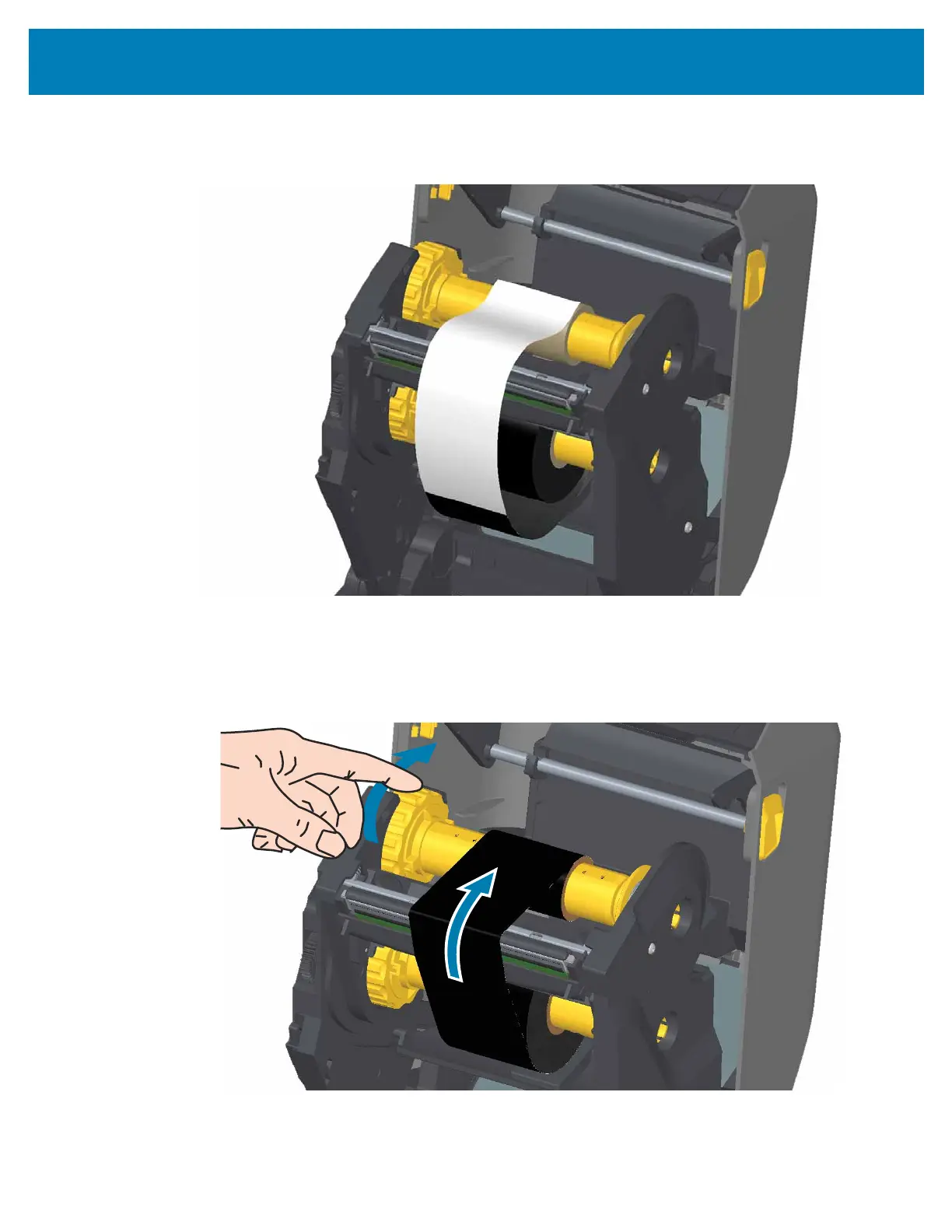

5. Attach the ribbon to the take up core. Use thin strip of tape to secure the ribbon to the
take-up core, if your media does not have an adhesive strip on the ribbon leader like
genuine Zebra
@
ribbon. Align the ribbon so that it will be taken straight onto the core.
6. Turn the ribbon take-up hub with the top moving toward rear to remove slack from the
ribbon. Rotating the hub helps to finish aligning the take up ribbon position with the
supply ribbon roll. The ribbon should be wound, at minimum, one and a half times
around the take-up ribbon core.
7. Verify that the media is loaded and ready to print and then close the printer cover.

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
