Replacing the Printhead
1. Push the right side printhead cable connector into the printhead. The connector is
keyed to only insert one way.
2. Push the left side printhead cable connector onto the printhead.

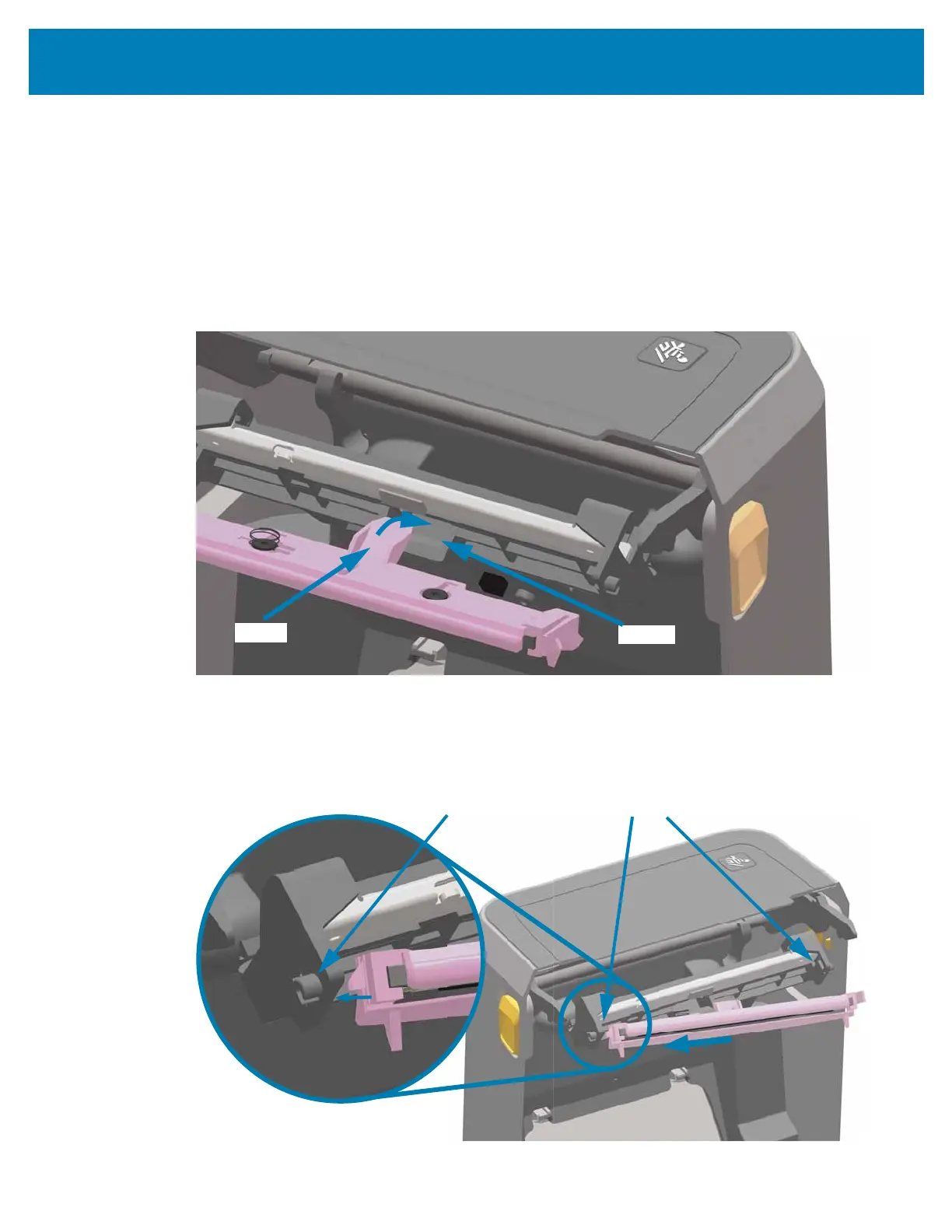

3. Insert the center tab on the printhead assembly into the center slot on the Printhead
Actuator Arm.
4. Insert the left side tab of the printhead assembly into the recessed slot on the left side
of the Printhead Actuator Arm.
