Zebra ZD620 User Manual

273
Maintenance

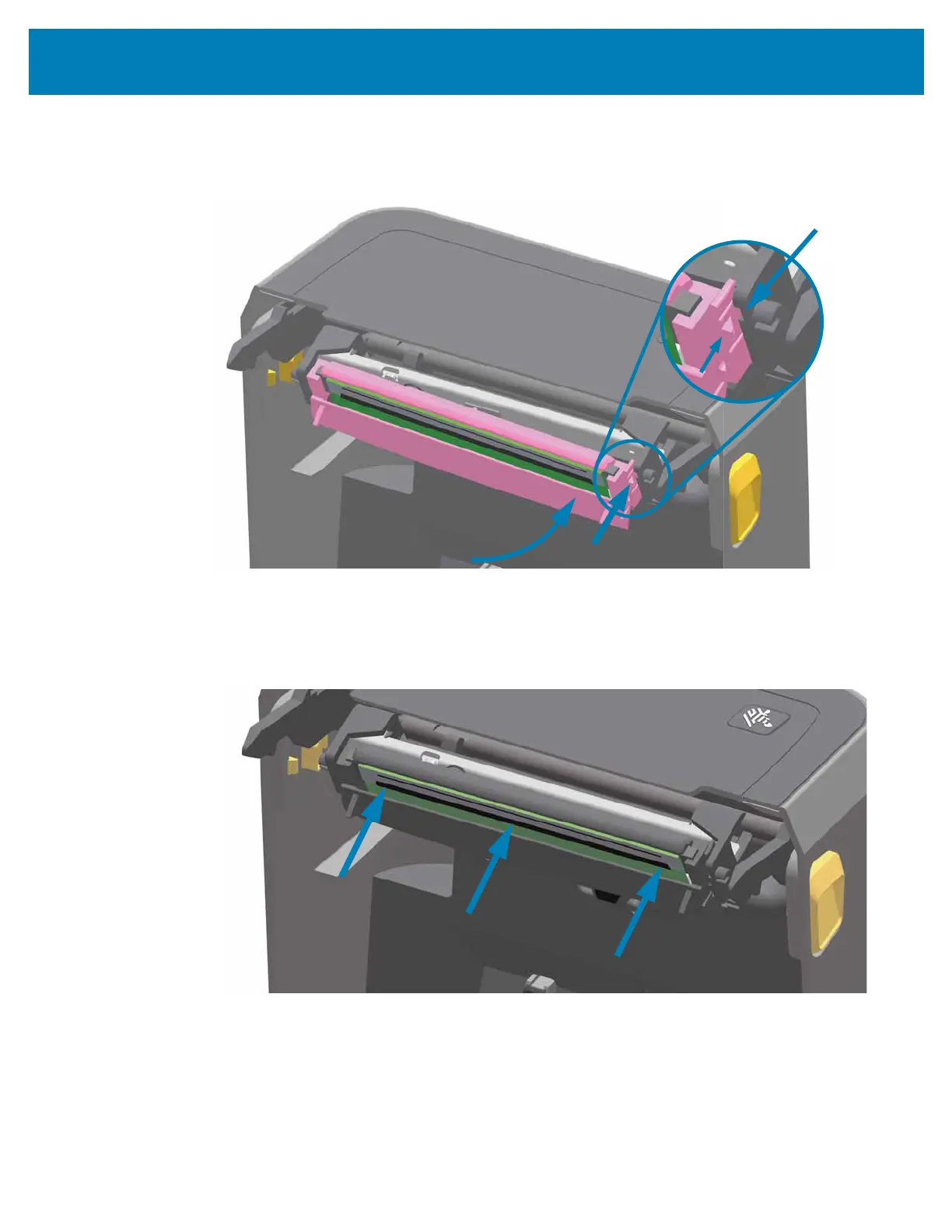

5. Push the right side of the printhead into the printer until the latch locks the right side of
the printhead into the printer.
6. Verify that the printhead moves freely into the printer when pressure is applied (see
arrow) and remains locked when pressure is released.
7. Clean the printhead by using a new cleaning pen to wipe body oils (finger prints) and
debris off the printhead. See Cleaning the Printhead.
8. Reload media. Turn on the printer and print a status report to ensure proper function.
See Test Printing with the Configuration Report.
Slot
Guide

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
