Chapter 5 Web Interface Tutorials

AX/DX/EX/PX Series User’s Guide

102

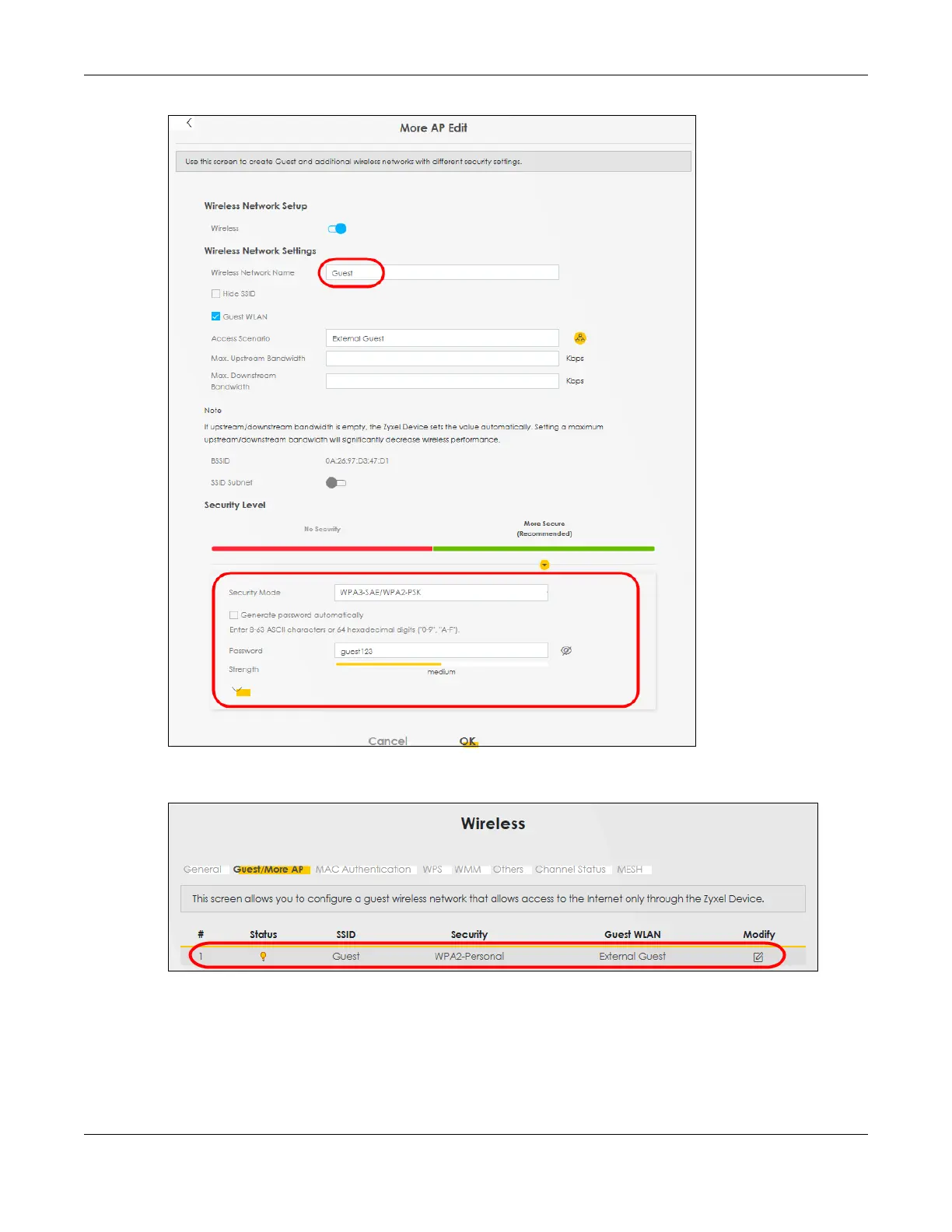

The 2.4 GHz Guest WiFi network is now configured.

3 Go to the Wireless > General screen and set Band to 5GHz to configure the 5G Guest WiFi settings for

VIP. Click OK.
