Chapter 6 App Tutorials

AX/DX/EX/PX Series User’s Guide

133

Extender with a strong signal.

MPro Mesh Router (ZD)

MPro Mesh Extenders (E1, E2)

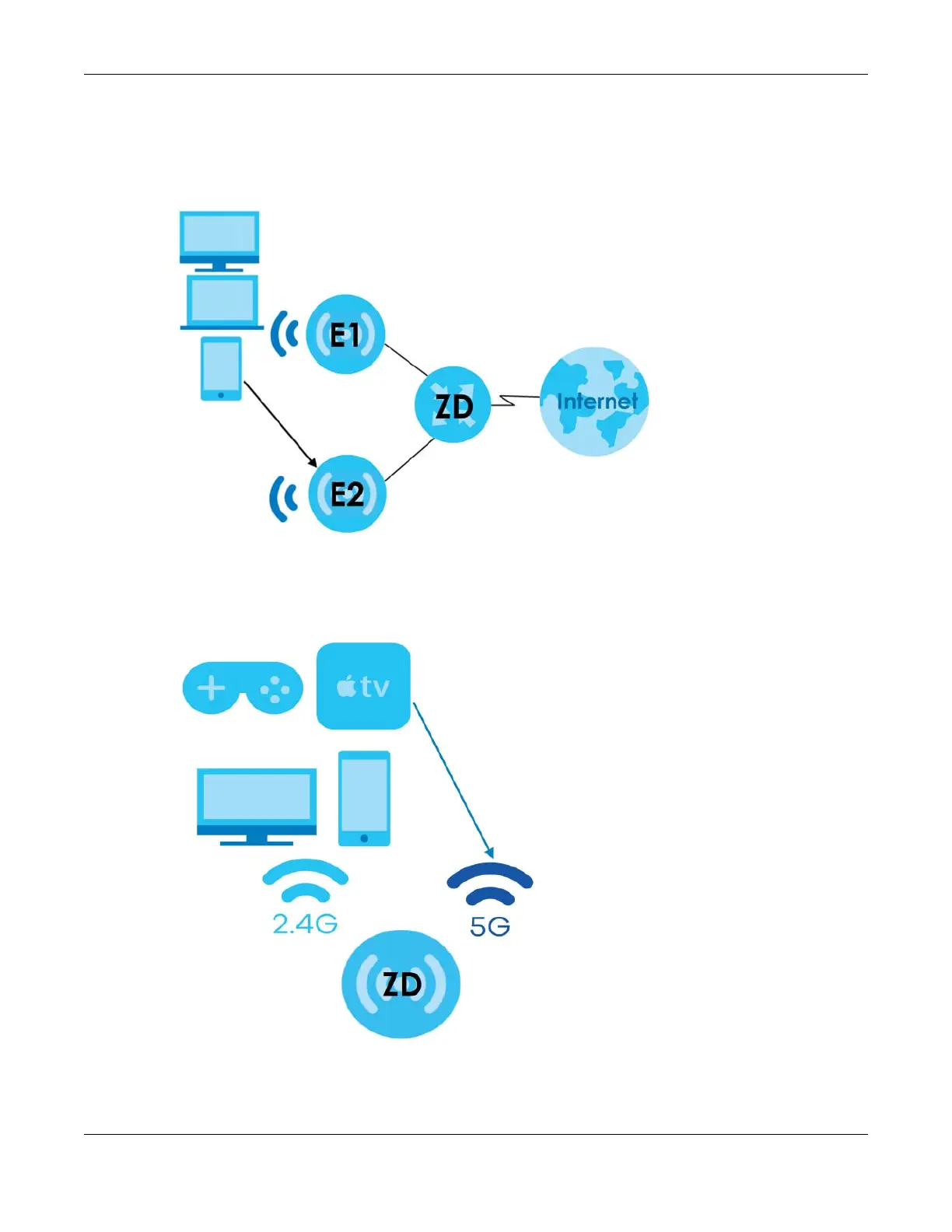

Figure 65 AP Steering Application

• Band steering allows 2.4 GHz/5 GHz dual-band WiFi clients to move from one band to another. For

example, if the 2.4 GHz channel is congested, WiFi clients that support 5 GHz can move to the 5 GHz

band.

Figure 66 Band Steering Application
