Chapter 8 Broadband

AX/DX/EX/PX Series User’s Guide

223

Note: If you select Drop in the Current Cellular Connection field, the Zyxel Device will drop the

cellular WAN connection when the Time Budget or Data Budget is reached. It may take

some time for the cellular WAN connection to be disconnected when the Time Budget

or Data Budget is reached.

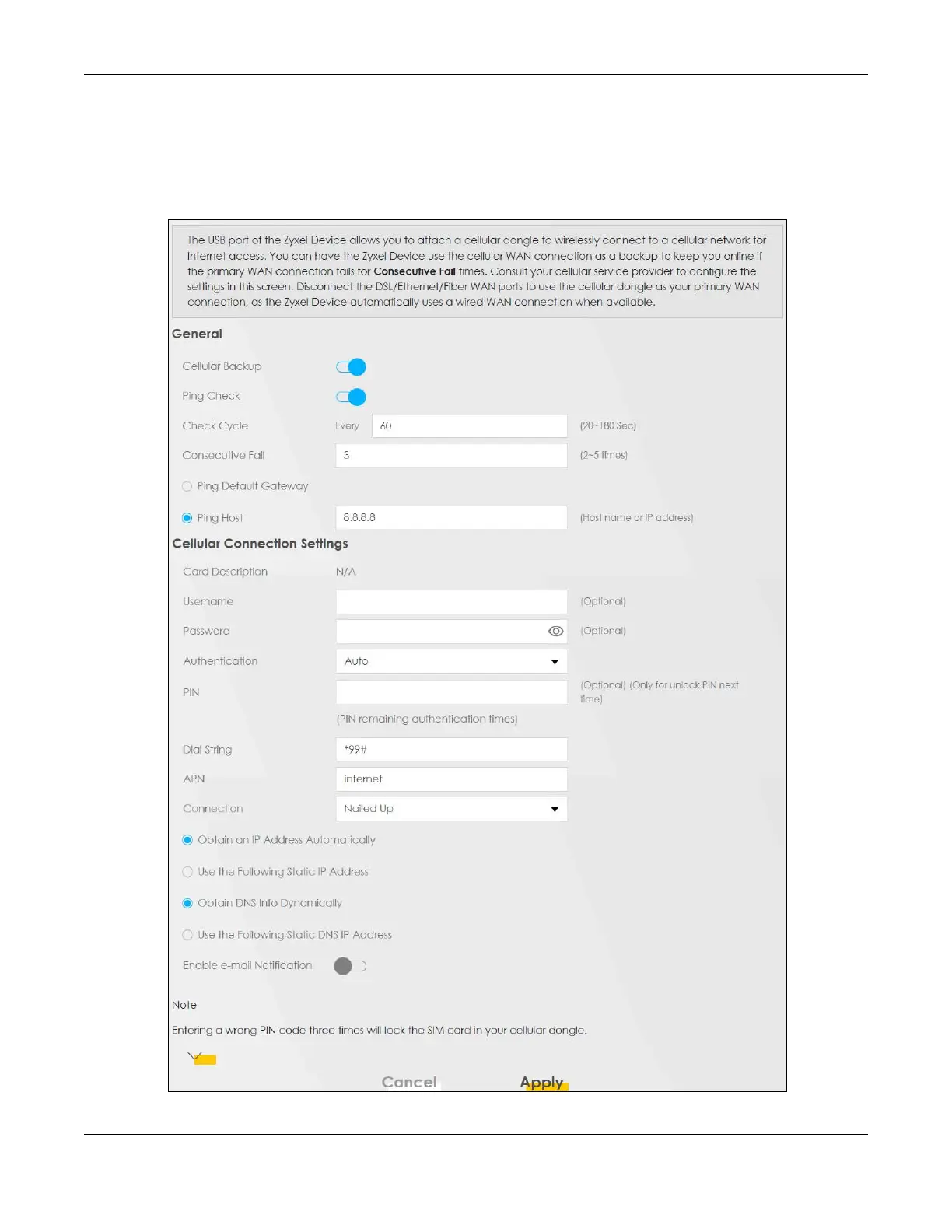

Figure 102 Network Setting > Broadband > Cellular Backup
