VLAN Membership Principles and Rules VLAN Configuration
Untagged Members
The following figure shows how ports that are untagged members of a VID handle incoming
and outgoing frames.

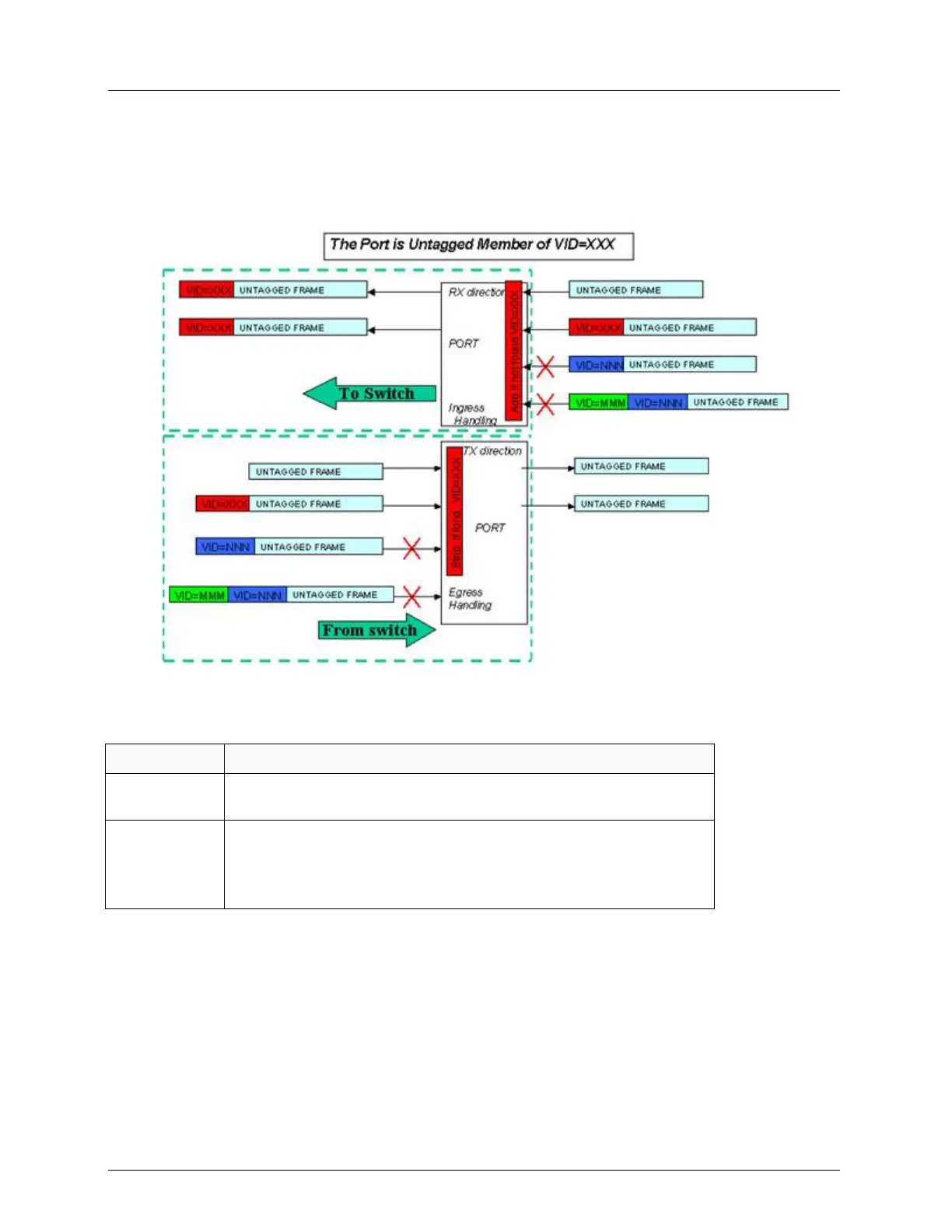

Figure 13: Port is Untagged Member of VID=XXX
Table 38: Untagged Member Description Summary
Allows Untagged Traffic and Tagged Traffic with VLAN ID equal
to PVID. For Untagged Traffic adds VLAN tag equal to PVID.
Strips VLAN Tag (PVID).
NOTE: When TAGGED (TRFC VLANs) & UNTAGGED (MGMT
VLAN) are specified on HSL, do not Strip PVID tag in
UNTAGGED MGMT VLAN.
