BW Profile Definition Ethernet Service Configuration
BW Profile Definition
ML systems supports the bandwidth profile definition (throughput) for each EVC service. A

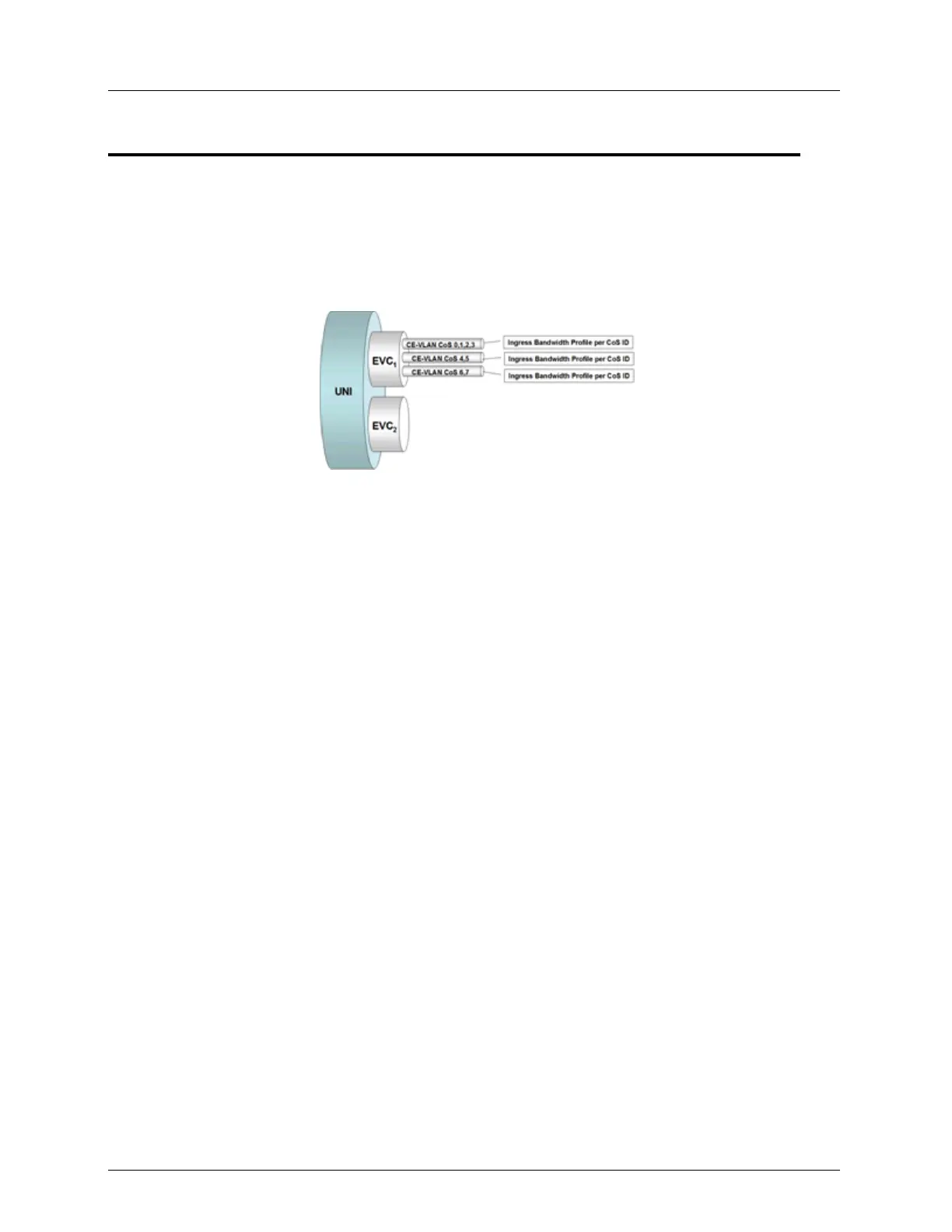

single Bandwidth Profile is applied to all ingress Service Frames. In the example illustrated
below, there are three services, each identified by a CoS ID of the specific CE-VLAN - each
with a separate Bandwidth Profile.
This section describes how to create a pool of bandwidth profiles (up to 32) with meaningful
names. The profiles should be created according to the service provider's needs. They can
then be used as part of the attributes that make up definitions for various services.
To define a bandwidth profile
1. From the Network Element tree, under Ethernet Services, select BW Profiles. The BW
Profile pane appears.
The pane lists the currently defined pool of BW profiles (AID) along with their defined
rate limits (CIR, CBS, EIR and EBS) and the services to which each profiles were
assigned (Used by Services).
