Ethernet Bridge, STP/RSTP STP/RSTP and Provider Bridge Configuration
STP/RSTP Port Details

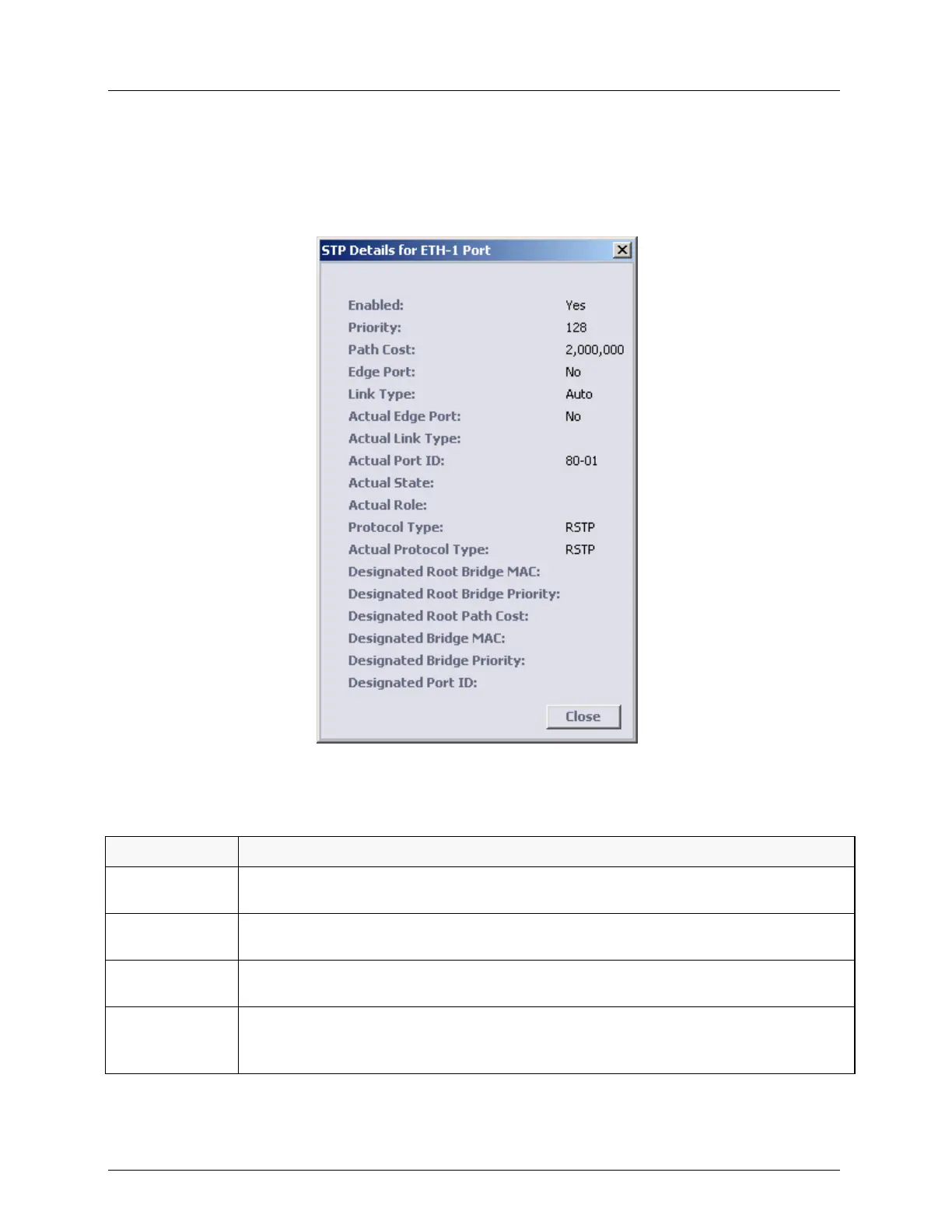

The configured and actual information can be displayed for selected STP ports, by choosing
the port and clicking the Details button in the STP Glance view.
The following table only describes the actual parameter values. The configured parameter
descriptions are available in the Bridge and Port configuration dialogs.
Table 21: STP Port Details
The maximum number of times BPDUs can be transmitted during Hello Time interval.
Non-configurable parameter equal to 3.
Actual Root
Bridge Priority
This is the actual unique identifier for this bridge, consisting of bridge priority plus
MAC address. Only the bridge priority is displayed.
This is the actual unique identifier for this bridge, consisting of bridge priority plus
MAC address. Only the MAC is displayed in HEX.
Actual Root Port of this switch. This is the index of the port on this switch that is
closest to the root. This switch communicates with the root device through this port.
This is 0X0000 if your bridge is the root device.
To Next Page
