Actelis Networks ML700 - SP-VID per CPE Port

Appendix G - VLAN Topologies Asymmetric Topologies
G-8 User Manual ML700
SP-VID per CPE Port
This configuration applicable in any deployment, encapsulates all customers' frames (tagged
and untagged, without filtering of CE-VID) using an additional SE-VID tag. This
configuration also allows multiple SE-VIDs per CPE (one per port), supporting multiple
customers per CPE. In addition, allows intra-switching between CPEs, using switching
between HSL ports (belonging to the same SE-VID) on CO NE. Management traffic in this
configuration can be either VLAN-tagged or VLAN-untagged, as desired. In-band
management traffic beyond the CPE is unsupported in this case.

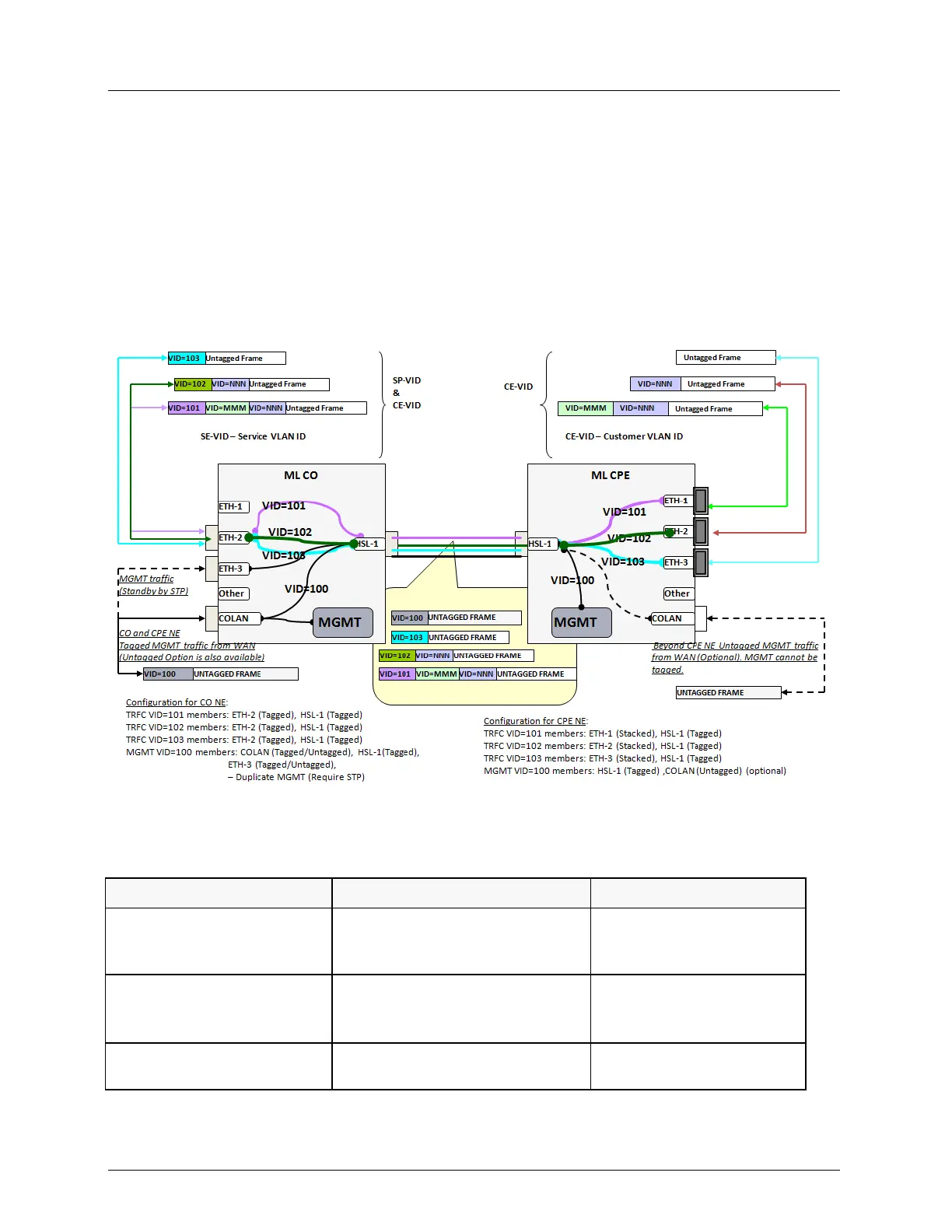

Figure 23: CE-VID preserving without filtering, stacked per each Port on CPE NE.
Table 112: Configuration summary for “CE-VID preserving/no filtering, with stacking per CPE port”
CO NE
Intermediate NE (optional)
CPE NE
ETH-x [Tagged] for TRFC
VID and [Tagged] for
MGMT VID (optional).
ETH-x [Untagged] for TRFC VID.
ETH-x [Stacked] for TRFC
VID.
HSL-1 [Tagged]
1
for TRFC
VID and [Tagged] for
MGMT VID.
HSL-1 is [Tagged] for TRFC VID
and [Tagged] MGMT VID.
HSL-1 [Tagged] for TRFC
VID and [Tagged] for
MGMT VID.
COLAN [Tagged or
Untagged] for MGMT VID.
COLAN [Tagged or Untagged] for
MGMT VID (optional).
COLAN [Tagged] for
MGMT VID (optional).
