Running a Script in Null Packet Mode Testing in Null Packet Mode
MT8852B Operation Manual PN: 13000-00205 Rev. N 9-9
3. Press the [Extended] soft key to display more detailed test results. An example of the
first extended page for the carrier drift test is shown below.
4. Page through the extended screens with the soft key in the normal manner, or press the
[Summary] soft key to revert to the initial summary page.

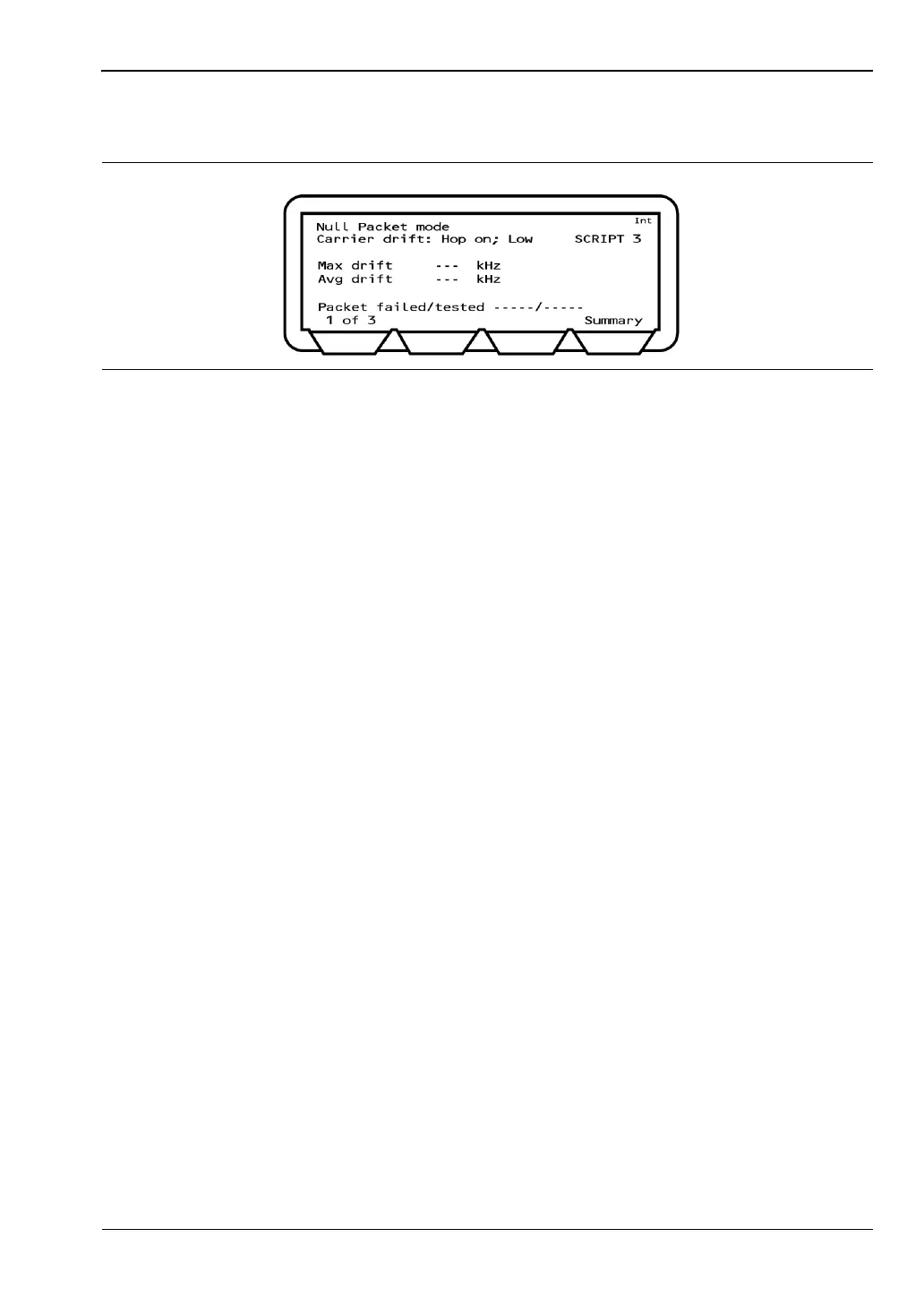

Figure 9-12. Carrier Drift Extended Results
