Icons
Square and circular icons ( ) are used on the MT8852B to indicate which of the
three test group are available.
The same icons are used to indicate which tests are available.
The meaning the icons is defined below.

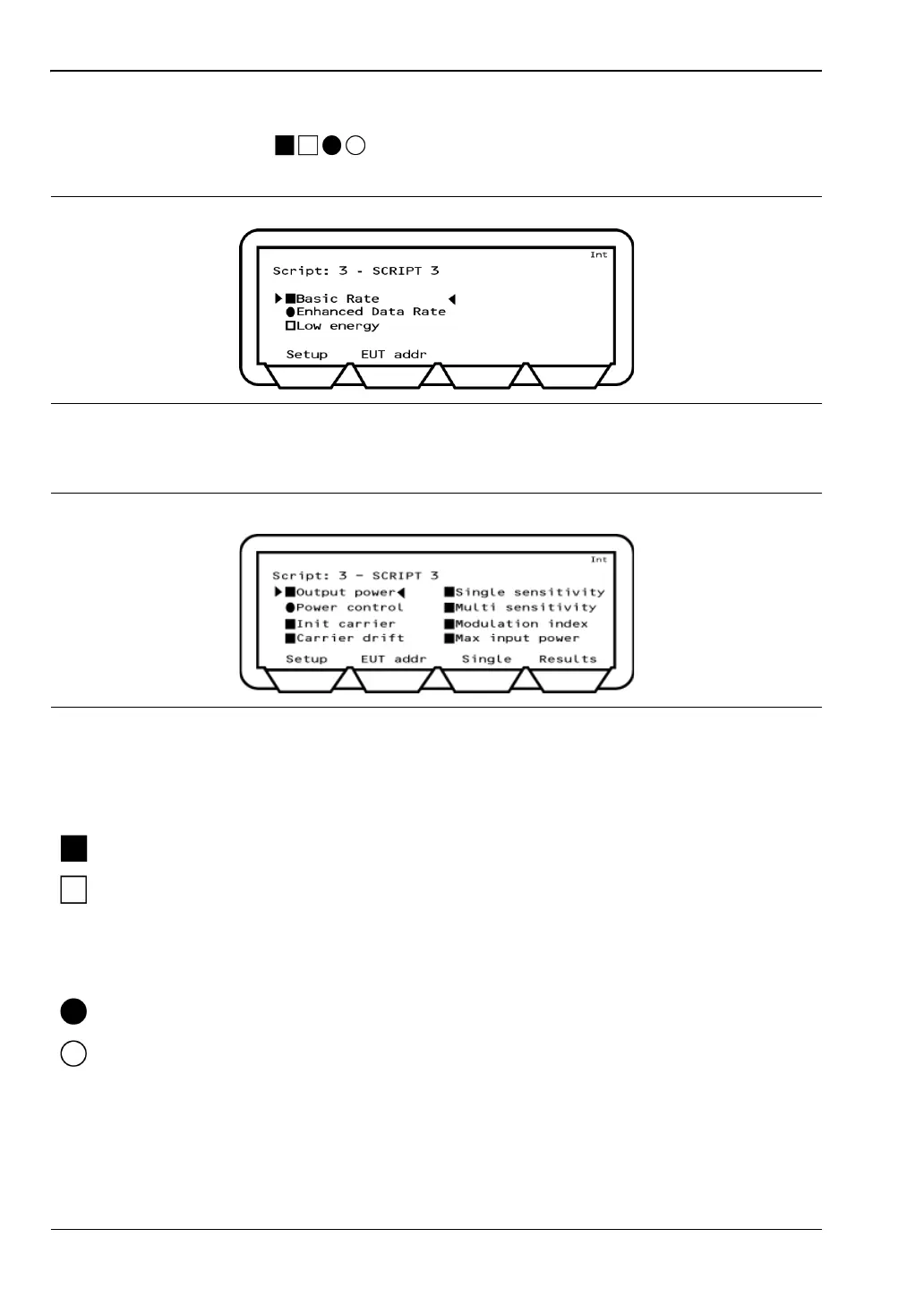

Figure 4-6. Test Group Availability
Figure 4-7. Test Availability
A square indicates that the test group or test is available for use.
A solid square indicates a selected item.
A hollow square indicates an item that has not been selected.
A circle indicates that the test group or test is unavailable, or that the MT8852B is unable
to determine the availability.
A solid circle indicates an item that has been selected, if available.
A hollow circle indicates an item that is unavailable or not selected.
