Anritsu MT8852B - Appendix H Low Energy Packet Structure

MT8852B Operation Manual PN: 13000-00205 Rev. N H-1
Appendix H — Low Energy Packet
Structure
H-1 Low Energy Packet Structure
The packet formats used in all low energy tests are shown in the figures below.

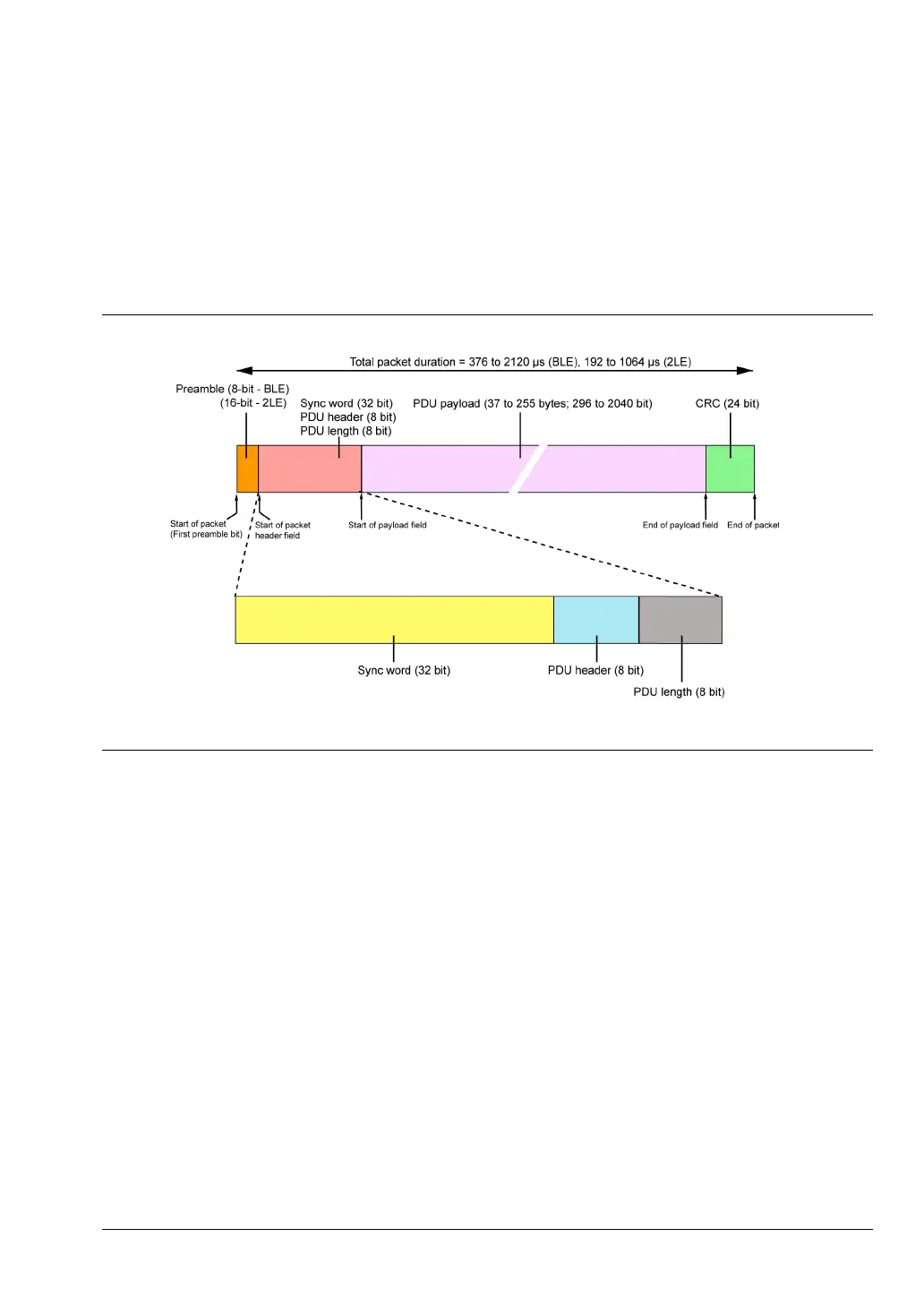

Figure H-1. Low Energy Test Packet Structure - BLE and 2LE
