Basic Rate Tests Running a Script in Standard Mode
7-24 PN: 13000-00205 Rev. N MT8852B Operation Manual
Maximum Input Power Test
The MT8852B transmits a DH1 data packet to the EUT with a PRBS9 payload so that the
EUT receives the signal at a power level of -20 dBm. The EUT loops back the received data
and a bit error rate (BER) and frame error rate (FER) calculation is performed by the
MT8852B. The test is repeated for each of the frequency ranges selected (LOW, MEDIUM
and HIGH). This test is performed with hopping off.
The table below details the test conditions and the associated default settings. Permitted
variations from the default setting are detailed in the “User Range” column.
Results
1. Position the cursor at "Max input power" in the Script menu.
2. Press the [Results] soft key.
The Maximum input power results page displays.

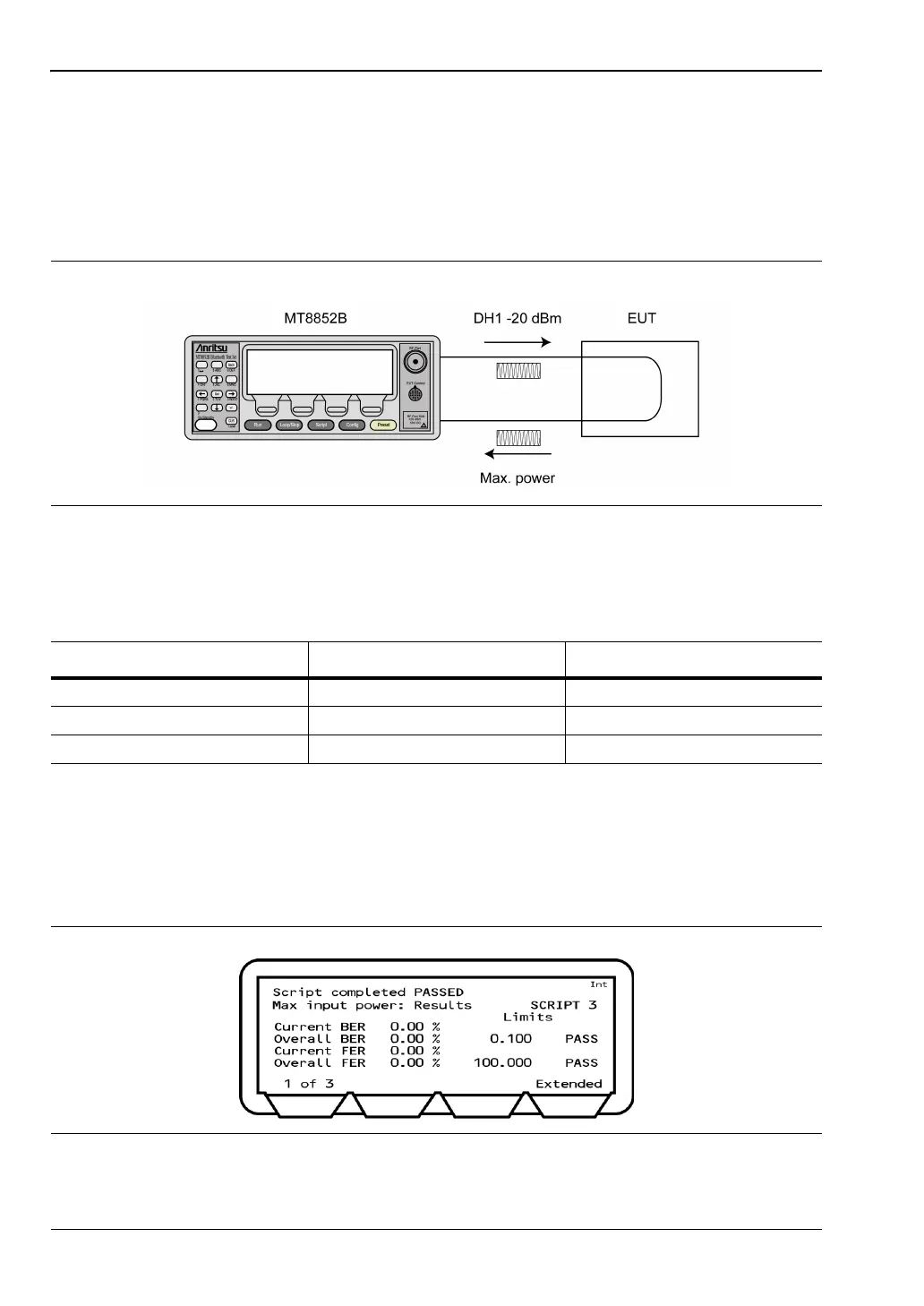

Figure 7-33. Maximum Input Power Test
Table 7-10. Maximum Input Power Test Conditions
Parameter Default value User Range
Number of packets 7408 (1600128 bits) 1 to 10,000
Test tx power -20 dBm -90 dBm to 0.0 dBm
Payload pkt count Transmitted Transmitted, Received
Figure 7-34. Max Input Power Results 1
To Next Page
