BlueSuite Pro3 General Information
1-6 PN: 13000-00205 Rev. N MT8852B Operation Manual
1-4 BlueSuite Pro3
The MT8852B can be used in combination with BlueSuite Pro3, a PC software application
ideal for detailed analysis of Bluetooth packets. The acquired data is presented graphically
on the PC, enhancing the analysis and troubleshooting capabilities of the standard MT8852B
displays.
Users select the required waveform options (Frequency Deviation, vs Symbol, Power Burst
Profile, Vector diagrams, and Constellation diagrams) and simply click run to display
detailed colour-coded traces.
BlueSuite Pro3 also facilitates script testing. Users select and configure the required tests
and view a detailed test report.
BlueSuite Pro3 is available by ordering option MX885201B as listed earlier in this chapter.

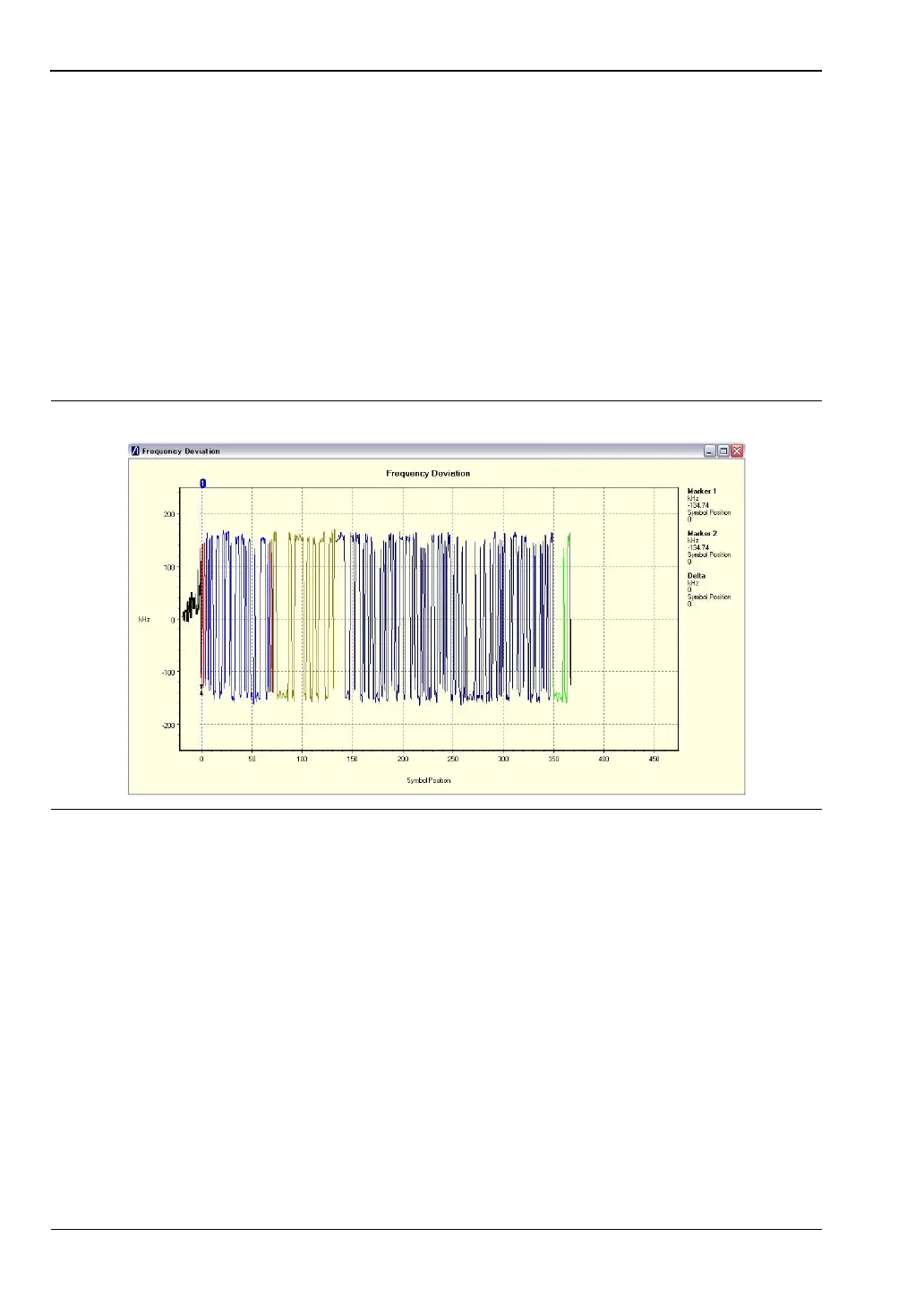

Figure 1-3. BlueSuite Pro3 Frequency Deviation Trace
