Running a Script in Standard Mode Basic Rate Tests
MT8852B Operation Manual PN: 13000-00205 Rev. N 7-9
Results
1. Position the cursor at "Enhanced Power control" in the Script menu.
2. Press the [Results] soft key.
The Enhanced Power control results page displays.
Power max: Displays the maximum power that the EUT reached in the test.
Power min: Displays the minimum power that the EUT reached in the test.
Rpt Mx diff: Displays the maximum power level at the start of a given modulation
measurement cycle relative to the maximum power at the end of the
cycle. Shown as “RMD” in figure 7-9.
Current Pkt: Displays the average power of the last packet measured by the
MT8852B. The MT8852B identifies the position of the first bit (p0) in
the packet and measures the power in each individual bit. Packet avg
is the average power of all the measured bits.
Press the [1 of 2] soft key to display the second page of results.
Max step: Displays the largest change between the power level steps.
Min step: Display the smallest change between the power level steps.
Mx diff relative:Displays the maximum difference (at the same step position) in the
GFSK header power for DHx to 2-DHx, and DHx to 3-DHx packets.
Shown as “MDR” in figure 7-9.
Max diff: Displays the maximum recorded difference between the 2 and 3 Mbs
results.

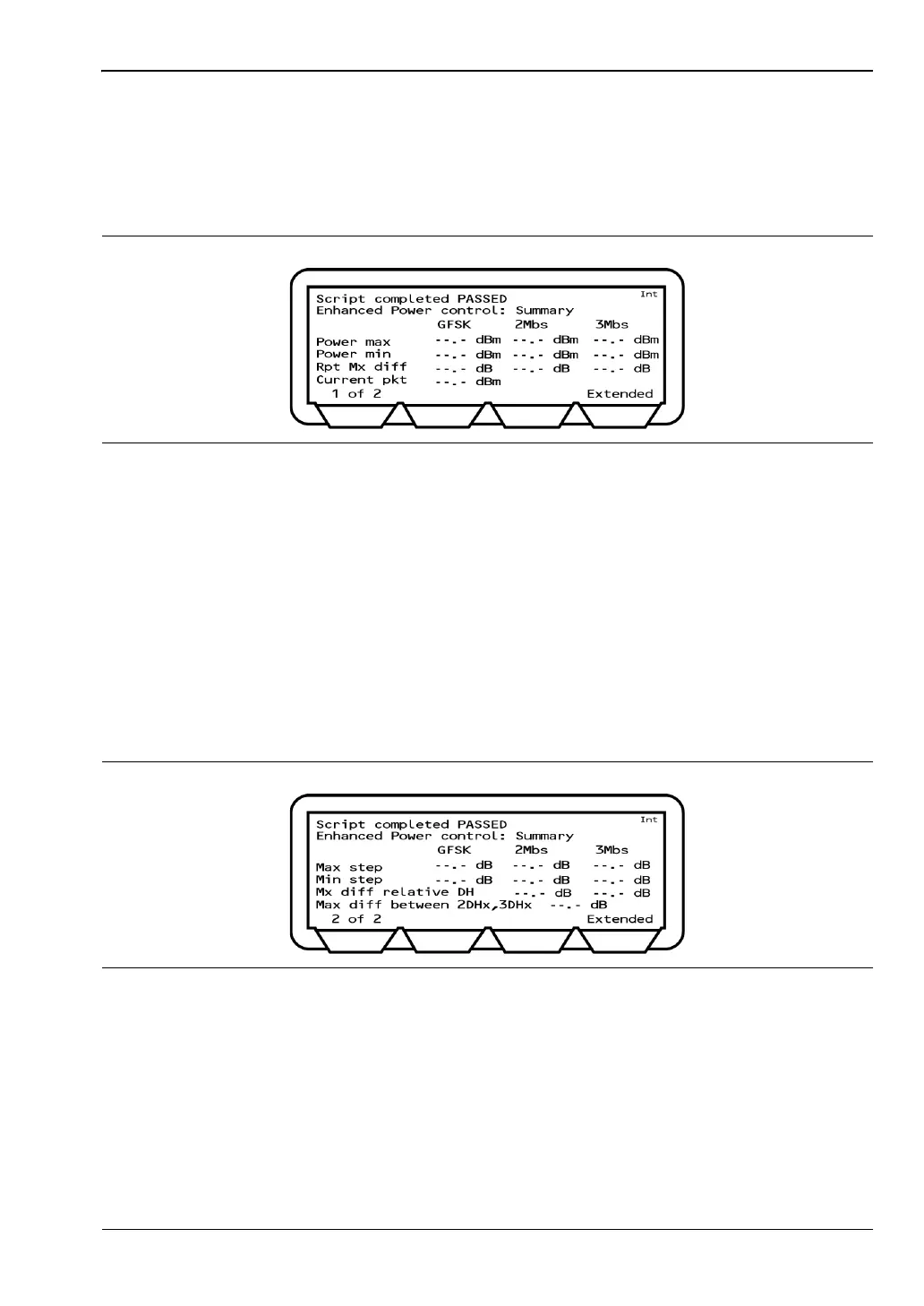

Figure 7-10. Enhanced Power Control Results
Figure 7-11. Enhanced Power Control Results 2
