Running a Script in Standard Mode Basic Rate Tests
MT8852B Operation Manual PN: 13000-00205 Rev. N 7-5
The Output power results page displays.
Current pkt: Displays the average power of the last packet measured by the MT8852B.
The MT8852B identifies the position of the first bit (p0) in the packet and
measures the power in each individual bit. Packet avg is the average
power of all the measured bits.
Pkt avg; Max: Displays the highest power measured of all of the Packet avg
measurements during the test.
Pkt avg; Min: Displays the lowest power measured of all of the Packet avg measurements
during the test.
Test peak: This is the power of the single bit in the packet that has the greatest
power. The value displayed is the largest peak power measured for all
packets in the test.
3. Press the [Extended] soft key to display more detailed test results. Unlike the summary
page shown above, the extended pages are specific to each of the test scenarios. If a test
is performed at high, medium, and low frequencies, with hopping both on and off, there
would be six extended pages. An example of the first extended page for the output
power test is shown below.
4. Page through the extended screens with the soft key in the normal manner, or press the
[Summary] soft key to revert to the initial summary page.

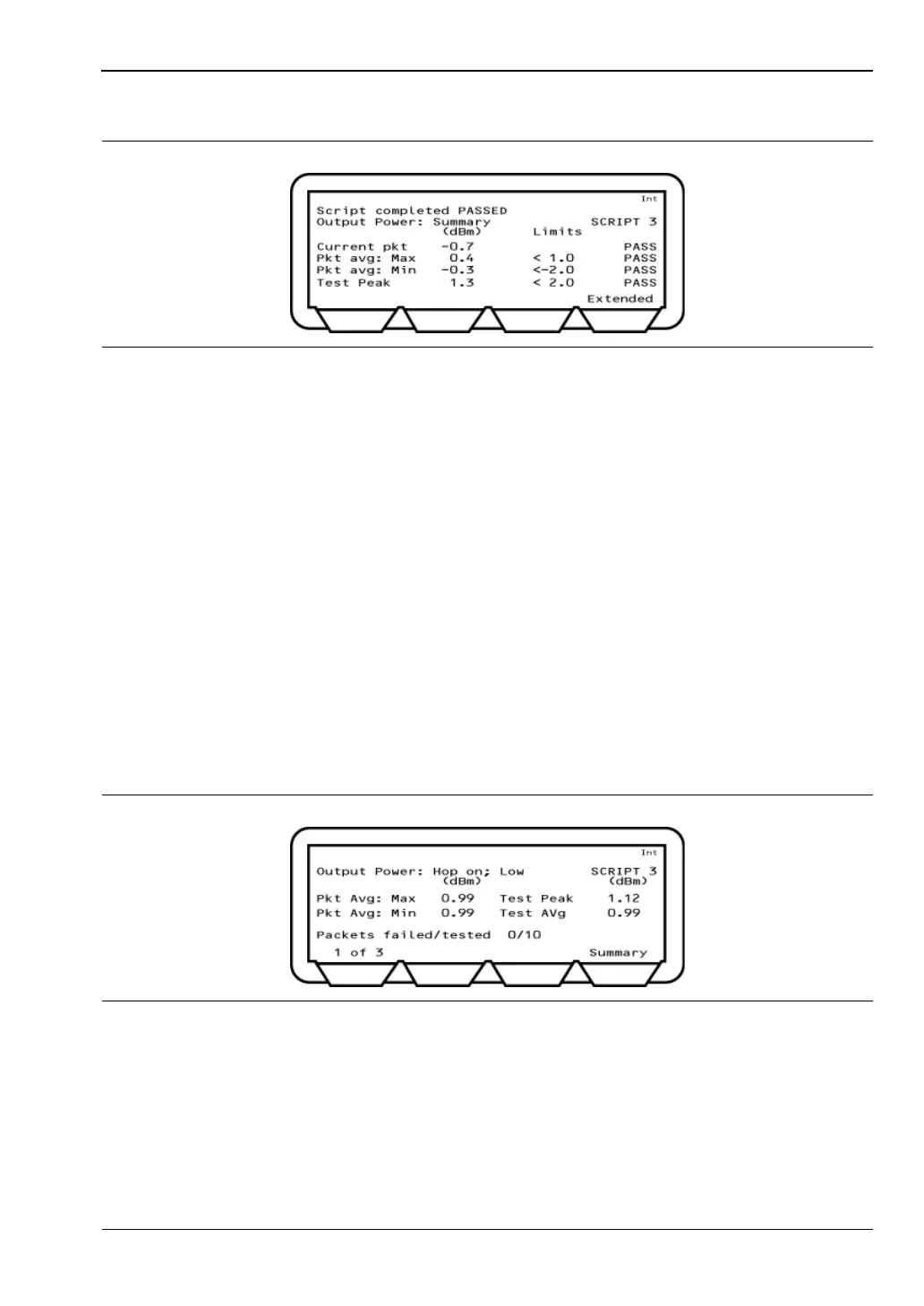

Figure 7-4. Output Power Results
Figure 7-5. Output Powers Extended Results
To Next Page
