Running a Script in Standard Mode Basic Rate Tests
MT8852B Operation Manual PN: 13000-00205 Rev. N 7-7
The Power control results page displays.
Power max: Displays the maximum power that the EUT reached in the test.
Power min: Displays the minimum power the EUT reached in the test.
Current Pkt: Displays the average power of the last packet measured by the
MT8852B. The MT8852B identifies the position of the first bit (p0) in
the packet and measures the power in each individual bit. Packet
avg is the average power of all the measured bits.
Max step: Displays the largest change between the power level steps.
Min step: Display the smallest change between the power level steps.
3. Press the [Extended] soft key to display more detailed test results. Unlike the summary
page shown above, the extended pages are specific to each frequency.
4. Page through the extended screens with the soft key in the normal manner, or press the
[Summary] soft key to revert to the initial summary page.

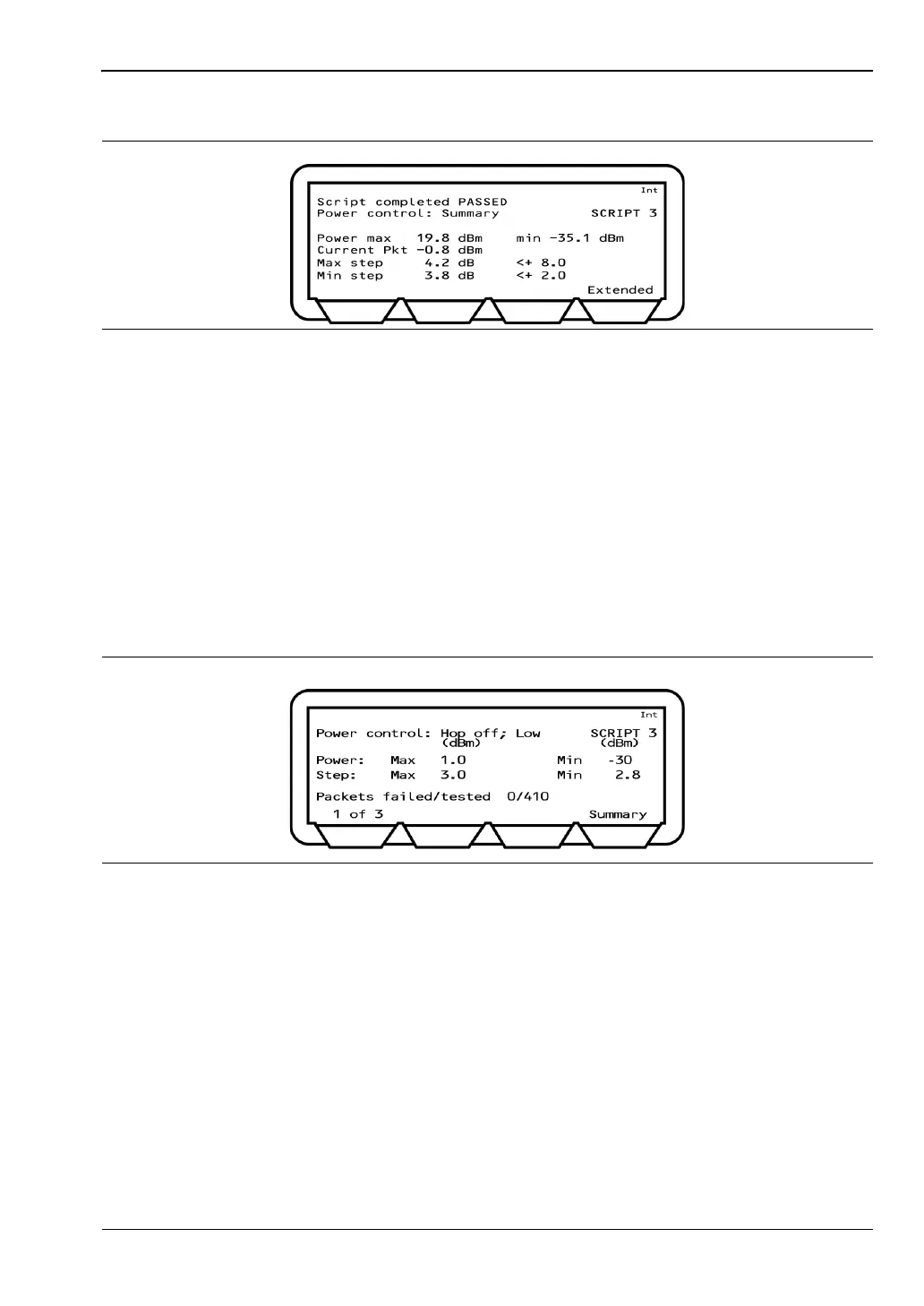

Figure 7-7. Power Control Results
Figure 7-8. Power Control Extended Results
