Basic Rate Tests Running a Script in Standard Mode
7-12 PN: 13000-00205 Rev. N MT8852B Operation Manual
The Initial carrier results pages display.
Offset: Displays the initial frequency error of the last packet measured.
Average offset: Displays the average value of all initial frequency offset measurements
made in the test.
Max +ve offset: Displays the frequency error of the single packet that had the greatest
positive error of all those measured.
Max -ve offset: Displays the frequency error of the single packet that had the greatest
negative error of all those measured.
3. Press the [Extended] soft key to display more detailed test results. Unlike the summary
page shown above, the extended pages are specific to each of the test scenarios. For
example, if a test is performed at high, medium, and low frequencies, with hopping both
on and off, there would be six extended pages. An example of the first extended page
for the initial carrier test is shown below.
4. Page through the extended screens with the soft key in the normal manner, or press the
[Summary] soft key to revert to the initial summary page.

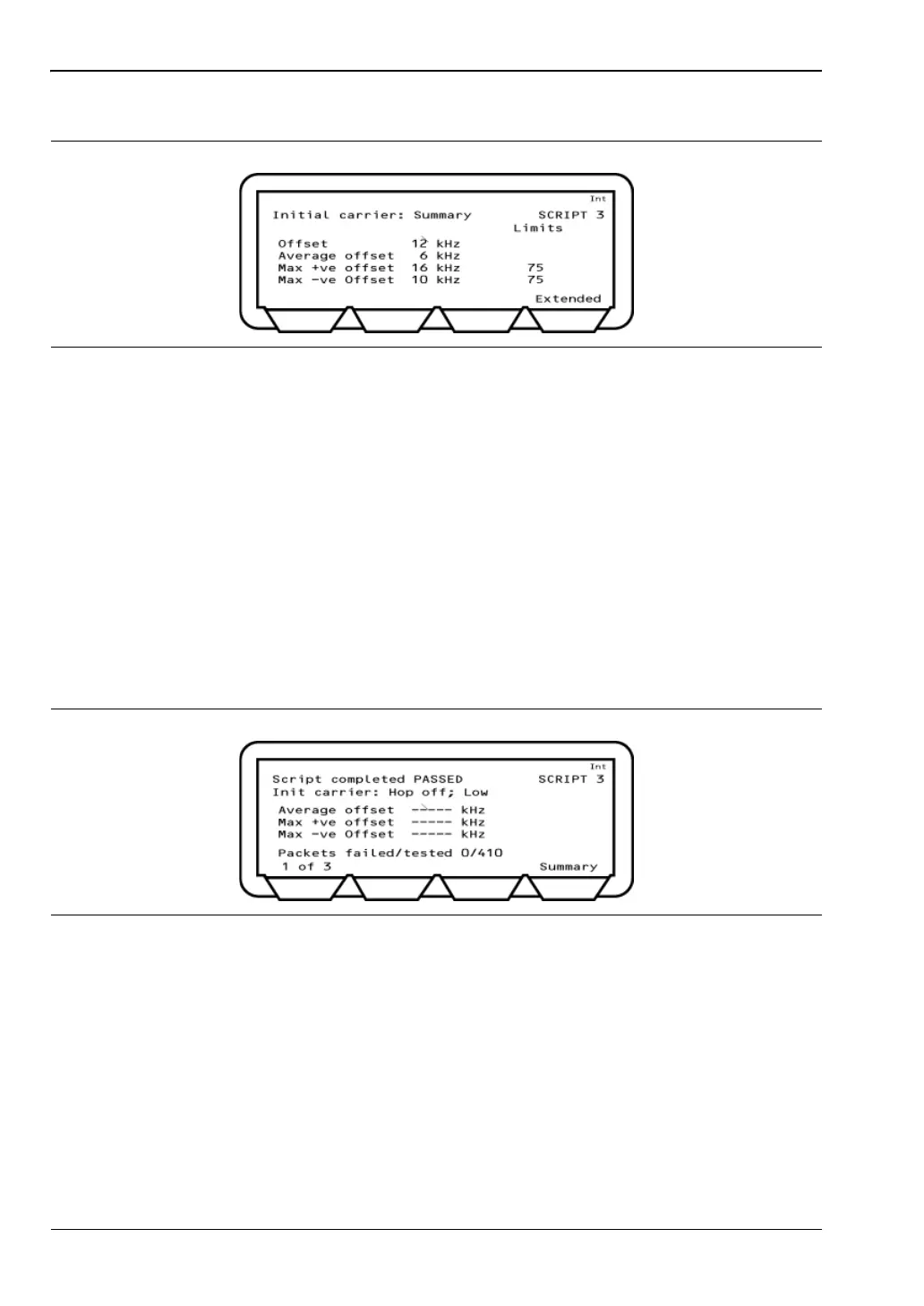

Figure 7-14. Initial Carrier Results
Figure 7-15. Initial Carrier Extended Results
