Basic Rate Tests Running a Script in Standard Mode
7-14 PN: 13000-00205 Rev. N MT8852B Operation Manual
The Carrier drift results page displays.
Drift rate: Displays the maximum drift rate between any two 10-bit groups in the
packet, separated by 50 us. This value is the peak held worst-case
value for packets measured during the test.
Drift (DHx): Displays the difference between the average frequency of the first 4
preamble bits of the packet and the average frequency of any 10 bits in
the payload field of the same packet. This value is the peak held
worst-case value for packets measured during the test.
3. Press the [Extended] soft key to display more detailed test results. Unlike the summary
page shown above, the extended pages are specific to each of the test scenarios. For
example, if a test is performed at high, medium, and low frequencies, with hopping both
on and off, there would be six extended pages. An example of the first extended page
for the carrier drift test is shown below.
4. Page through the extended screens with the soft key in the normal manner, or press the
[Summary] soft key to revert to the initial summary page.

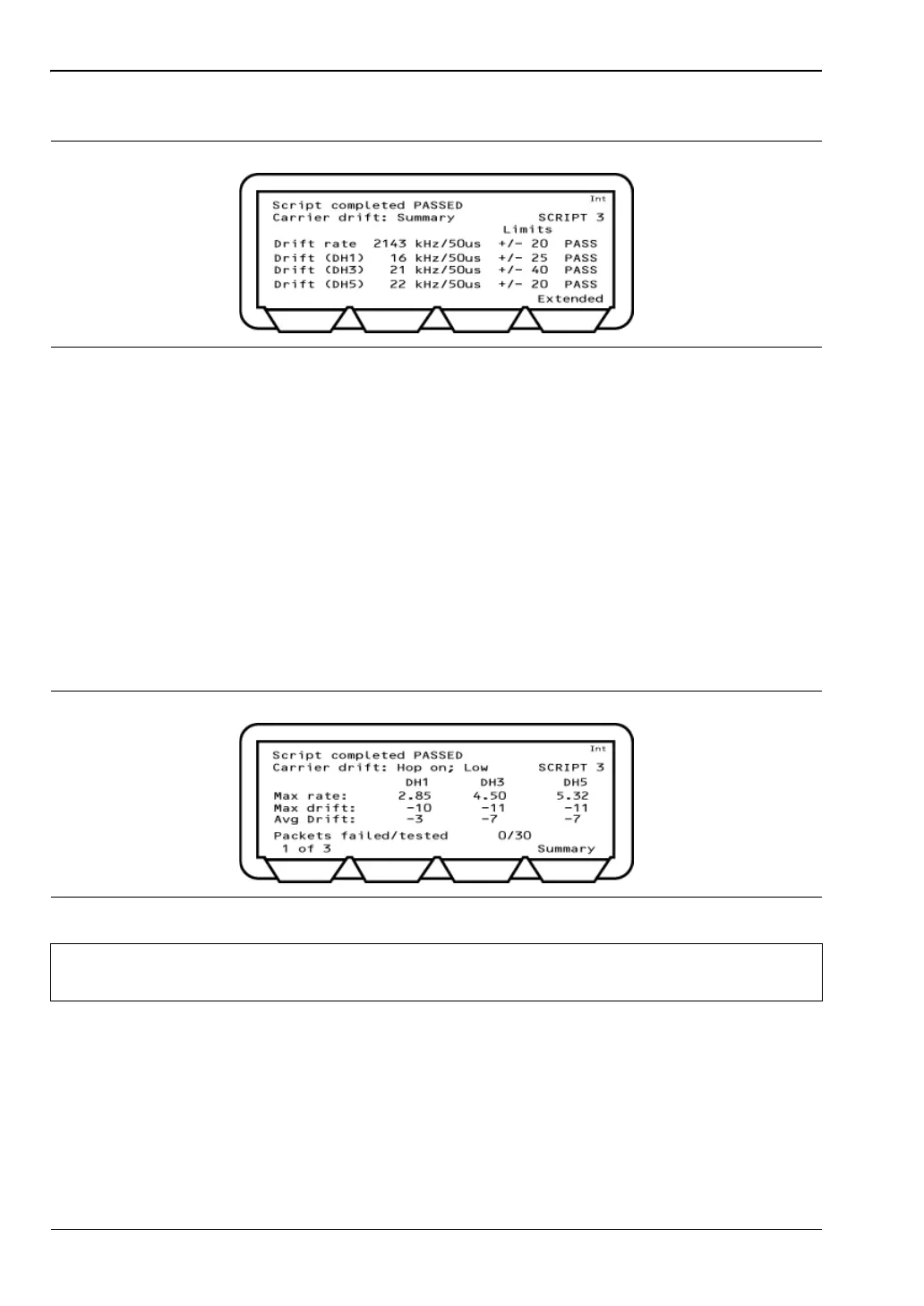

Figure 7-17. Carrier Drift Results
Figure 7-18. Carrier Drift Extended Results
Note
“Packets Tested” refers to the total of all packets tested (i.e., at DH1, DH3, and
DH5).
