7 Hybrid tracking

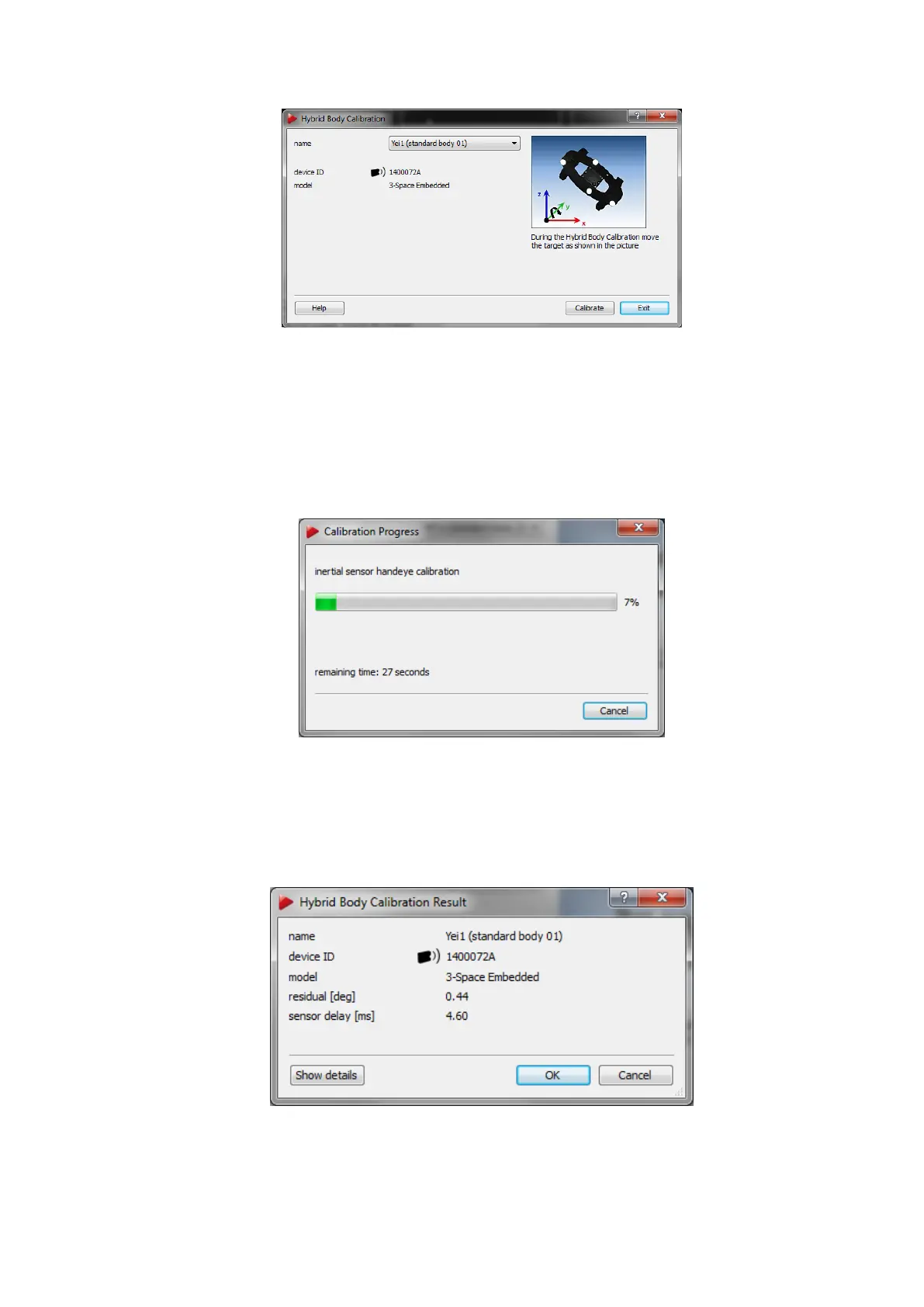

Figure 7.9: Hybrid Body Calibration
speed around all axes of the inertial sensor (please refer to the animation in the dialogue
see figure 7.9 on page 116). After the countdown disappears the upcoming dialogue will
show the status of the calibration via a progress bar (see figure 7.10 on page 116.)
Figure 7.10: Hybrid Body Calibration - Progress Bar
In the upcoming result window (see figure 7.11 on page 116) the residual of the calibration
and the sensor delay of the inertial tracking data is displayed.
Figure 7.11: Hybrid Body Calibration Result
116
