Chapter 9
9.4 Synchronization

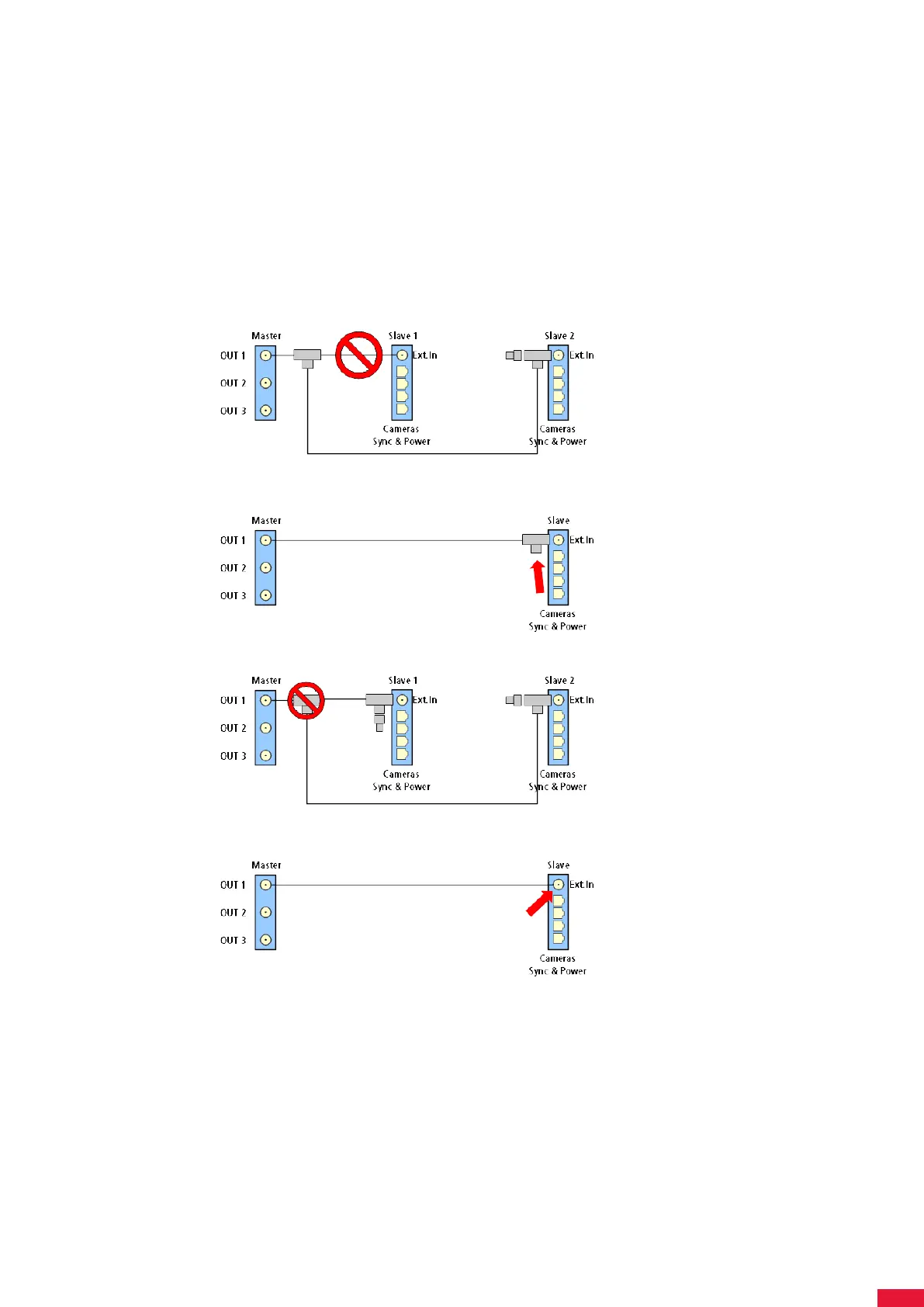

1. Check the cabling (hardware issue):
• Please make sure that the coaxial cables are not damaged.
• Take care of using the correct ports:
– EXT.In: input of the external synchronization (slaves)
– OUT1: output for synchronization of slave controllers (Do not use OUT2 or
OUT3 !)
• Double-check if no extensions between slave controller and terminating resistor
have been made.
• Double-check if the terminating resistor is missing at the end of the signal line.
• Splitting of the synchronization line is not allowed.
• Do not connect the cable directly to the slave controller.
2. Check the cascade settings (software issue):
• Go to Settings → Cascaded System and double-check the attached slave con-
trollers. Please refer to chapter 5.4 on page 66.
• In case of simultaneous external synchronization, please install the synchro-
nization on the master controller according to the instructions for ARTTRACK5 and
TRACKPACK/E systems. Please refer to chapter 5.1 on page 55.
197
