9 Frequently asked questions (FAQ)
How do I guide the synchronization cables correctly in cascaded systems ?

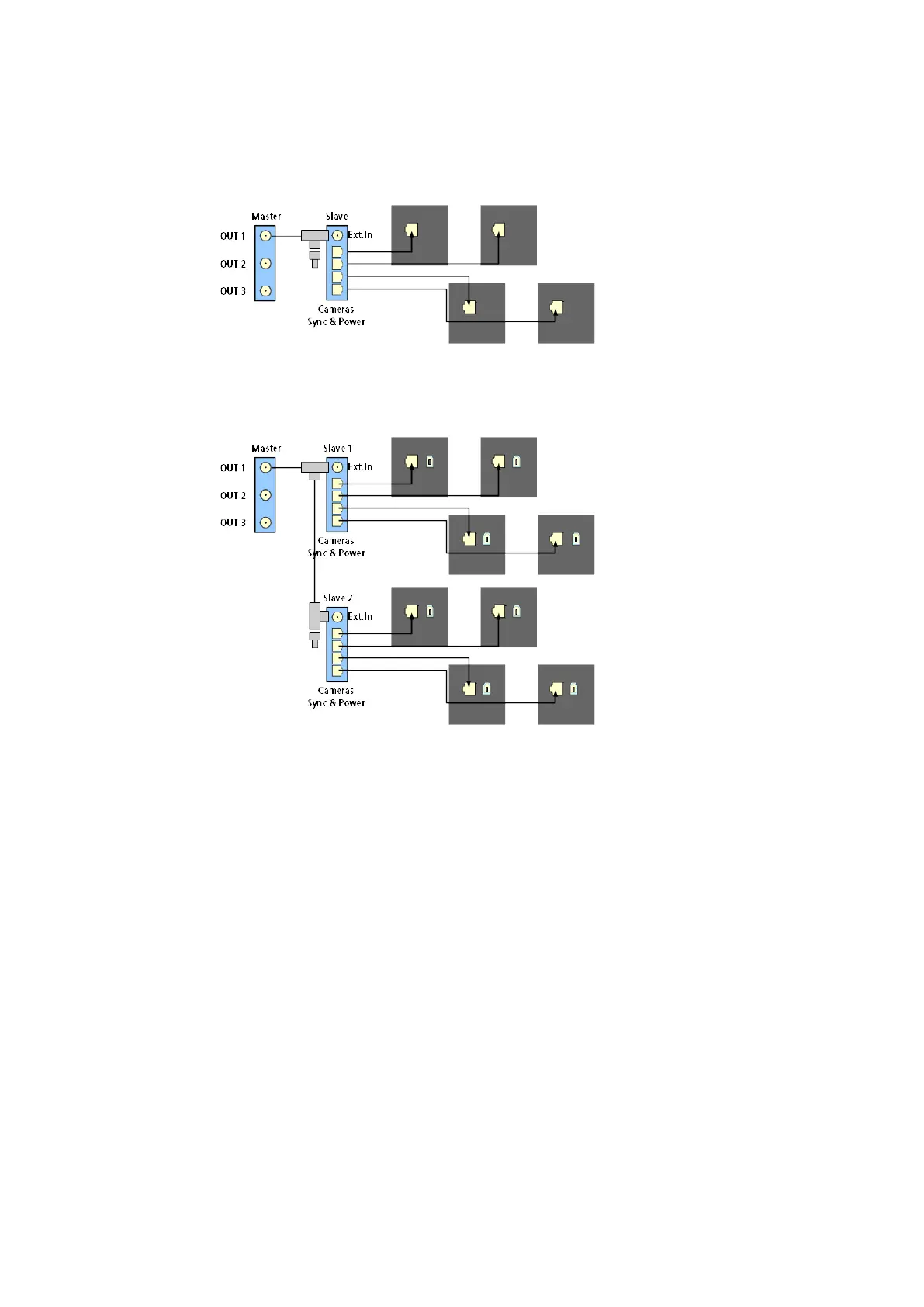

• When using one TRACKPACK/E master and one TRACKPACK/E slave controller
the correct cabling would look as follows:
• When using one ART Controller as master and two TRACKPACK slave controller
the correct cabling would look as follows:
Synchronization failed in ARTTRACK 2 & 3 systems (discontinued)
Here we have to distinguish between hardware issues (camera and external synchroniza-
tion) and software issues:
1. Check the cabling (hardware issue):
• Please make sure that the cables themselves are not damaged.
• Take care of using the correct ports:
– OUT1 to OUT3: synchronization of the cameras
– EXT.In: input of the external synchronization
• Double-check if no extensions between camera and terminating resistor have
been made.
