38477BA2B
2 – 148 25.5.09
2 Installation Volume 2

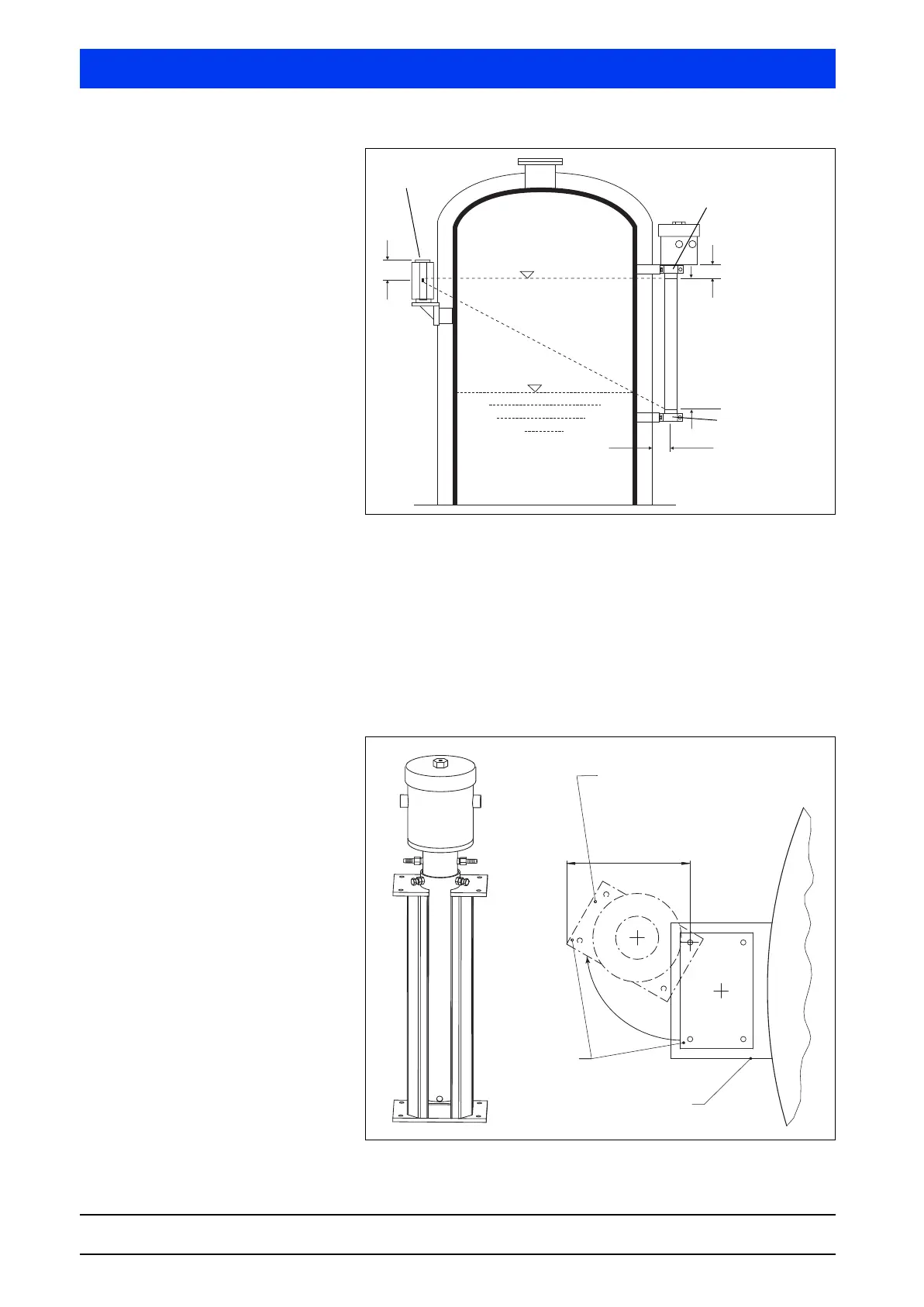

Figure 2-2 Rod detector installation, example with point source
Rod detector with detector shielding (collimator), with and with-
out water cooling
Due to the weight of the collimator, a mounting foot has to be used
which will carry the detector with collimator. In addition, an
anti-tipping device has to be installed at the upper flange of the
collimator, see technical drawings in the sections 6.2.7 and 6.2.8
on page 2–260. Otherwise, the installation has to be carried out as
shown in Figure 2-2.
Figure 2-3 Installation proposal for rod detector with collimator
Min
Max
134 mm
G
»100 mm
sensitive detector length
empfindliche Detektorlänge
Point sources
top fixing clamp
bottom fixing clamp
We recommend to foresee
installation/deinstallation space
to swivel out of the mounting
foot
Mounting foot
Mounting platform
