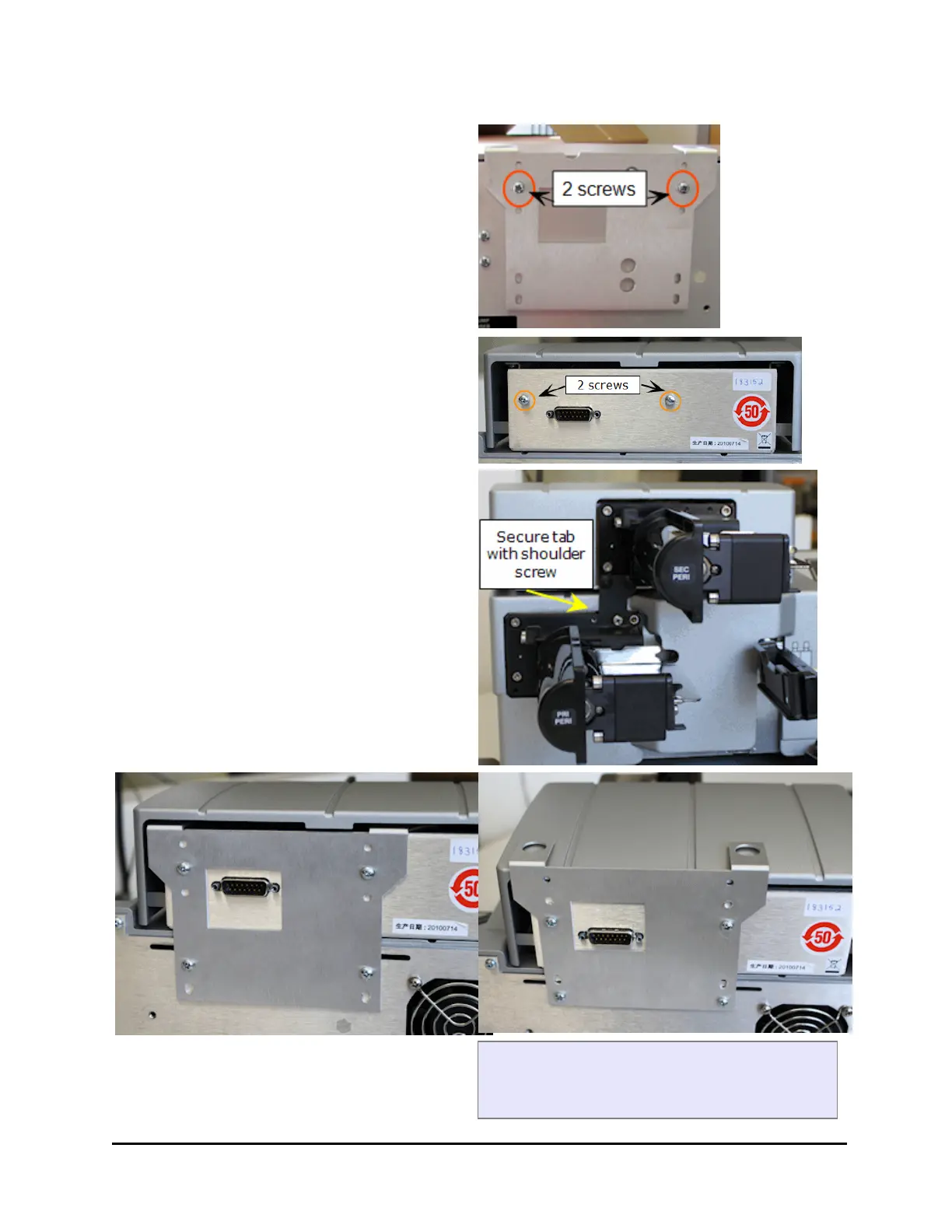

48 | Chapter 2: Installation
1. First, remove the support bracket
stored on the back of the instrument.
It will be used to secure the
dispenser on top of the instrument.
Remove the two screws holding the
bracket in place.
2. Two more screws needed for the
installation are shipped on the back
of the Peri-pump unit. Remove the
two screws and keep with the
bracket.
3. Place the second Peri-pump unit on
top of the dispenser.
4. Position the dispenser so the screw
hole in the small tab or stainless-
steel bracket attached to its front
aligns with the right-hand screw
hole on the primary Peri-pump or
cover plate.
5. Use the Philips screwdriver to fully
tighten the shoulder screw to ensure
the unit is secured.
6. On the back of the instrument,
secure the Peri-pump unit in place
The support bracket can be installed two
ways, to provide foot holds for a Syringe
dispenser module, or not.
MultiFlo™ FX Multi-Mode Dispenser
