■ Optional output tray

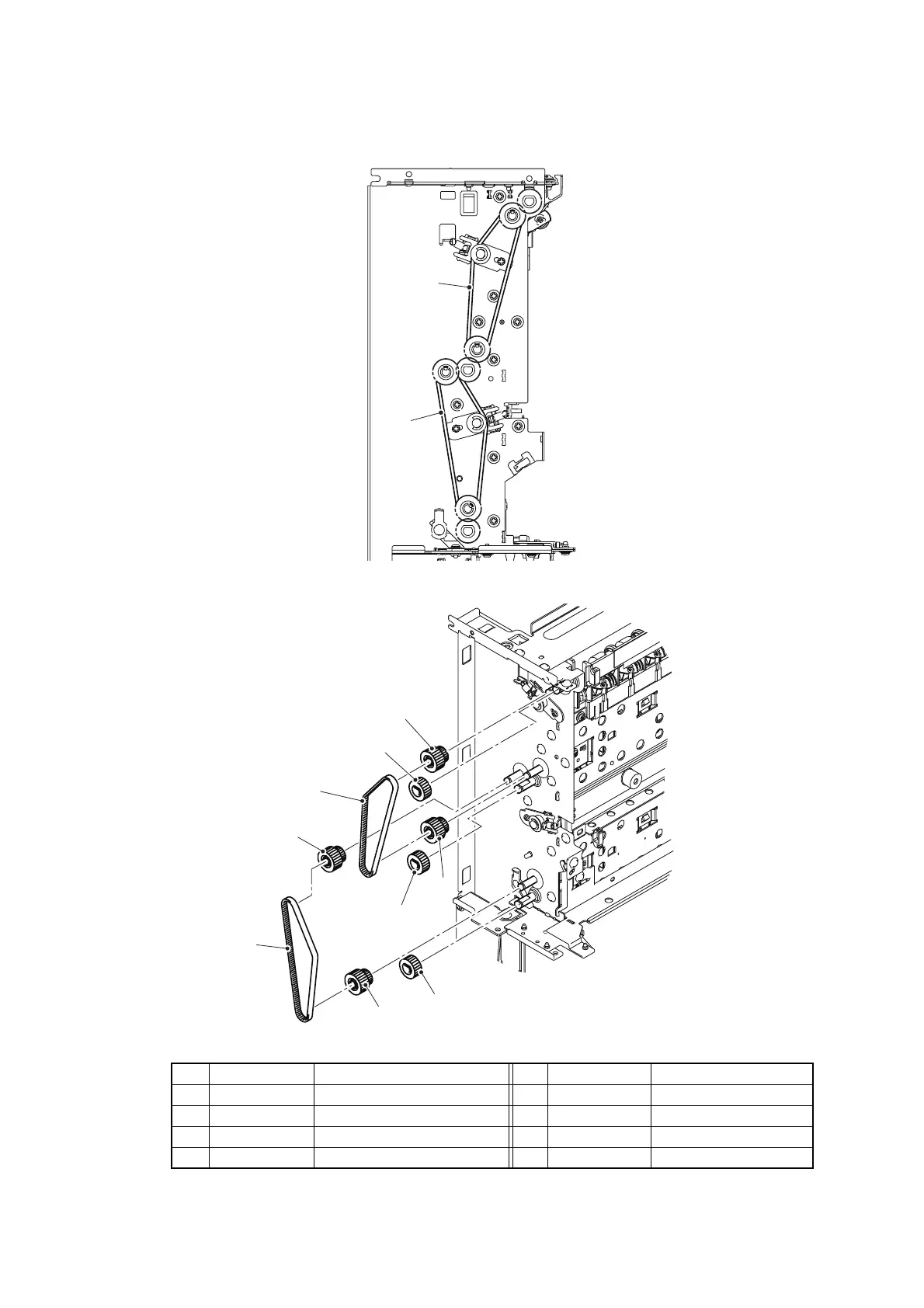

<Layout view>
<Development view>
<Name of gears>
* These parts are subject to change without notice.
1 LEB839001 Eject roller 6 gear 6 LEB839001 Eject roller 5 gear
2 LM3281001 Gear pulley 15/20 7 LEB838001 Eject belt 2
3 LEB838001 Eject belt 1 8 LM3281001 Gear pulley 15/20
4 LM3281001 Gear pulley 15/20 9 LEB839001 Eject roller 4 gear
5 LM3281001 Gear pulley 15/20
