4-12
Confidential
2.5 Adjustment of Print Start Position
(Maintenance Mode: Code 68)
(1) Set A4 or Letter size paper into the paper tray.
(2) Press the 6 and 8 buttons in this order in the initial state of the maintenance mode.
"1.PIN CHK HD ADJ" is displayed on the LCD.
(3)
Press the button to display "
2.PRINT POS ADJ
" on the LCD and press the
OK
button.
"2.1 PRINT PTN" is displayed on the LCD.
(4) Press the OK button. The machine displays
"
PRINTING
"
on the LCD and prints the print
start position adjustment pattern as shown in the next page.

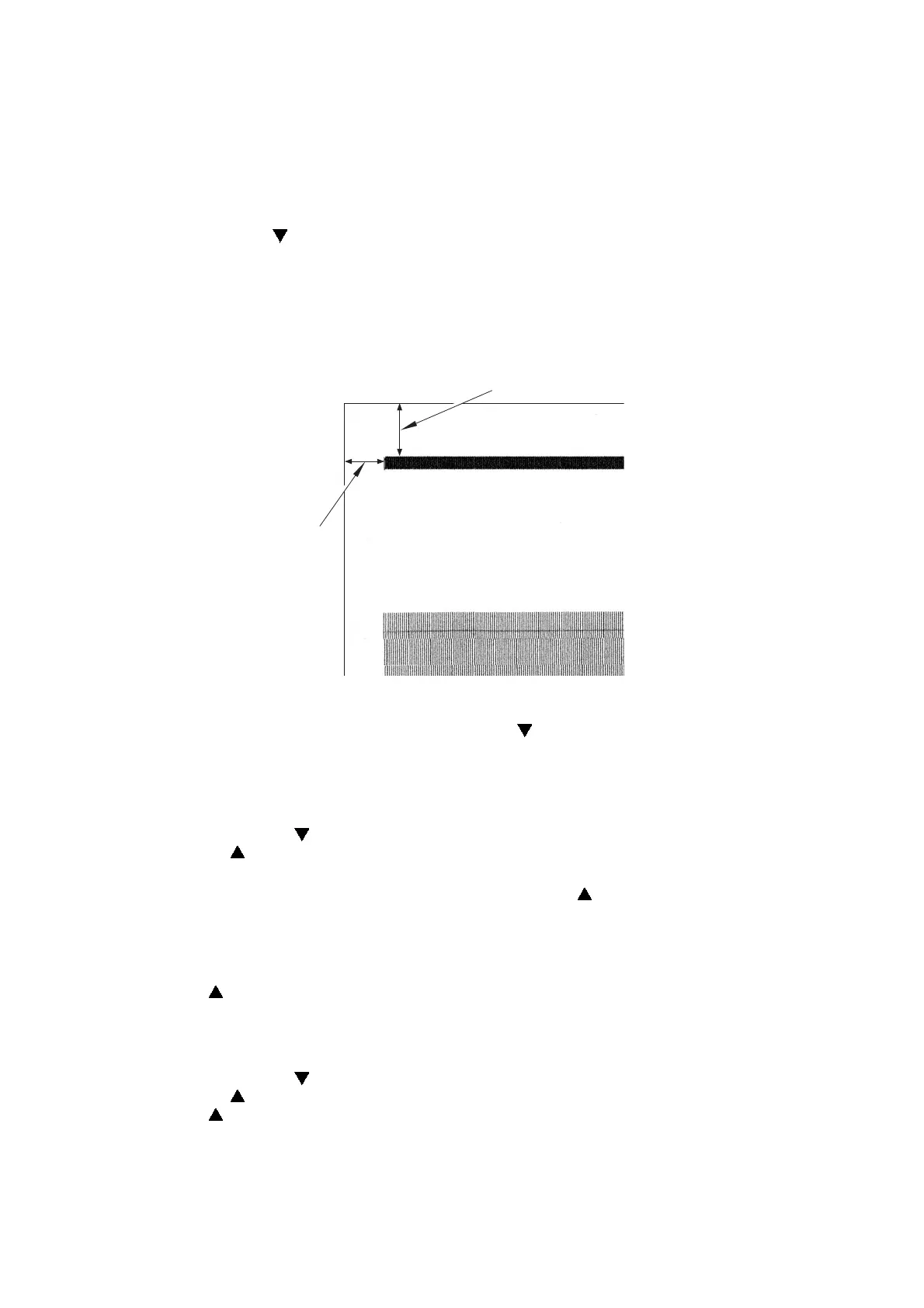

(5) For the left margin adjustment, measure and record the distance between the left end of
the pattern "A" and the left end of the paper. For the top margin adjustment, measure and
record the distance between the top end of the pattern "A" and the top end of the paper.
Fig. 4-5
(6) When the machine finishes printing the print start position adjustment pattern, "2. 1
PRINT PTN" appears on the LCD. Press the button to display "2.2 ADJUST" on the
LCD, and press the OK button. "GRADCHK 1.OK 2.NG" is displayed on the LCD.
(7) Press the 1 button. Display "LR Adjust=10.0" on the LCD to activate the "Input margin
adjustment" screen.
(8) Enter the left margin adjustment value first.
Pressing the button decreases the value displayed on the LCD, and pressing
the button increases the value.
In the case of Letter size paper
For example, if the measured value is 11.0, press the button repeatedly to display
"LRAdjust=11.0" on the LCD and press the OK button.
In the case of A4 size paper
Input the measured value +3 mm (the difference in the width between Letter size paper
and A4 size paper) in the machine. For example, if the measured value is 11.0, press the
button repeatedly to display "LRAdjust=14.0" on the LCD and press the OK button.
The left margin adjustment value is input and the machine displays "Edge Adjust=10.0"
on the LCD.
(9) Enter the top margin adjustment value.
Pressing the button decreases the value displayed on the LCD, and pressing
the button increases the value. For example, if the measured value is 9.5, press the
button 5 times to display "EdgeAdjust=9.5" on the LCD and press the OK button. The
top margin adjustment value is input and the machine returns to the initial state of the
maintenance mode.
A
To p m a r g i n
Left margin
To Next Page
