Brother HL-S7000DN - 11.4 LT Front Cover

3-125
Confidential
11.4 LT Front Cover
(1) Remove the two Taptite cup S M3x6 SR screws.
(2) Release the three Hooks A of the LT front cover from the LT frame unit.
(3) Using the Hook B of the LT front cover as a pivot point, rotate the LT front cover in the
direction of the arrow 3a to remove it.

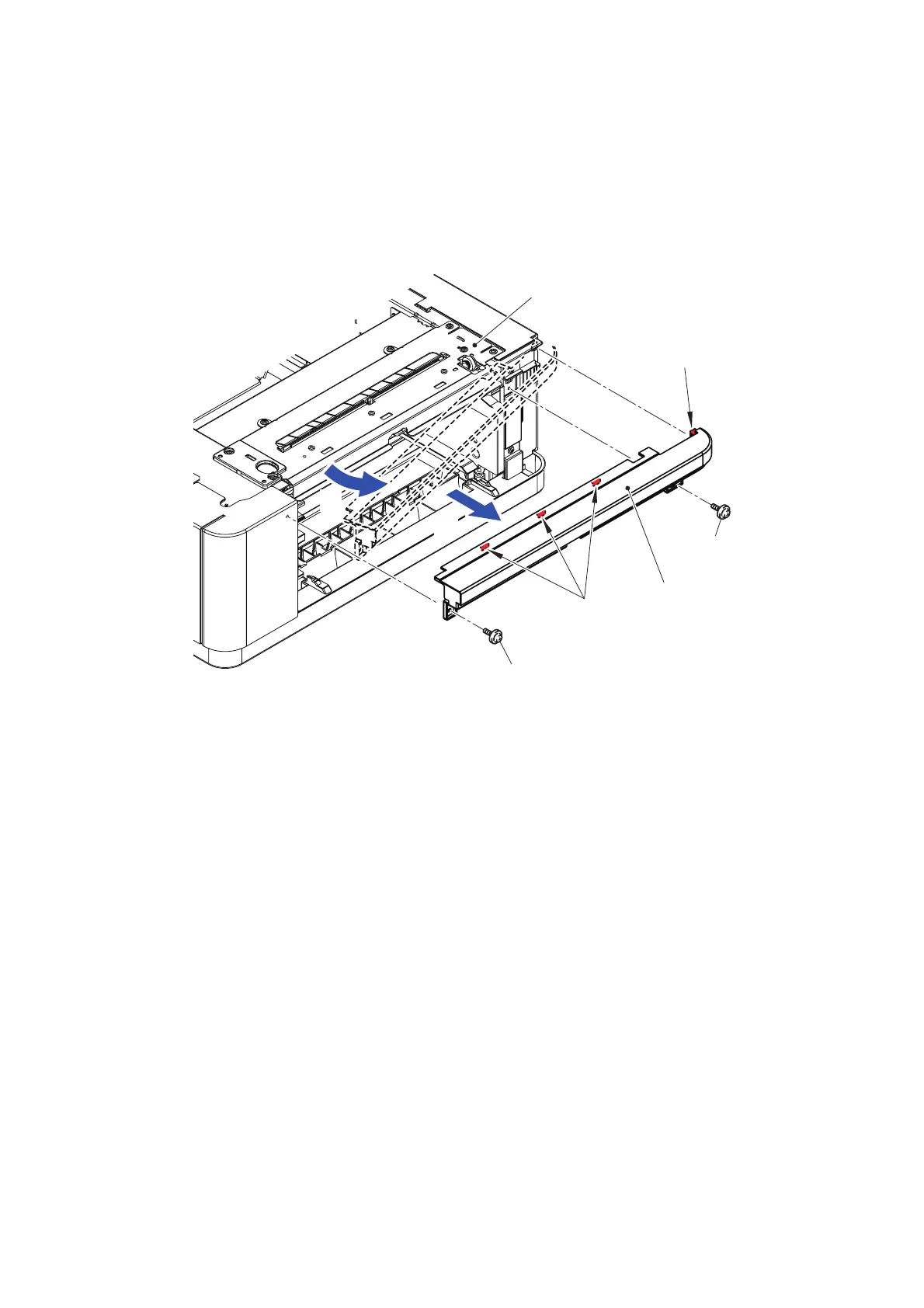

Fig. 3-149
Hook A
Hook B
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
3b
3a
<Front>
LT frame unit
LT front cover
