10.27 Speaker Unit

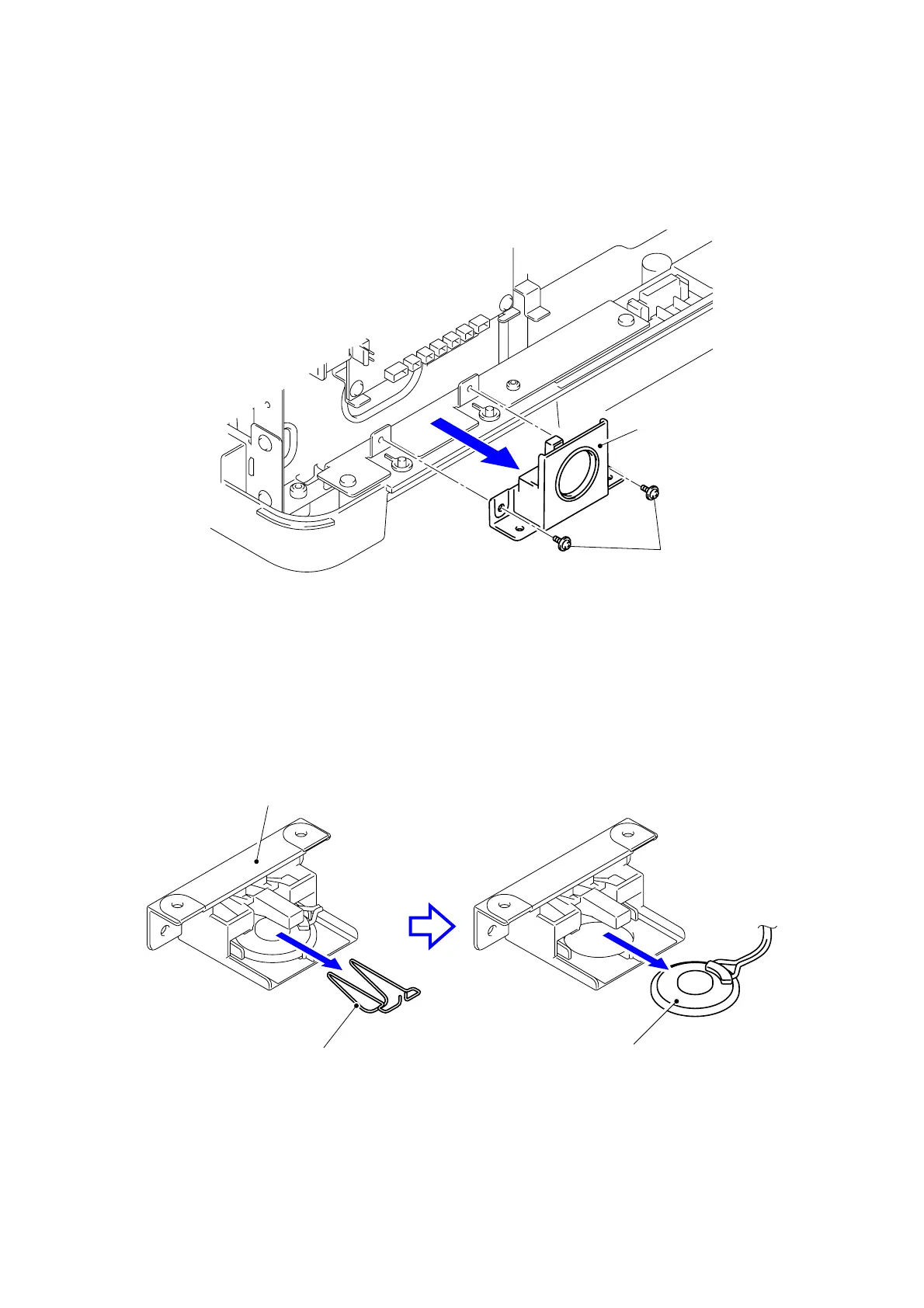

(1) Remove the two Taptite cup S M3x6 SR screws to remove the Speaker holder.
Fig. 3-121
(2) Remove the Speaker spring from the Speaker holder to remove the Speaker unit.
Fig. 3-122
Taptite cup S M3x6 SR
Speaker holder
<Right side>
Speaker unit
Speaker holder
Speaker spring
