10.10.2 Panel PCB ASSY/LCD ASSY

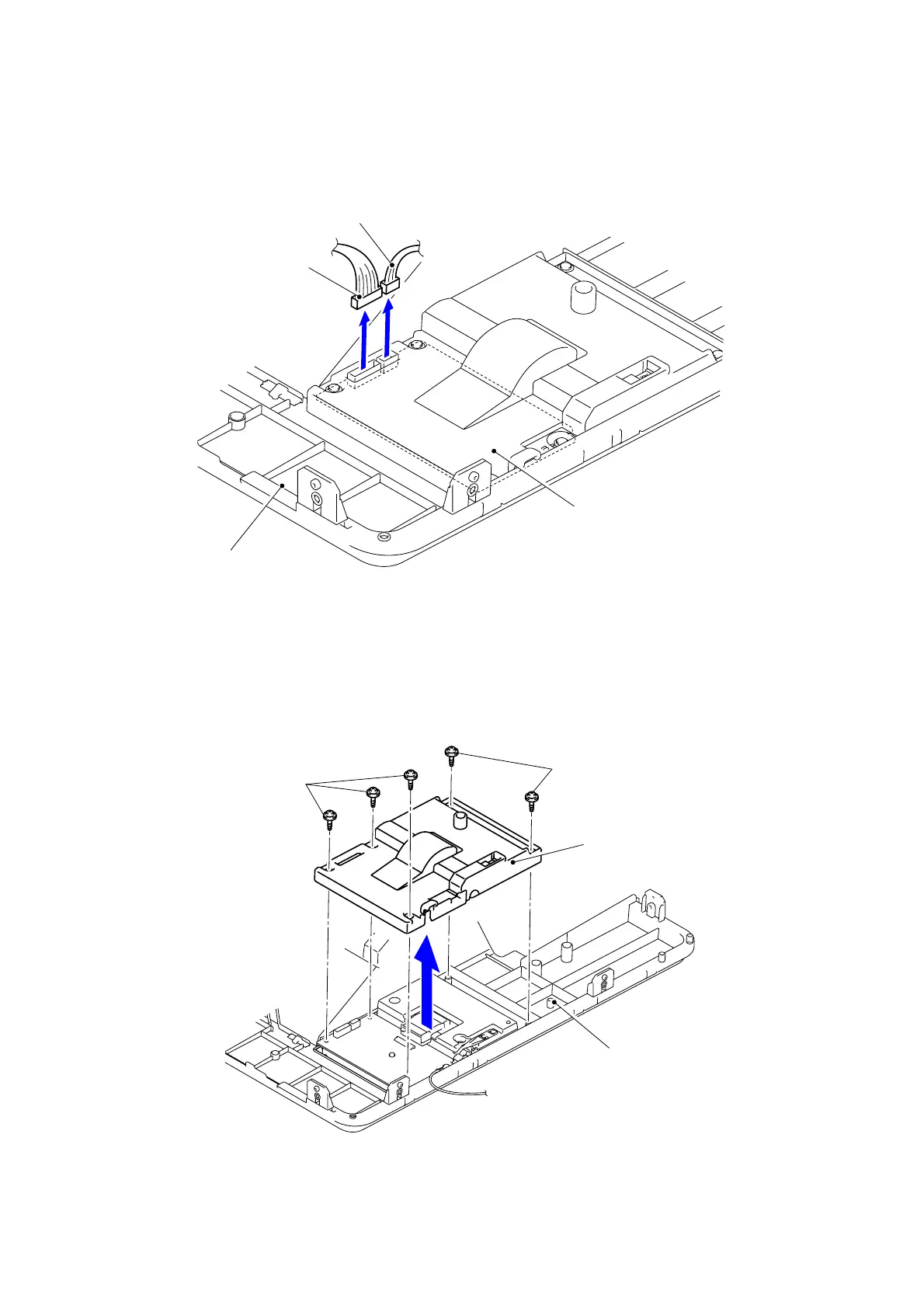

(1) Remove the LED PCB harness and Panel PCB harness from the Panel PCB ASSY.
Fig. 3-31
(2) Remove the five Taptite cup B M3x8 screws to remove the Panel rear cover from the Top
cover ASSY.
Fig. 3-32
LED PCB harness
Panel PCB harness
Panel PCB ASSY
Top cover ASSY
Taptite cup B M3x8
Taptite cup B M3x8
Panel rear cover
Top cover ASSY
