Brother HL-S7000DN Service Manual

3-21
Confidential

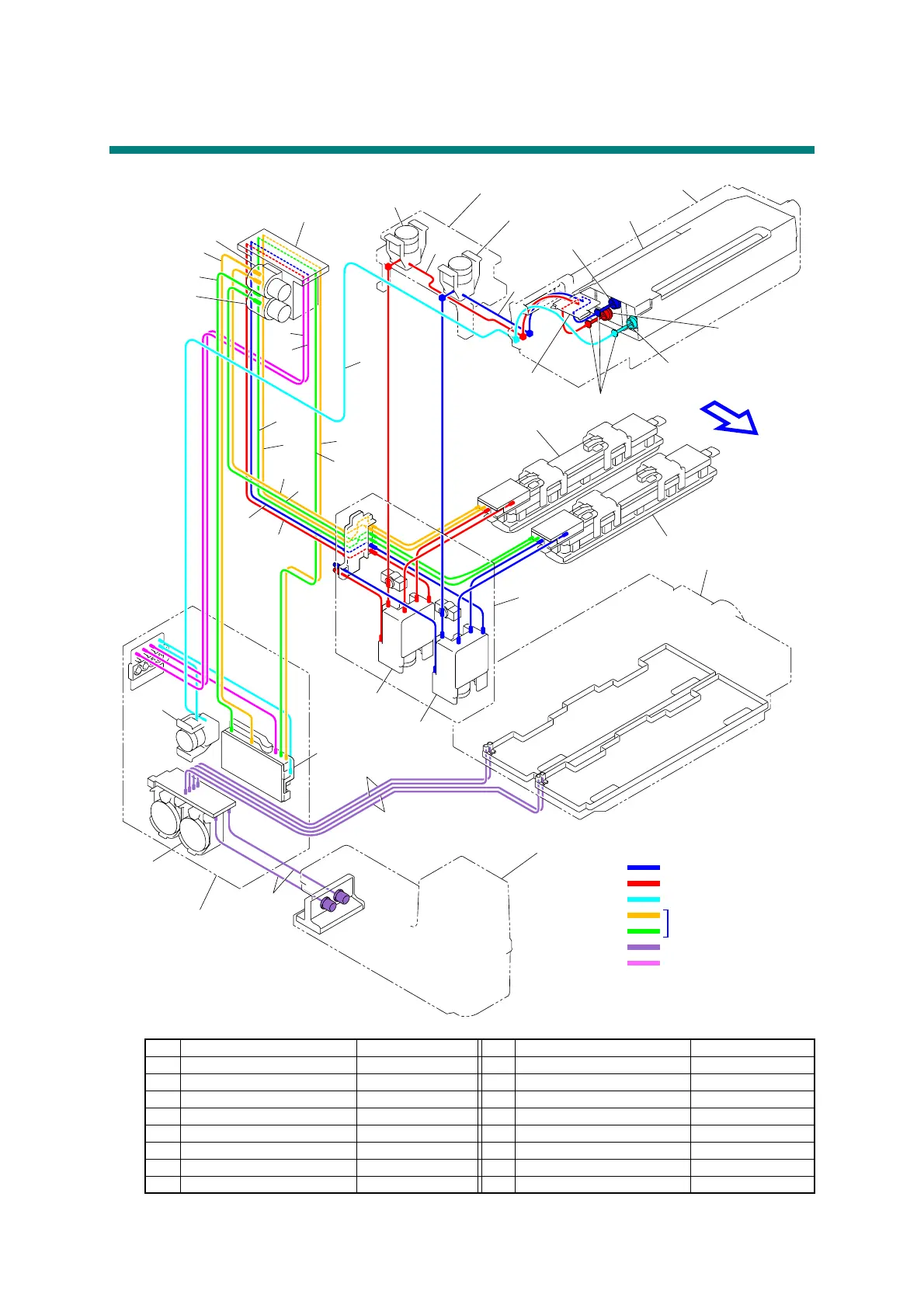

8. TUBE DIAGRAM
1 Humid tube BK GO B LEB739001 10 Sub tank tube BK B LEB744001
2 Humid tube FG GO B LEB742001 11 Humid tube BK GO A LEB723001
3 Humid tube BK RTN A LEB737001 12 Humid tube FG GO A LEB724001
4 Humid tube FG RTN A LEB740001 13 PF waste tube D LEC073001
5 Sub tank tube FG A LEB745001 14 PF waste tube E LEC074001
6 Sub tank tube BK A LEB743001 15 Waste ink box tube LEB695001
7 Humid tube BK RTN B LEB738001 16 Supply tube BK LEB755001
8 Humid tube FG RTN B LEB741001 17 Supply tube FG LEB756001
9 Sub tank tube FG B LEB746001 18 Water in tube A LEB719001
11
12
10
9
16
17
18
1
2
3
4
7
8
5
6
14
13
15
Ink refill unit
Cartridge
Pre-coat ink valve
Pre-coat supply
Supply pump unit
Ink supply pump
Humidify unit
Humidify pump 1
Humidify
Ink valve
Water valve
Needle
Front
Filter
Ink head
Pre-coat head
Sub tank ASSY
Platen unit
Ink sub tank
Pre-coat ink sub tank
Water tank
Waste
Drive frame ASSY
Waste ink box
: Pre-coat ink
pump
: Ink
: Water
: Waste ink
pump unit
Water
pump
pump 2
: Moisture
: Air

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
