11.7 ID switch ASSY
(1) Disconnect the wiring of the ID switch harness.
(2) Remove the Taptite cup S M3x8 SR screw.
(3) Release the two Hooks to remove the ID switch holder from the LT frame R.

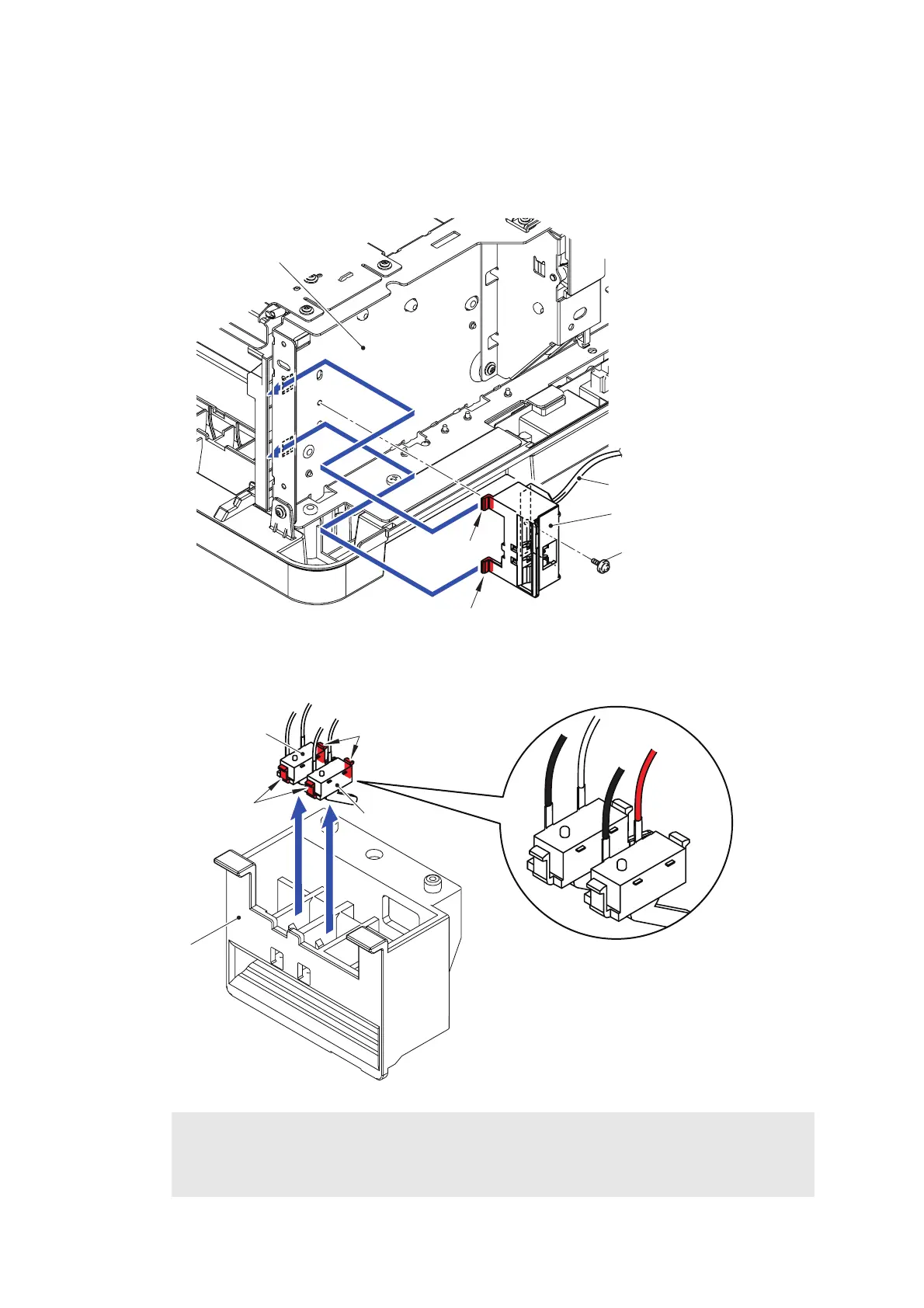

Fig. 3-154
(4) Release the two Hooks of the ID switch ASSY to remove the ID switch ASSY from the ID
switch holder. Remove another ID switch ASSY in the same procedure.
Fig. 3-155
Assembling Note:
Be sure to install the red and black harness to the upper side and install the white and black
harness to the lower side when you install the ID switch ASSY to the ID switch holder.
If they are installed upside down, the ID number cannot be read correctly.
Taptite cup S M3x8 SR
ID switch holder
Hook
Hook
ID switch harness
LT frame R
<Front>
Hook
Hook
<Upper side>
ID switch ASSY
ID switch holder
ID switch ASSY
