10.24 Buffer Tank ASSY

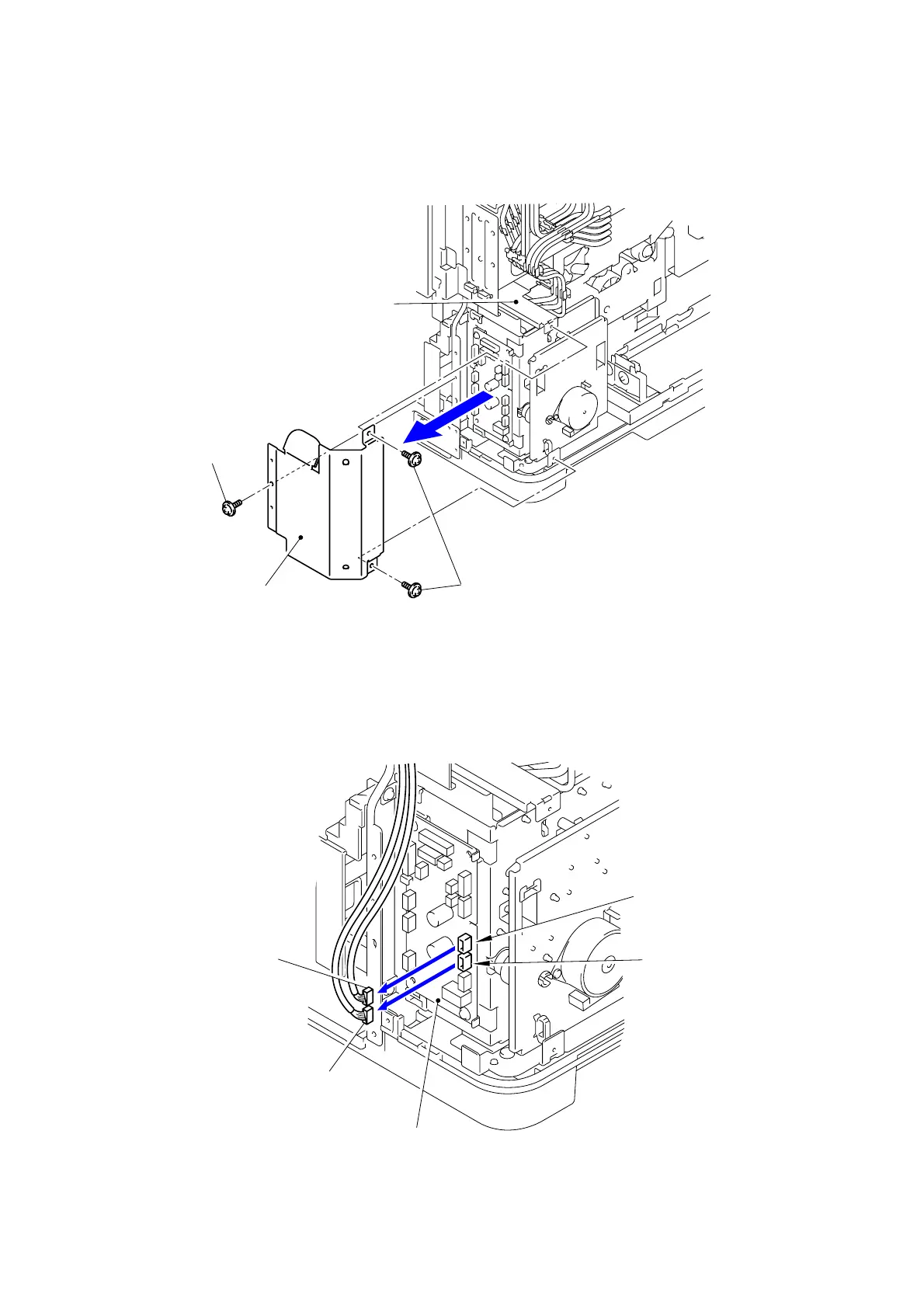

(1) Remove the three Taptite cup S M3x6 SR screws to remove the Cover frame rear L.
Fig. 3-103
(2) Disconnect the two Connectors of the Water pump from the Maintenance drive PCB
ASSY.
Fig. 3-104
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Cover frame rear L
Tube clamp bracket
Maintenance drive PCB ASSY
Connector
Connector
CN3
CN4
