11.15 Paper feed jam actuator

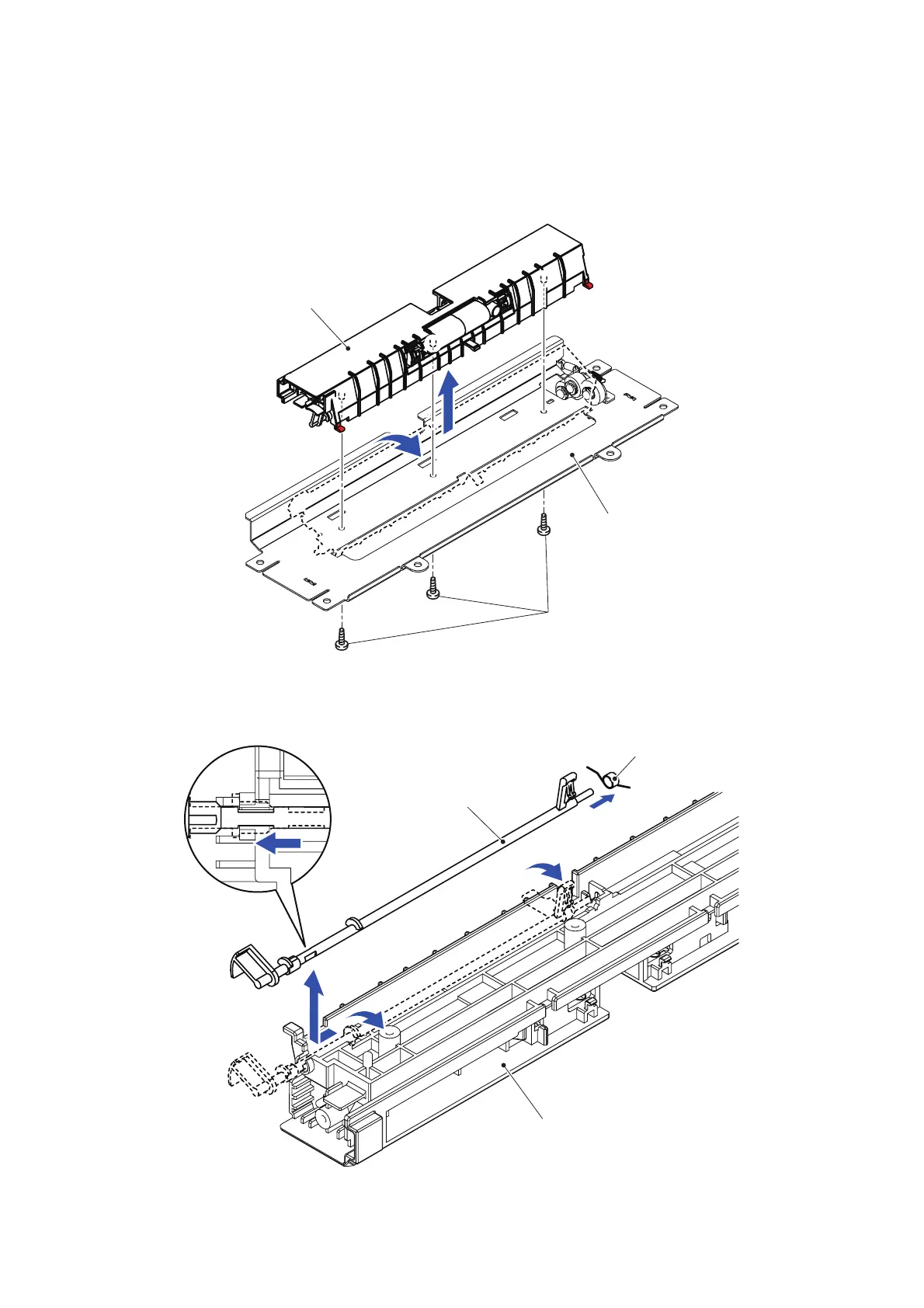

(1) Remove the three Taptite cup B M3x8 screws from the LT beam F.
(2) Rotate the Outer chute ASSY in the direction of the arrow 2a to remove it from the LT
beam F.
Fig. 3-175
(3) Remove the Paper feed jam actuator and LT actuator spring from the Outer chute ASSY.
Fig. 3-176
LT beam F
Taptite cup B M3x8
2a
2b
Outer chute ASSY
Outer chute ASSY
Paper feed jam actuator
LT actuator spring
3a
3b
3a
3c
