10.22 Supply Pump ASSY/Sub Tank ASSY
(1) Disconnect the wiring of the Engine PCB base plate.

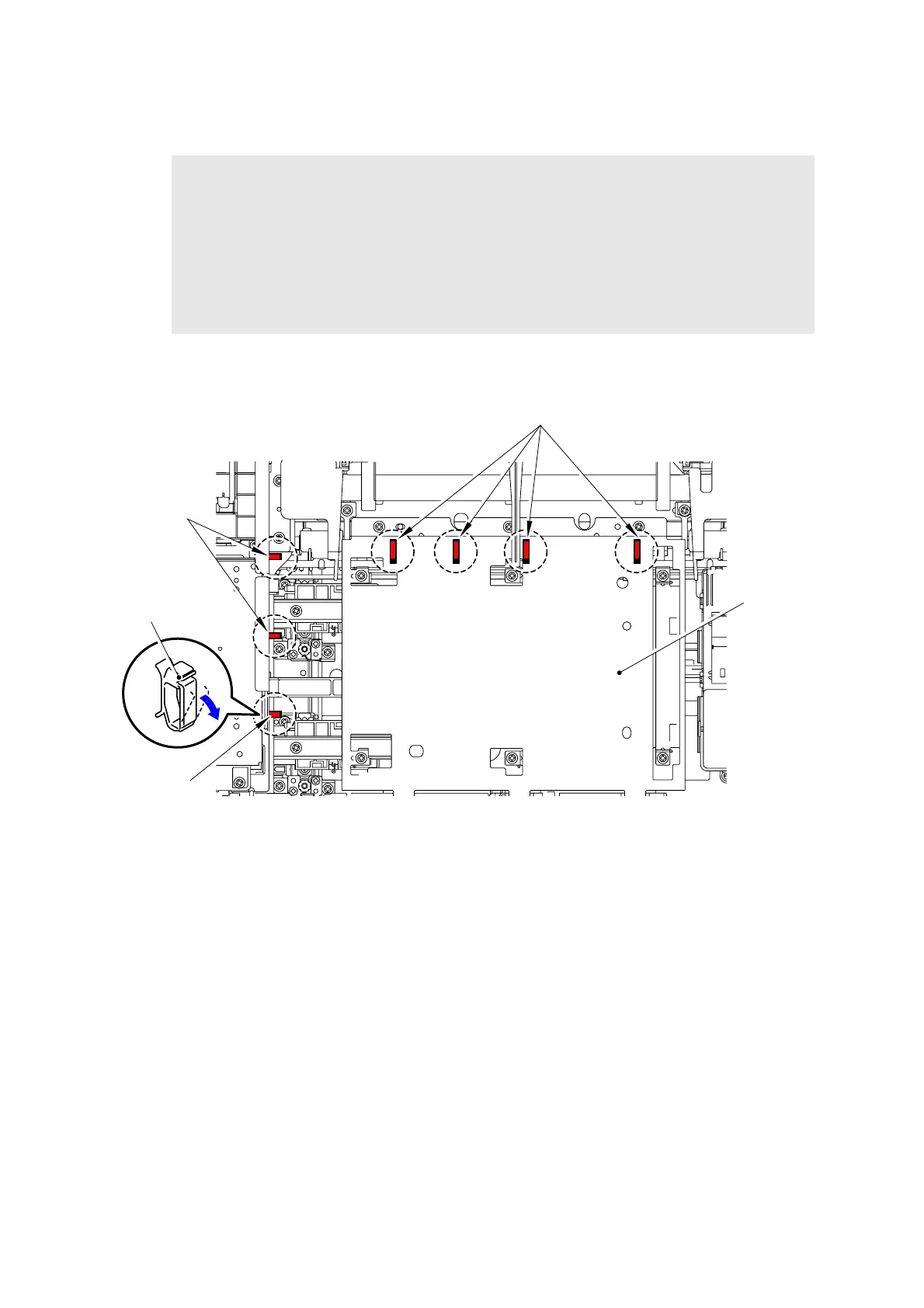

Fig. 3-73
Note:
- Be sure to replace the Supply pump ASSY and Sub tank ASSY at the same time. If they
are replaced separately, it will cause ink leakage at the time of the replacement.
- Be sure to execute Maintenance 18 and remove Ink and Pre-coat ink before perform the
replacement operation. (Refer to Chapter 5, "1.4.7 Individual operation of each unit
(Function code 18))
- When replacing the Supply pump ASSY, if the Supply valve ASSY has only one Valve
ASSY, be sure to replace the Supply valve ASSY as well.
Clamp
Clamp
Clamp
Clamp
Engin PCB
base plate
