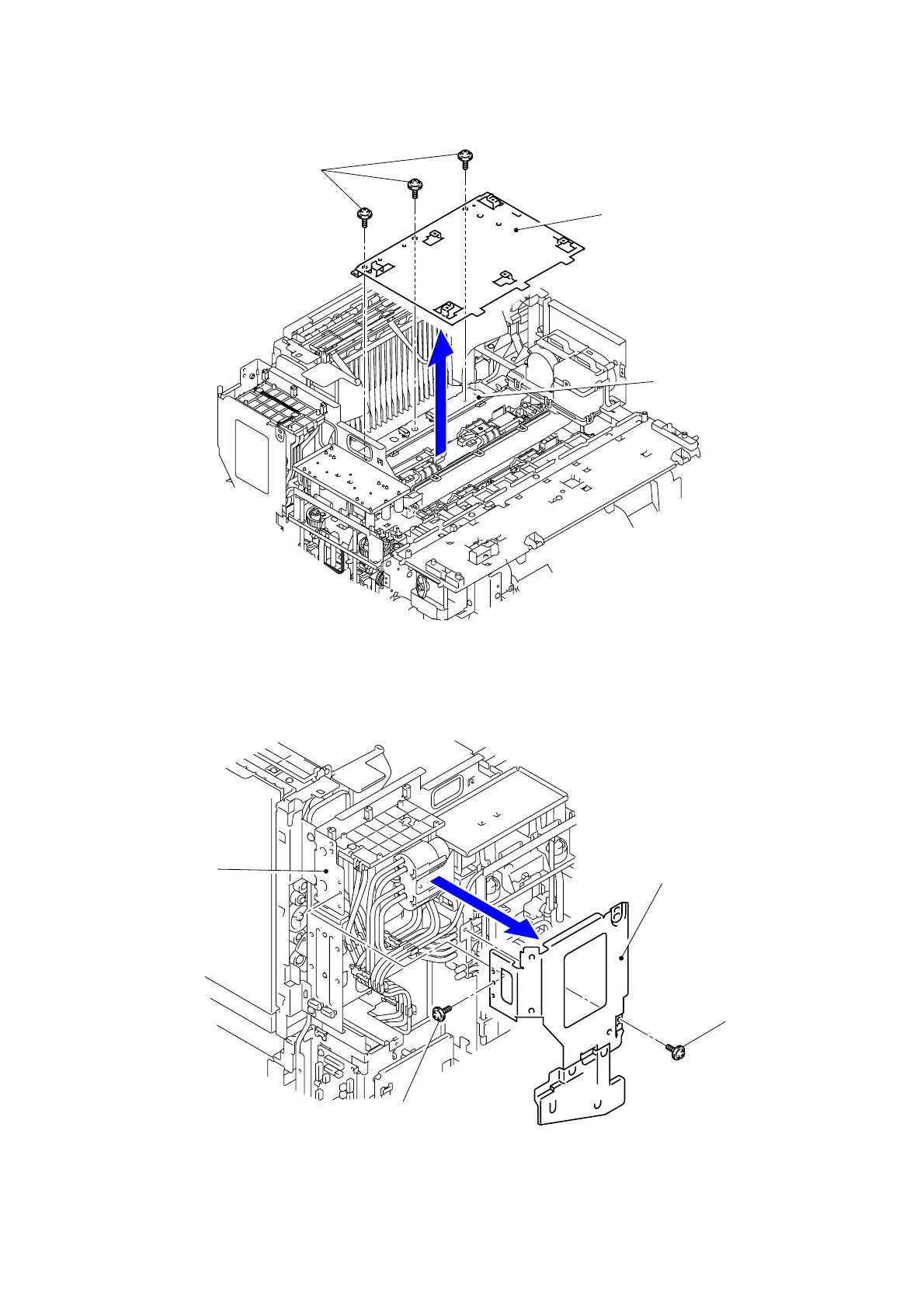

(2) Remove the three Taptite cup S M3x6 SR screws to remove the Engine PCB base plate.
Fig. 3-74
(3) Remove the two Taptite cup S M3x6 SR screws to remove the Sub CR frame rear L.
Fig. 3-75
Taptite cup S M3x6 SR
<Front>
Engine PCB base plate
CR frame unit
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Sub CR frame rear L
<Back side>
Sub CR frame L
